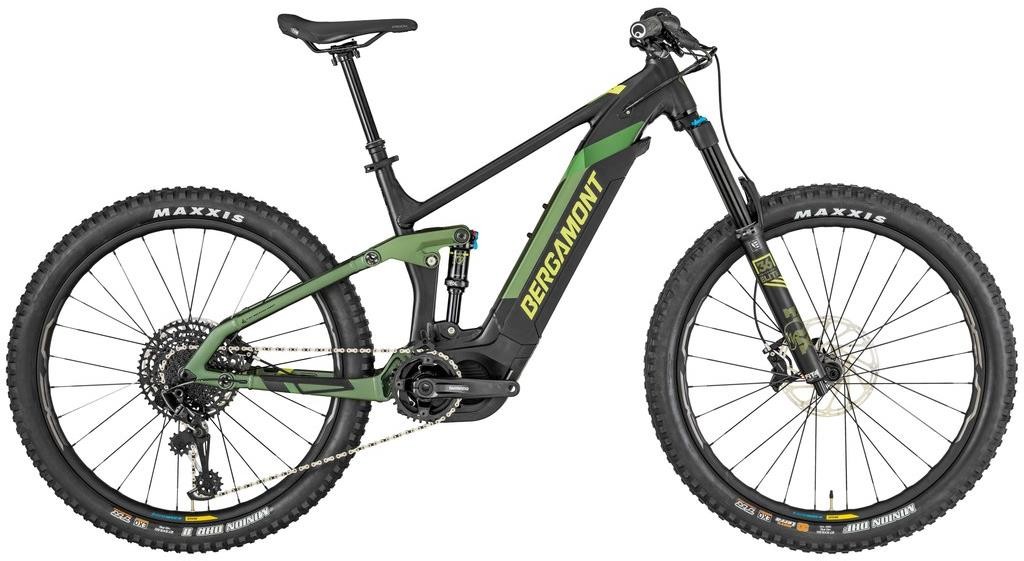

Bergamont E-Trailster Elite 27.5" 2019 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 29"/27.5" E-MTB, 150mm rear travel, AL-6061 ultra lite tubing, 4-link design, flip chip geometry adjustment, internal cable routing, Intube battery |
| Fork | Fox 36 Float Performance Elite, tapered, 160mm, E-Chassis, 3-position micro adjust, 15x110mm axle |
| Rear Shock | Fox Float Performance, 3 Pos Lever, LV EVOL, length x stroke: 185x55mm, Trunnion, hardware: 45x8mm |
| Headset | Acros AZX-212, A-Headset, semi-integrated, tapered, with cup for geometry adjustment |
| Stem | Syncros FL2.0, 50mm |
| Bars | Syncros FL2.0, riserbar, rise: 12mm, width: 760mm |
| Front Brake | Sram Code R, hydraulic disc brake, 4-piston, Centerline rotor: 200/200mm |
| Rear Brake | Sram Code R, hydraulic disc brake, 4-piston, Centerline rotor: 200/200mm |
| Brake Lever | Sram Code R, hydraulic disc brake |
| Front Mech | Mavic E-XA Elite wheelset, 6-bolt, disc, 15x110mm axle |
| Rear Mech | Mavic E-XA Elite wheelset, 6-bolt, disc, 12x148mm axle |
| Shifters | Sram GX Eagle, 1x12-speed, trigger-shifter, single click |
| Speed | 12 |
| Rims | Mavic E-XA Elite wheelset, disc, eyelets, width: 30mm |
| Front Hub | Mavic E-XA Elite wheelset, 6-bolt, disc, 15x110mm axle |
| Rear Hub | Mavic E-XA Elite wheelset, 6-bolt, disc, 12x148mm axle |
| Spokes | Mavic |
| Front Tyre | Maxxis Minion DHF / DHRII , folding, EXO, 120TPI, 27.5x2.60" |
| Rear Tyre | Maxxis Minion DHF / DHRII , folding, EXO, 120TPI, 27.5x2.60" |
| Seat Post | Fox Transfer Performance Elite, dropper post, 150mm (frame size "S": 125mm), remote |
| Saddle | Ergon SM10 E-Mountain Sport |
| Chainset | Sram NX 1230 Eagle, 11-50t |
| Bottom Bracket | Shimano |
| Chain | SRAM NX Eagle |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 504 Wh |
| Motor | Shimano |
| User Interface | Shimano Steps SC-E7000 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Bergamont E-Trailster Elite 27.5" 2019 - Electric Mountain Bike.
This product is no longer available.
