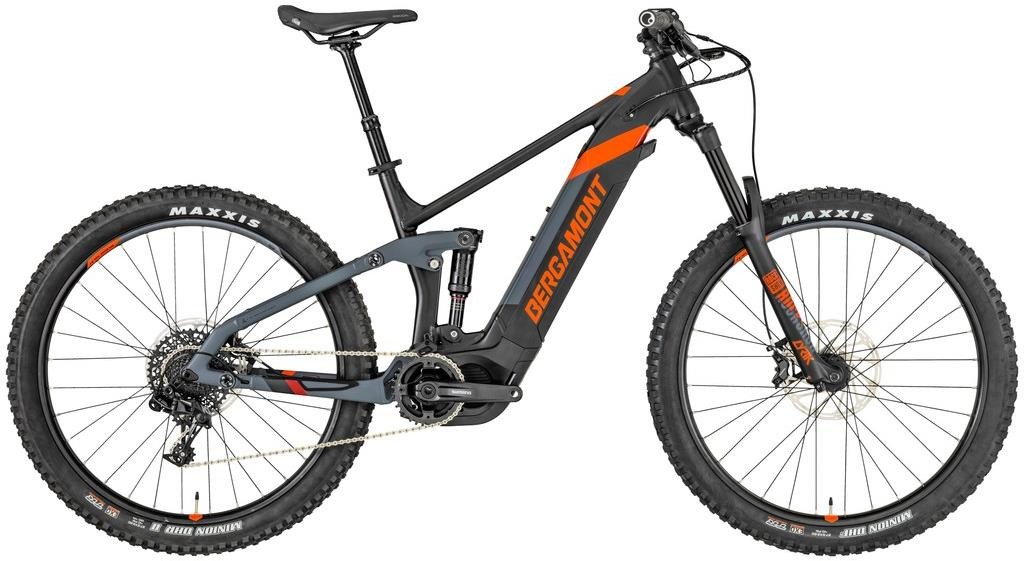

Bergamont E-Trailster Pro 27.5" 2019 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 29"/27.5" E-MTB, 150mm rear travel, AL-6061 ultra lite tubing, 4-link design, flip chip geometry adjustment, internal cable routing, Intube battery |
| Fork | Rock Shox Lyrik RC, Debon Air, E-Ready, tapered, 160mm, 15x110mm axle |
| Rear Shock | Rock Shox Deluxe R, Debon Air, length x stroke: 185x55mm,Trunnion, hardware: 45x8mm |
| Headset | Acros AZX-212, A-Headset, semi-integrated, tapered, with cup for geometry adjustment |
| Stem | Syncros FL2.0, 50mm |
| Bars | Syncros FL2.0, riserbar, rise: 12mm, width: 760mm |
| Front Brake | Sram Guide T, hydraulic disc brake, 4-piston, Centerline rotor: 200/200mm |
| Rear Brake | Sram Guide T, hydraulic disc brake, 4-piston, Centerline rotor: 200/200mm |
| Brake Lever | Sram Guide T, hydraulic disc brake |
| Front Mech | BGM Pro, 6-bolt, disc, 15x110mm axle |
| Rear Mech | BGM Pro, 6-bolt, disc, 12x148mm axle |
| Shifters | Sram NX, 1x11-speed, trigger-shifter |
| Speed | 11 |
| Rims | Sun Ringlé Duroc SD42, disc, eyelets, width: 36mm |
| Front Hub | BGM Pro, 6-bolt, disc, 15x110mm axle |
| Rear Hub | BGM Pro, 6-bolt, disc, 12x148mm axle |
| Spokes | Sapim Leader |
| Front Tyre | Maxxis Minion DHF / DHRII , folding, EXO, 27.5x2.60" |
| Rear Tyre | Maxxis Minion DHF / DHRII , folding, EXO, 27.5x2.60" |
| Seat Post | Syncros 2.0, dropper post, 150mm (frame size "S": 120mm) |
| Saddle | Ergon SM10 E-Mountain Sport |
| Chainset | Sram PG-1130, 11-42t |
| Bottom Bracket | Shimano |
| Chain | Sram PC-1110 |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 504 Wh |
| Motor | Shimano |
| User Interface | Shimano Steps SC-E7000 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
