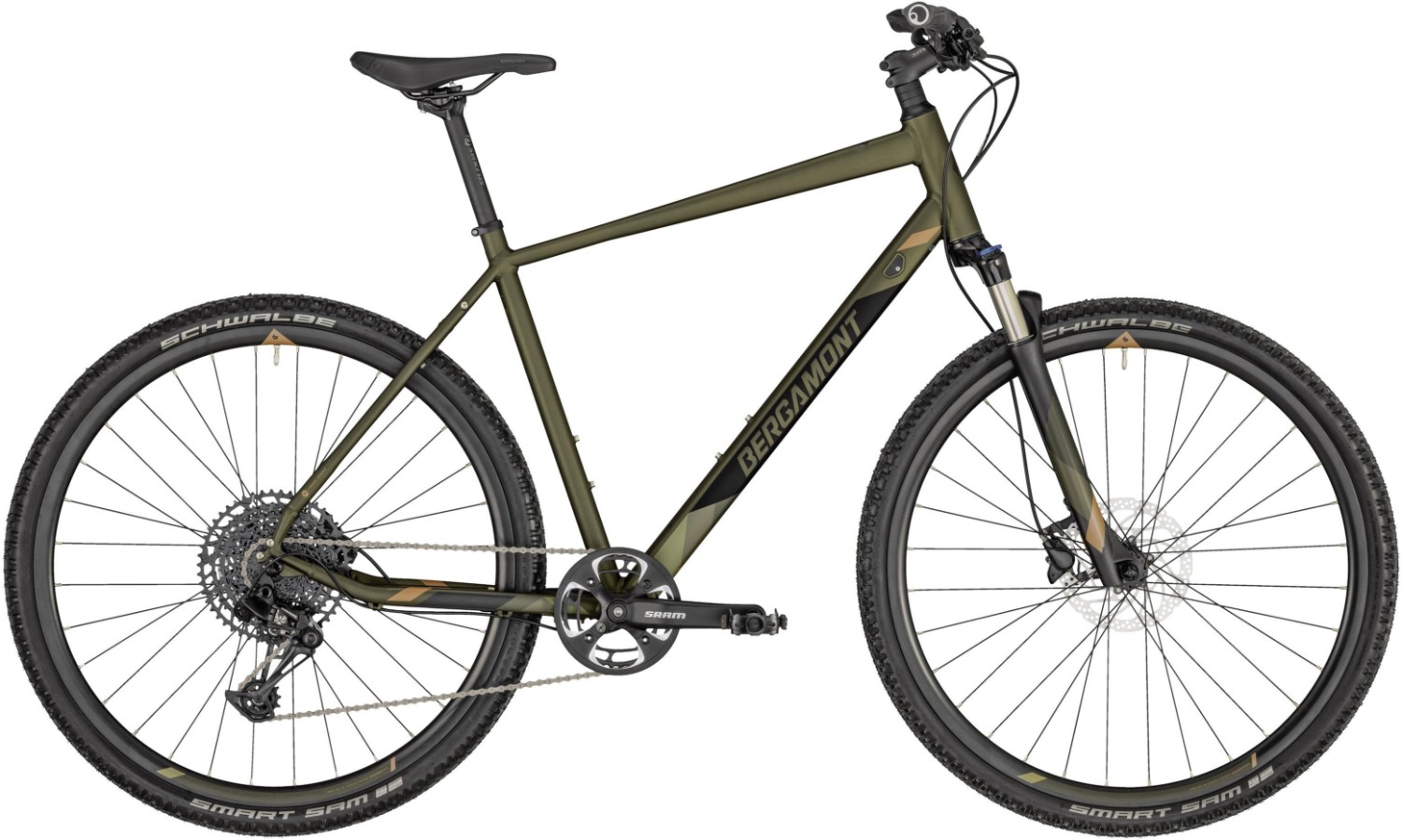

Bergamont Helix 7 2020 - Hybrid Sports Bike
- Versatile, sportive and light all-rounder for demanding riders.
- Technologically optimised frame platform with internal cable routing
- Light, comfortable Suntour NRX air suspension fork with lockout function
- High-end Sram Eagle 1x12 shifting technology
- Powerful Shimano hydraulic disc brakes
- High-end, ergonomic contact points made by Ergon
| Frame | 28", lite AL-6061 tubing |
| Fork | Suntour NRX D Air LO, 63 mm, lockout |
| Rear Derailleur | Sram NX Eagle |
| Shifter | Sram SX Eagle, 1x12-speed, trigger-shifter |
| Cassette | Sram PG-1210 Eagle, 11-50t |
| Chain | Sram SX Eagle |
| Crankset | Sram S650 Eagle, 38t |
| Bottom Bracket | Sram Power Spline, BSA |
| Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 180/160 mm |
| Brake Levers | Shimano BL-MT200, hydraulic disc brake |
| Rims | BGM Pro X15, disc, 32h |
| Front Hub | Shimano, centerlock, disc, quick release |
| Rear Hub | Shimano, centerlock, disc, quick release |
| Spokes | stainless, black |
| Tires | Schwalbe Smart Sam, Addix, 44-622 |
| Tubes | Schwalbe SV17A Light |
| Headset | BGM Comp, A-Headset, semi-integrated, 1 1/8" |
| Handlebar | Syncros, riserbar, backsweep: 15° |
| Stem | Syncros, clamp diameter: 31.8 mm |
| Grip | Ergon GA30 |
| Saddle | Ergon SFC30 |
| Seatpost | Syncros |
| Pedals | Sport alloy |
| Approx. weight | 13,9 kg |
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 28", lite AL-6061 tubing |
| Fork | Suntour NRX D Air LO, 63 mm, lockout |
| Headset | BGM Comp, A-Headset, semi-integrated, 1 1/8" |
| Stem | Syncros, clamp diameter: 31.8 mm |
| Bars | Syncros, riserbar, backsweep: 15° |
| Front Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 160mm |
| Brake Lever | Shimano BL-MT200, hydraulic disc brake |
| Rear Mech | SRAM NX Eagle |
| Shifters | Sram SX Eagle, 1x12-speed, trigger-shifter |
| Speed | 12 |
| Rims | BGM Pro X15, disc, 32h |
| Front Hub | Shimano, centerlock, disc, quick release |
| Rear Hub | Shimano, centerlock, disc, quick release |
| Spokes | Stainless, Black |
| Front Tyre | Schwalbe Smart Sam, Addix, 44-622 |
| Rear Tyre | Schwalbe Smart Sam, Addix, 44-622 |
| Seat Post | Syncros |
| Saddle | Ergon SFC30 |
| Chainset | Sram S650 Eagle, 38t |
| Bottom Bracket | Sram Power Spline, BSA |
| Chain | SRAM SX Eagle |
| Cassette | SRAM PG-1210 Eagle, 11-50t |
| Pedals | Sport alloy |
Typical Hybrid Bike Sizing Chart
Frame Size
XXS - 13"
4'8"
5'1"
XS - 15"
5'1"
5'4"
S - 16"
5'4"
5'7"
M - 18"
5'7"
5'10"
L - 19"
5'10"
6'0"
XL - 20"
6'0"
6'3"
XXL - 21"
6'3"
6'5"
XXXL - 22"
6'5"
6'9"
Hybrid Bike Sizing Chart
|
Height |
Bike size (cm) |
bike size (Inch) |
|
4’8” – 5’1” 143 – 155 cm |
44 – XXS |
13” – XXS |
|
5’1” – 5’4” 155 – 163 cm |
48 – XS |
15” – XS |
|
5’4” – 5’7” 163 – 170 cm |
51 – S |
16” – S |
|
5’7” – 5’10” 170 – 178 cm |
54 – M |
18” – M |
|
5’10” – 6’0” 178 – 183 cm |
56 – L |
19” – L |
|
6’0” – 6’3” 183 – 191 cm |
58 – XL |
20” – XL |
|
6’3” – 6’5” 191 – 196 cm |
60 – XXL |
21” – XXL |
|
6’5” – 6’9” 196 – 205 cm |
62 - XXXL |
22” – XXXL |
