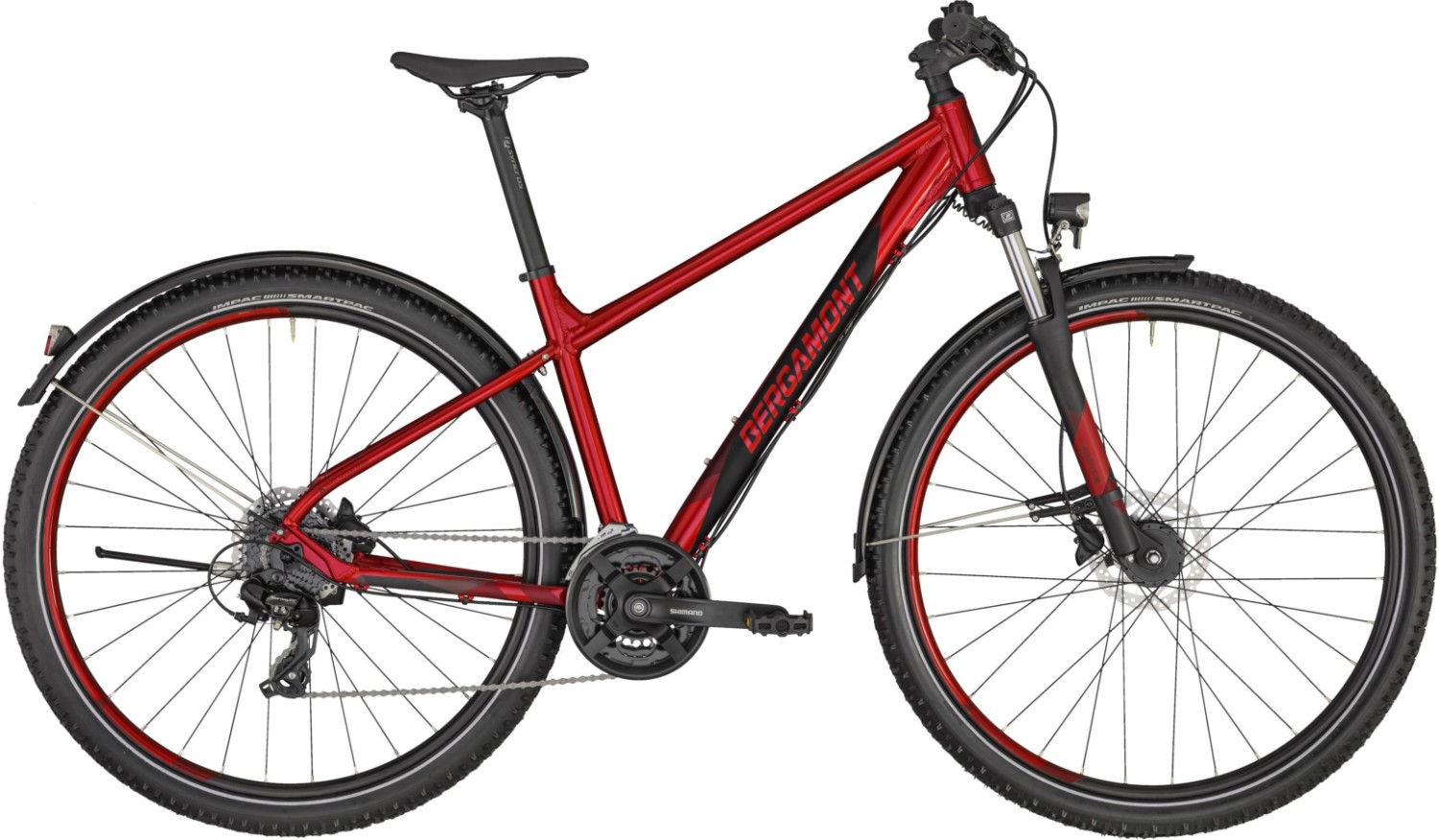

Bergamont Revox 3 EQ 29" Mountain Bike 2020 - Hardtail MTB
- Versatile MTB hardtail with high-grade, street legal components for a wide range of use.
- Reliable Shimano drive train
- Hydraulic Shimano disc brakes
- High-grade Herrmans lighting system
- Mounting options for a carrier
- Available in seven frame sizes
Frame | 29" (27.5"), lite AL-6061 tubing |
Fork | Suntour XCE DS, 100 mm, preload adjust |
Rear Derailleur | Shimano RD-TX800 |
Front Derailleur | Shimano FD-TY700 |
Shifter | Shimano ST-EF505, 3x8-speed, STI-shifter |
Cassette | Shimano CS-HG200-8, 12-32t |
Chain | KMC Z8 |
Crankset | Shimano FC-TY301, 42/34/24t |
Bottom Bracket | Shimano BB-UN100 |
Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm |
Brake Levers | Shimano ST-EF505, hydraulic disc brake |
Rims | Shining DB29, disc |
Front Hub | Shimano dynamo hub, DH-3D37, centerlock, disc |
Rear Hub | Shimano, centerlock, disc, quick release |
Spokes | stainless, black |
Tires | Impac SmartPac, Kevlarguard, reflective stripe, 29x2.10" (27.5x2.10") |
Tubes | Impac SV29 / SV27 |
Headset | BGM FP-H807B, A-Headset, semi-integrated, 1 1/8" |
Handlebar | Syncros 3.0, riserbar, width: 700 mm |
Stem | Syncros 3.0, +/-6° |
Grip | Syncros MTB |
Saddle | Syncros M3.0 |
Seatpost | Syncros 3.0 |
Fender | SKS, with stainless stays |
Front light | Herrmans H-Black MR4, standlight |
Rear light | Herrmans H-Trace Mini, standlight |
Stand | BGM, alloy, adjustable |
Pedals | Wellgo LU895 |
Approx. weight | 16,3 kg |
Occasionally, without notice, manufacturers change product design and/or specifications.
Mountain Bike Size Chart
Height
|
Bike Size
|
Mountain Bike Size
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
