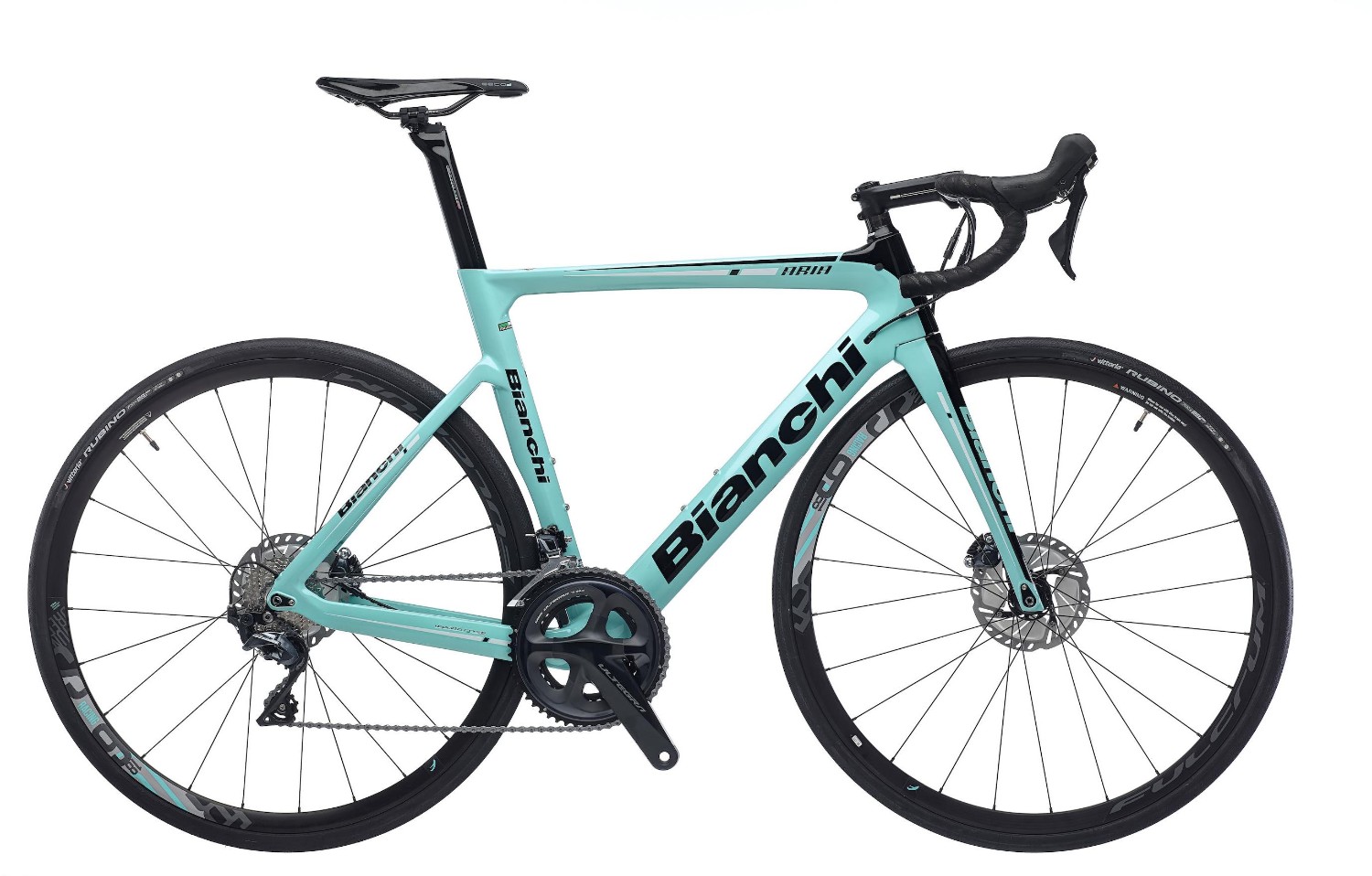

Bianchi Aria Disc Ultegra 2019 - Road Bike
Positioning
Aerodynamic bike with aero racing shape frame/ fork/seatpost. Fast road bike with aero tubes profiles, rigidity and handling you would expect from a true racing bike with affordable price.
Course/ Terrain
Road, flat and downhill segments, hilly and fast courses, Triathlon events.
End Use Destination
All-round riders with a true racing soul. Ideal for race warriors.
Key Features
• Aero shape frame with disc brake system and integrated fork
• Full carbon aero seatpost
• Best performance-to-price ratio
• Triathlon ready
• Improved braking power and control, in any condition
Product Features
• Specific frame and fork Disc compatible
• Flat mount system (Shimano standard)
• Thru axle 12mm front 100mm and rear OLD 142mm specific dimension model QR50 with alloy lever (M12 x P1.5)
• Compatible with 140mm and 160mm rotor
• Chain stay length 410mm
• Internal hydraulic cable guide housing in the frame and fork
• Aero seatpost with integrated look and adjustable head clamp offset (25mm or -10mm)
• Sizes: 44, 47, 50, 53, 55, 57, 59, 61cm
• Weight in 55 size: 1150g target (+/- 5%)
Aero Seatpost
• Aero seatpost with integrated look and adjustable head clamp offset (25mm or -10mm)
• Hidden seatpost clamp for perfect aerodynamic design and nice looking
• Seatpost length: 250mm=44cm, 300mm=47>50cm, 350mm=53>61cm
Disc Brake System
• Thru axle 12mm front 100mm and rear OLD 142mm specific dimension model QR50 with alloy lever (M12 x P1.5)
• Compatible with 140mm and 160mm rotor
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aria Disc carbon |
| Fork | Bianchi Full Carbon Disc 1.4">1.1/8" |
| Headset | Fsa Orbit C-33, NO.44E |
| Stem | Reparto Corse 3D Forged alloy 6061 |
| Bars | Reparto Corse Aero Compact, alloy 6061 |
| Front Brake | Shimano BR-R8070 |
| Rear Brake | Shimano BR-R8070 |
| Brake Lever | included w/shifters |
| Front Mech | Shimano Ultegra FD-R8000 |
| Rear Mech | Shimano Ultegra RD-R8000 SS 11sp |
| Shifters | Shimano Ultegra ST-R8020 2x11sp |
| Speed | 22 |
| Rims | Fulcrum Racing 618 disc brake |
| Front Tyre | Vittoria Rubino IV 700x28 |
| Rear Tyre | Vittoria Rubino IV 700x28 |
| Seat Post | Aria Full Carbon Aero |
| Saddle | Selle Royal Seta S1, steel rails, 278x144mm |
| Chainset | Shimano Ultegra FC-R8000 52x36T |
| Bottom Bracket | Shimano SM-BB72-41B |
| Chain | Kmc X11-1 EPT finish, 11sp |
| Cassette | Shimano 105 CS-R7000, 11-28T |
| Pedals | Basic Resin Flat |
See the table below to find the right size.
Road Bike Sizing
XXS (44)
4'8"
5'1"
XS (48)
5'1"
5'4"
S (51)
5'4"
5'7"
M (54)
5'7"
5'10"
L (56)
5'10"
6'0"
XL (58)
6'0"
6'3"
XXL (60)
6'3"
6'5"
XXXL (62)
6'5"
6'9"
Read our bike size guide for more information on sizing.
|
Height |
Size |
|||||||
|
4’8” / 143cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’9” / 145cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’10” / 148cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’11” / 150cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’0” / 152cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’1” / 155cm |
44 (XXS) |
48 (XS) |
|
|
|
|
|
|
|
5’2” / 158cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’3” / 160cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’4” / 163cm |
|
48 (XS) |
51 (S) |
|
|
|
|
|
|
5’5” / 165cm |
|
|
51 (S) |
|
|
|
|
|
|
5’6” / 168cm |
|
|
51 (S) |
|
|
|
|
|
|
5’7” / 170cm |
|
|
51 (S) |
54 (M) |
|
|
|
|
|
5’8” / 173cm |
|
|
|
54 (M) |
|
|
|
|
|
5’9” / 175cm |
|
|
|
54 (M) |
|
|
|
|
|
5’10” / 178cm |
|
|
|
54 (M) |
56 (L) |
|
|
|
|
5’11” / 180cm |
|
|
|
|
56 (L) |
|
|
|
|
6’0” / 183cm |
|
|
|
|
56 (L) |
58 (XL) |
|
|
|
6’1” / 185cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’2” / 188cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’3” / 191cm |
|
|
|
|
|
58 (XL) |
60 (XXL) |
|
|
6’4” / 193cm |
|
|
|
|
|
|
60 (XXL) |
|
|
6’5” / 196cm |
|
|
|
|
|
|
60 (XXL) |
62 (XXXL) |
|
6’6” / 198cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’7” / 201cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’8” / 203cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’9” / 205cm |
|
|
|
|
|
|
|
62 (XXXL) |
Read our bike size guide for more information on sizing.
