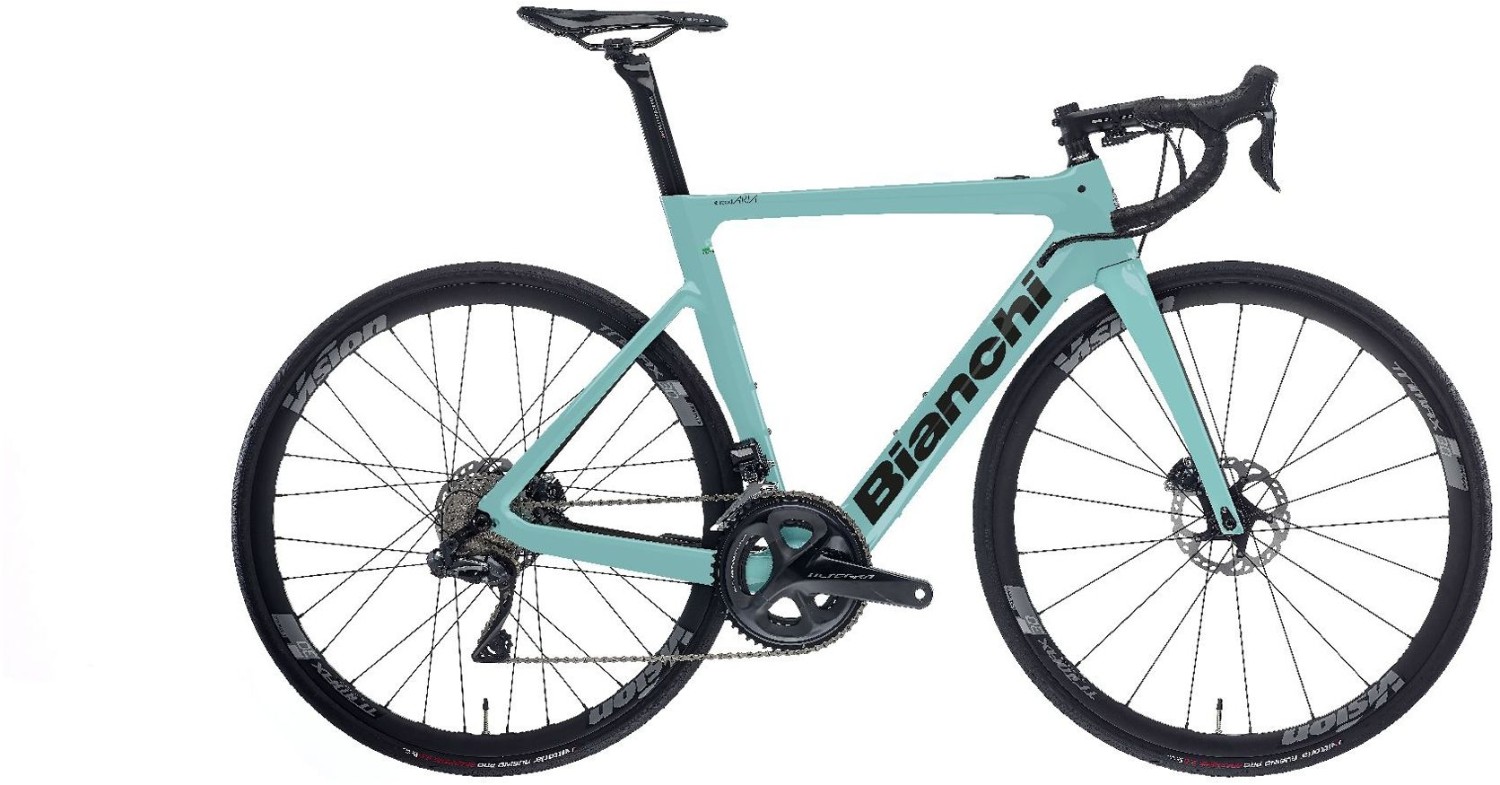

Bianchi Aria E-Road 105 Di2 2024 - Electric Road Bike
Experience the thrill of aerodynamic road cycling with discreet electrical assistance from the Bianchi Aria E-Road 105 Di2. Engineered for expert riders, this bike combines the rigidity and handling of a true racing machine with the added boost of an integrated motor system.
Key Features:
- Frame: E-road Aria aero carbon frame with integrated seat clamp and full carbon dropout for enhanced aerodynamics and performance
- Front Suspension: Full carbon aero road fork with thru-axle for precise handling and control
- Drivetrain: Shimano 105 12-speed drivetrain for smooth and reliable shifting performance
- Brakes: Shimano hydraulic disc brakes for powerful and consistent braking in all conditions
- Wheels: FSA Vision Trimax alloy disc wheels with rear Mahle motor hub, paired with Vittoria Rubino Pro G2.0 graphene tyres for superior grip and durability
- Other Standout Feature: Lightweight and durable carbon seatpost and saddle for added comfort and performance
- Available with 0% APR finance
Drive Information:
- Motor: Mahle X35 Plus 250W motor unit with discreet assistance for seamless road riding experiences
- Battery: Mahle X35+ 250Wh battery capacity for long-lasting power on your rides
- User Interface: IWOC One remote control for easy access to motor settings, BLE and ANT+ compatible for versatile connectivity options
The Bianchi Aria E-Road 105 Di2 is crafted for cyclists who demand the utmost performance from their ride. Featuring an aerodynamic carbon frame and fork, this bike cuts through the wind with ease, while the integrated Mahle X35 Plus motor unit provides discreet electrical assistance to amplify your efforts. With a Shimano 105 12-speed drivetrain and hydraulic disc brakes, you'll enjoy smooth shifting and reliable stopping power in any situation. The FSA Vision Trimax alloy wheels, equipped with Vittoria Rubino Pro G2.0 graphene tyres, ensure excellent traction and durability, while the lightweight carbon seatpost and saddle enhance comfort on long rides. Plus, with its Mahle X35+ 250Wh battery and IWOC One remote control, you'll have the power and control to conquer any road with confidence. Experience the thrill of road cycling like never before with the Bianchi Aria E-Road 105 Di2.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | E-Road Aria aero carbon, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.1/8", integrated seat clamp, full carbon dropout, aero shape DT-ST, Disc brake flat mount, QR sytem, OLD 135mm sizes 47-50-53-55-57-59-61cm |
| Fork | Full Carbon Aero Road 1.4">1.1/8" integrated head , Disc brake flat mount, thru axle 12x100 |
| Headset | FSA Orbit C-33, NO.44E, 1-1/8 |
| Stem | Velomann, raise - 6°, height 38mm, Oversize, 1 1/8", size 90/100/110/120cm Ext: 90mm-48/50cm, 100mm-52/54cm, 110mm-56cm, 120mm-58cm |
| Bars | Velomann, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm Size: 400mm-44/53cm, 420mm-55/59cm, 440mm-61cm |
| Front Brake | Shimano included in the shifter |
| Rear Brake | Shimano included in the shifter |
| Front Mech | Shimano, FD-R7150, 105 |
| Rear Mech | Shimano, RD-R7150, 105,12-SPEED |
| Shifters | Shimano DISC BRAKE SET, 105, ST-R7170 |
| Speed | 24 |
| Rims | FSA Vision Trimax alloy disc with rear Mahle motor hub |
| Rear Hub | FSA Vision Trimax alloy disc with rear Mahle motor hub |
| Front Tyre | Vittoria Rubino Pro G2.0 graphene, 700 x 28c, 150TPI |
| Rear Tyre | Vittoria Rubino Pro G2.0 graphene, 700 x 28c, 150TPI |
| Seat Post | Full Carbon Aero special dimension, special Clamp type with alloy head adjustable and reversible +/- 35mm; lenght: 300mm - 47/50cm; 350mm - 53/61 |
| Saddle | Velomann, carbon steel rail, 262x145 |
| Chainset | Shimano, FC-R7100, 105, 50-34T Crank Length: 47-50-53 - 170mm 55-57-59 - 172.5mm61L - 175mm |
| Bottom Bracket | Shimano,SM-BB72-41B, PRESS FIT TYPE FOR ROAD, BEARING, INNER COVER |
| Chain | Shimano, CN-M7100, HG 12-SPEED |
| Cassette | Shimano, CS-R7101, 105, 12-SPEED,11-12-13-14-15-17-19-21-24-27-30-34T |
| Pedals | Resin Platform |
| Battery Size (WH) | Mahle X35+ 250Wh |
| Motor | Mahle X35 Plus 250W motor unit, iWOC One remote control, BLE and ANT+ compatible |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
