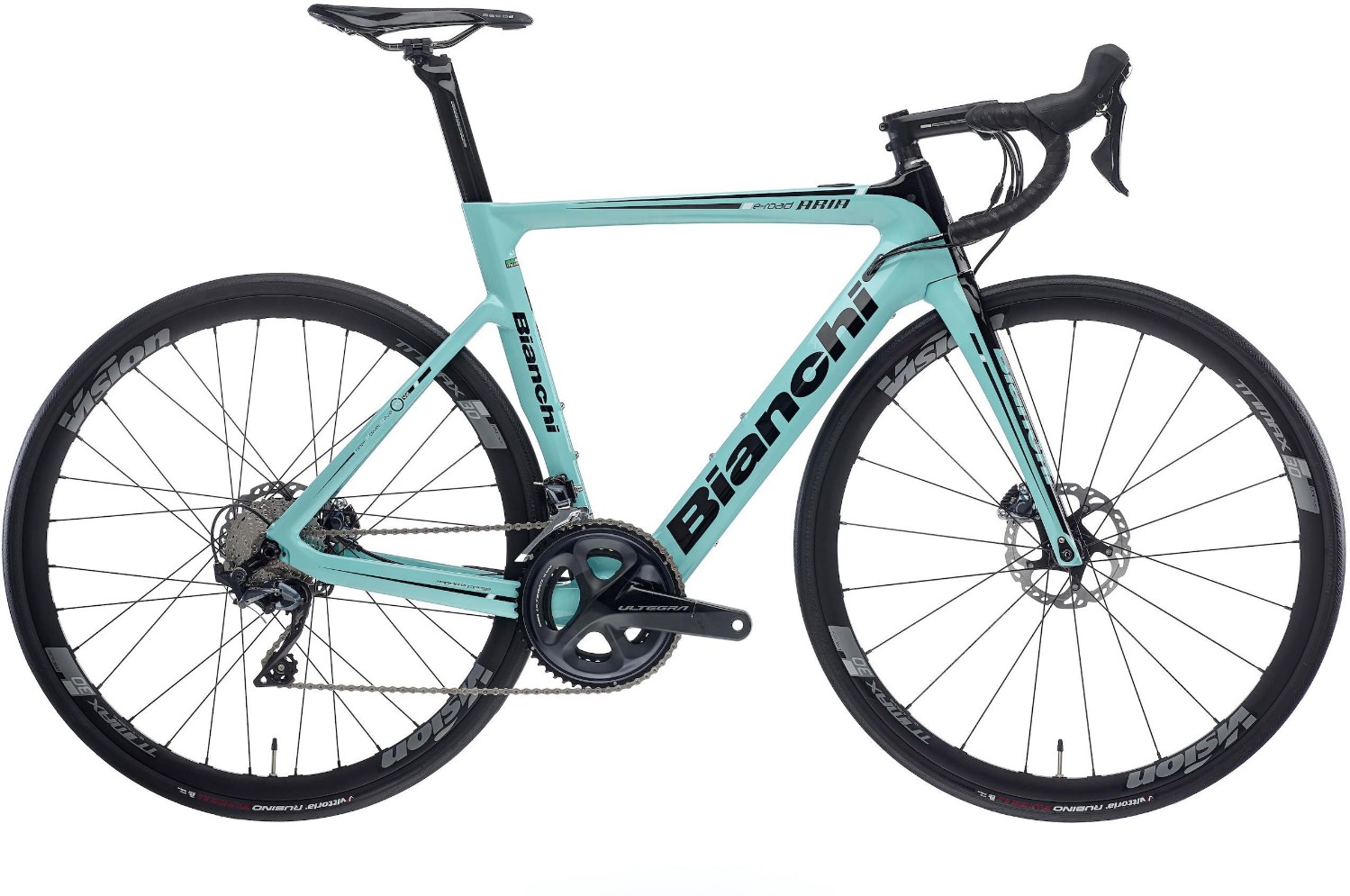

Bianchi Aria E-Road Ultegra 2020 - Electric Road Bike
A traditional bike works according to the amount of force you put on the pedals. Instead, Bianchi’s e-bikes power-assist your pedal stroke up to a speed of 25km/hr. Choose the level of assistance that’s best for you and how you’re feeling, whether it be a light or intense boost. In any case, you will be the winner.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aria E-Road Disc carbon, mechanical/electronic shifting compatible, PressFit 86,5x41mm BB, head tube 1.4”-1.1/8” |
| Fork | Bianchi Full Carbon 1.4”>1.1/8” integrated head, Disc brake flat mount, thru axle 12x100mm |
| Headset | Fsa Orbit C-33, NO.44E, 1.1/8”>1.14”, 45°/45° ACB steeel bearings |
| Stem | Reparto Corse 3D Forged alloy 6061, rise - 8°, 1.1/8” |
| Bars | Reparto Corse Aero Compact, alloy 6061 diam. 31,8mm, reach 74mm, drop 116mm |
| Front Brake | Shimano BR-R8070 Hydraulic disc brake, flat mount calipers |
| Rear Brake | Shimano BR-R8070 Hydraulic disc brake, flat mount calipers |
| Brake Lever | Included With Shifters |
| Front Mech | Shimano Ultegra FD-R8000, down swing, brazedon type, 61-66° |
| Rear Mech | Shimano Ultegra RD-R8000 GS 11sp, top normal shadow design, direct attachment, compatible with low gear |
| Shifters | Shimano Ultegra ST-R8020 2x11sp, hydraulic discbrake, Shimano Ultegra ST-R8025 2x11sp |
| Speed | 22 |
| Rims | Vision Trimax Alloy disc |
| Rear Hub | 250W rear hub motor unit |
| Front Tyre | Vittoria Rubino Pro G2.0 Graphene 700x28, 150TPI, Folding, full Black |
| Rear Tyre | Vittoria Rubino Pro G2.0 Graphene 700x28, 150TPI, Folding, full Black |
| Seat Post | Aria Full Carbon Aero, clamp with alloy head adjustable and reversible +/- 35mm |
| Saddle | Selle Royal Seta S1, steel rails, 278x144mm |
| Chainset | Shimano Ultegra FC-R8000 52x36T |
| Bottom Bracket | Shimano SM-BB72-41B, PressFit |
| Chain | Shimano Ultegra CN-HG701-11, 11sp |
| Cassette | Shimano 105 CS-R7000, 11-12-13-14-16-18-20-22-25-28-32T |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 250wh |
| Motor | E-Bikemotion X35 |
| User Interface | iWOC One remote control |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
