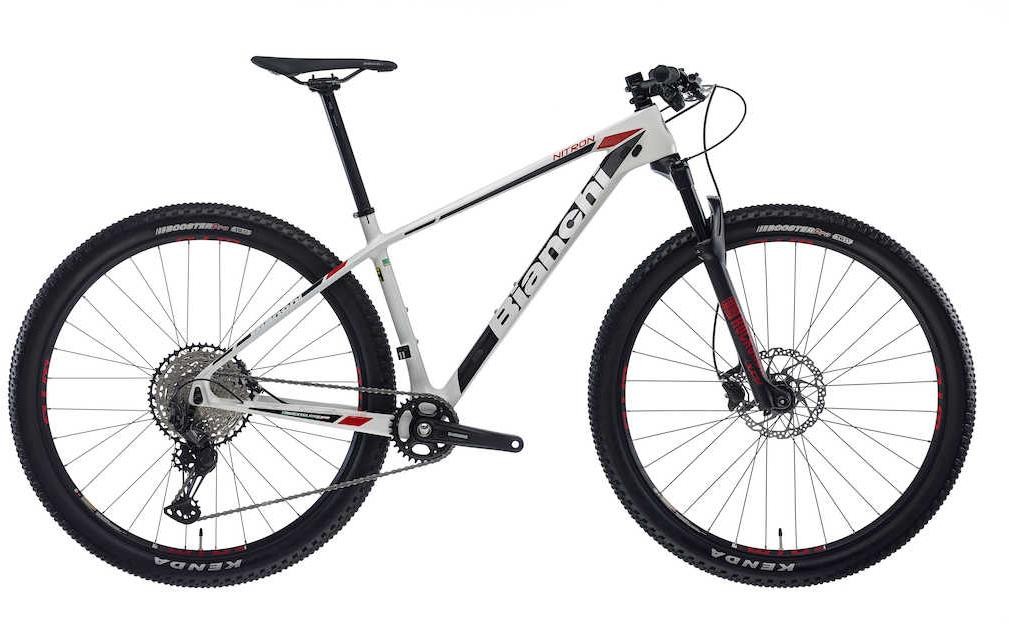

Bianchi Nitron 9.3 29" Mountain Bike 2020 - Hardtail MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Nitron 29” full carbon monocoque, 1.5” tapered HT, BB92, seatpost diam. 27,2mm, HDM FD, PM 160mm |
| Fork | Rock Shox Judy Gold RL 29” Solo Air 100mm w/OneLoc, 1.5 Tapered HT, 15x110mm Maxle stealth |
| Headset | Fsa Orbit C-40, NO.42/ACB-A, 1.1/8”-1.5” w/4.3mm cap |
| Stem | Tec Obvius 3D forged alloy 6061, +/-7°, 1.1/8”, diam. 31.8mm |
| Bars | Tec Obvius flat DB Alloy 6061-T6, width 720mm, diam. 31,8mm, 9° backsweep |
| Front Brake | Shimano SM-RT10 CL, diam. 180mm front, Center Lock |
| Rear Brake | Shimano SM-RT10 CL, diam. 160mm rear, Center Lock |
| Rear Mech | Shimano XT RD-M8100-SGS Shadow Design + 12sp, top normal, direct attachment, max 10-51T |
| Shifters | Shimano SLX 1x12sp |
| Speed | 12 |
| Rims | WTB KOM light i25 29”, 32 holes, 622x25 |
| Front Hub | Formula CL-811 for Center Lock, 32h, thru axle 15x110mm, sealed bearings |
| Rear Hub | Shimano FH-MT510-B, Center Lock, 32h, thru axle 12x148mm |
| Front Tyre | Kenda Booster Pro 29x2.20, Tubeless Race compound, 120Tpi, folding, ETRTO 56-622 |
| Rear Tyre | Kenda Booster Pro 29x2.20, Tubeless Race compound, 120Tpi, folding, ETRTO 56-622 |
| Seat Post | Tec Obvius, AL6061 shaft with forged head, diam. 27.2mm, 0mm seatback |
| Saddle | Selle Royal Seta S1, manganese rail, 277x144mm |
| Chainset | Shimano FC-MT610 32T, 52mm chainline |
| Bottom Bracket | Sram DUB PRESSFIT BB92 (41x92) |
| Chain | SHIMANO CN-M7100 12SP |
| Cassette | Shimano CS-M7100-12, 10-51T |
| Pedals | Basic Resin Flat |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
