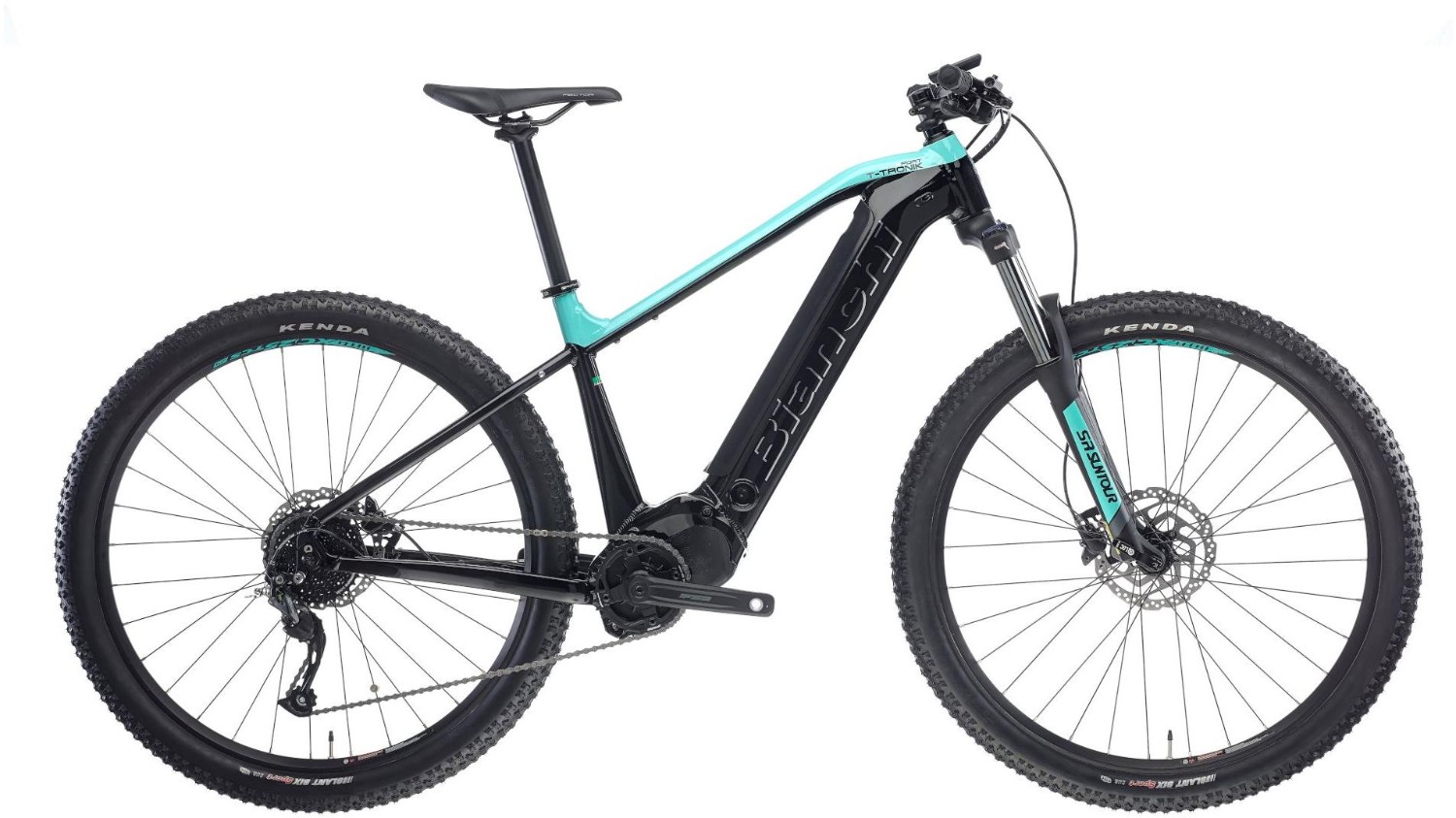

Bianchi T-Tronik Sport 9.2 X5 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | T-Tronik Sport HT, alu 6061 triple butted, 1.5" tapered HT, seatpost diam. 31.6mm, seatpost clamp diam. 34.9mm, PM 160mm, Boost dropout QR 12x141mm, internal cable routing, sizes 38-43-48-53cm |
| Fork | SR Suntour XCM32 Boost NLO DS 29" 120mm, with NLO lockout, 1.5" tapered HT, alloy crown, coil spring w/preload adjust, steel 32mm stanchions, alloy lowers w/PM 160mm disc mount, 15x110mm TA |
| Headset | Fsa Orbit 1.5 ZS #57 w/internal alloy cups, ACB bearings 1.1/8" Upper, 1.5" Lower, w/8mm cap |
| Stem | Tec Obvius forged alloy 6061, +/-7°, 1.1/8", 31.8mm, ext: 60mm-15/19", 70mm-21" |
| Bars | Tec rise, DB Alloy 6061-T6, width 740mm, diam. 31,8mm, 9° backsweep, 15mm rise |
| Front Brake | Tektro HD-M275, w/180mm adapter front & rear |
| Rear Brake | Tektro HD-M275, w/180mm adapter front & rear |
| Rear Mech | Sram X5 9sp long cage |
| Shifters | Sram X5 9sp trigger |
| Speed | 9 |
| Rims | Wtb XC25 TCS Tubeless Ready 29", AL6061-T6, 32 holes |
| Front Hub | Formula DC-511 Disc, 6 bolts, 32 holes, j-bend spokes, thru-axle |
| Rear Hub | Formula Disc, Center Lock, J-Bend spokes, w/QR |
| Front Tyre | Kenda Slant Six Sport 29x2.35, DTC compound, 60Tpi, ETRTO 60-622 |
| Rear Tyre | Kenda Slant Six Sport 29x2.35, DTC compound, 60Tpi, ETRTO 60-622 |
| Seat Post | Tec AL2014 shaft and alloy head, diam 31.6mm, 0mm setback, length: 350mm-15/17'', 400mm-19/21'' |
| Saddle | Tec Rector, 140mm width, Steel rails, Pvc soft touch cover |
| Chainset | Fsa forged aluminium crank, length: 165mm, w/34T chainring |
| Chain | Kmc E9s, 9sp |
| Cassette | Sram CS PG-920, 11-34 9sp |
| Battery Size (WH) | 522Wh Phylion battery, w/4A battery charger |
| Motor | Shimano E7000 motor unit, w/DU-E7000 drive unit, w/ speed sensor |
| User Interface | SC-E7000 cycle computer |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Bianchi T-Tronik Sport 9.2 X5 2022 - Electric Mountain Bike.
This product is no longer available.
