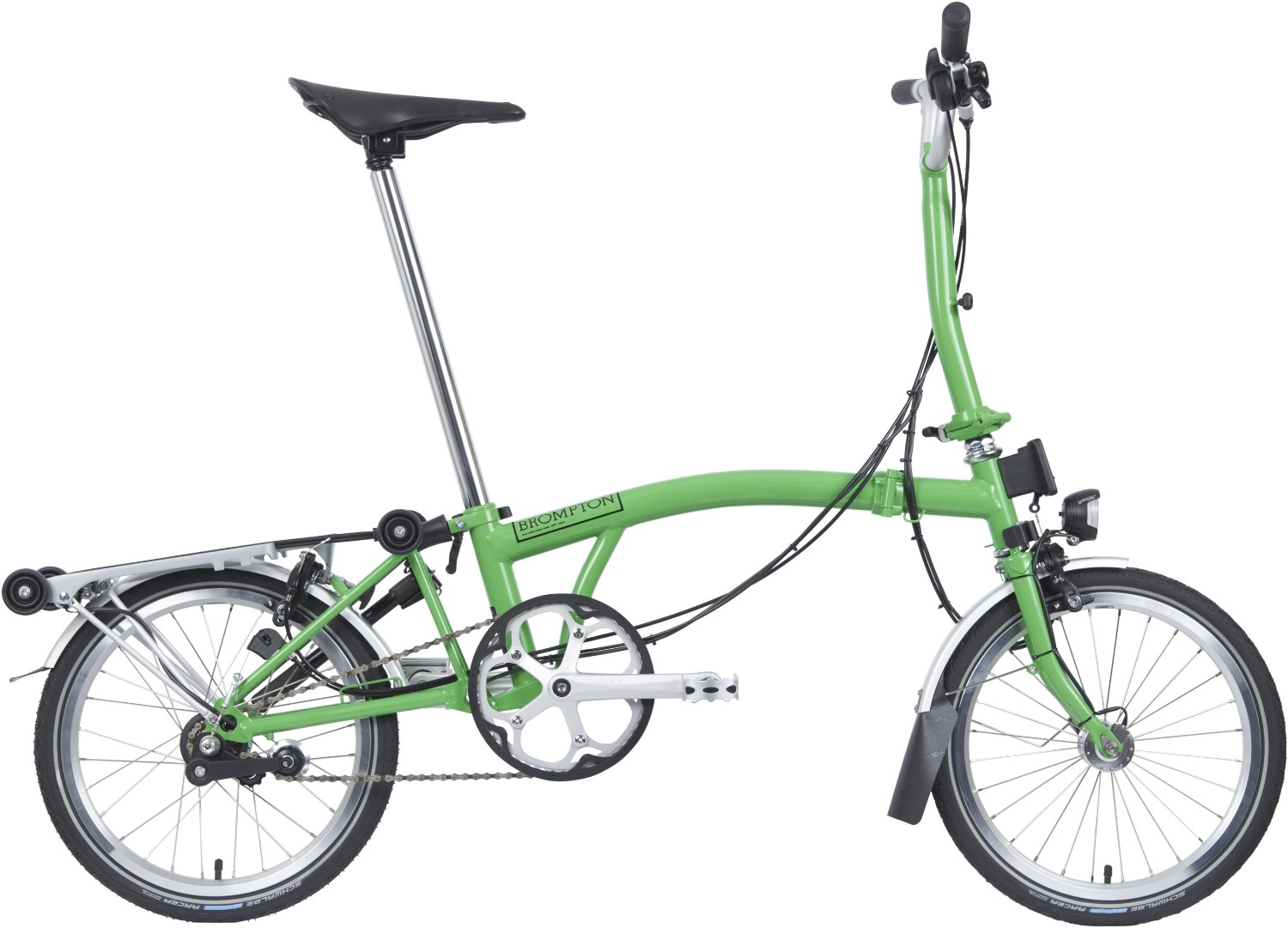

Brompton C Line Archive Edition 2023 - Folding Bike
Celebrating the making of the one-millionth Brompton rolling of the London factory floor, Brompton present special editions in some of their most iconic archive colours.
The original Brompton folding bike, this edition is designed around the original MK1 specification from 1975. With a robust steel frame, proudly handmade in London.
This C Line Archive special edition folding bike captures the same fun-to-ride, go-anywhere feeling it always has.
And today, with refined geometry, sleek design updates and modernised components, it feels better than ever. For over 45 years, owners across the world have customised their trusty steel folding bikes in hundreds of ways to suit their needs.
True to the original, the Archive Edition has a robust, handmade steel frame, as all C Lines continue to have today. The C Line Utility is Brompton’s 3-speed hub gear bike, a solid urban ride built for the streets.
Key Features
• Load this 3-speed all-steel bike with luggage for all-weather city and town riding.
• Brooks C17 Saddle rewards you with mile after mile of flexible comfort, come rain or shine.
• Mid handlebar for a natural, relaxed riding position.
Specifications
Frameset
• Frame: Precision drawn heat-treated steel tubing with hand brazing and selected auto-brazed joints available in a very limited number of unmistakeable colours revived from the Brompton archive. Each bike also features a special edition serial plate and decals.
• Rear Frame: Hand brazed cold-formed micro-alloy steel tubing
• Fork: Reinforced steel brazed fork
• Lighting: Dynamo lighting
Wheels
• Front Wheel: Double-wall rim, 28 spokes
• Rear Wheel: Double-wall rim, 28 spokes laced to a Brompton 3 speed internal hub gear.
• Rims: Alloy
• Tyres: 349 x 35C Schwalbe Marathon Racer. A puncture resistant tyre with a reflective sidewall.
• Rack: Classic silver rack
Drivetrain
• Pedals: Brompton Folding left hand and non-folding right-hand pedals
• Crank: (6061) forged aluminium crank with integrated chainguard
• Chain Tensioner: Designed to deal with the large variations in chain whilst being folded and unfolded.
• Shifters: 3 speed Trigger shifters
• Bottom Bracket: Square taper bottom bracket
Components
• Handlebar: (6061) aluminium handlebar with shot-peened finish
• Grips: Lock-on grips with soft-compound rubber adhered to an engineered core
• Headset: Brompton headset
• Brakes: Brompton dual caliper rim brake
• Brake Levers: Brompton levers
• Saddle: Brooks C17 saddle
• Seatpost: Chromoly steel tube, centreless ground, chrome plated for hardness, delivered in a standard length, suitable for maximum inside leg 33 inches / 84 cm
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Precision drawn heat-treated steel tubing with hand brazing and selected auto-brazed joints |
| Fork | Steel brazed fork |
| Headset | Brompton headset |
| Bars | Mid Handlebar -type triple butted (6061) aluminium handlebar with shot peened finish |
| Front Brake | Brompton Dual Pivot Calipers |
| Rear Brake | Brompton Dual Pivot Calipers |
| Shifters | 3 speed Trigger shifters |
| Speed | 3 |
| Rims | Double-wall rim |
| Front Hub | Shutter Precision SV8 Dynamo front hub. |
| Rear Hub | Brompton Standard ratio internal 3 speed rear hub |
| Front Tyre | 349 x 35C Schwalbe Marathon Racer |
| Rear Tyre | 349 x 35C Schwalbe Marathon Racer |
| Seat Post | Chromoly steel tube, centreless ground, chrome plated for hardness, delivered in a standard length, suitable for maximum inside leg 33 inches / 84 cm |
| Saddle | Brooks Cambium C17 |
| Chainset | (6061) forged aluminium crank with 50T chainring and integrated chainguard |
| Bottom Bracket | Square taper bottom bracket |
| Cassette | 13 tooth sprocket |
| Pedals | Brompton Folding left hand and non-folding right-hand pedals |
| Weight | 12.45kg |
Brompton Folding Bike Size Guide
All Brompton bikes have the same size frame and with the standard seatpost fitted are suitable for riders with an inside leg measurement up to 84cm or 33".
Longer seatposts are available for those with inside leg measurements over 84cm.
|
Seatpost |
Inside Leg (Centimetres) |
Inside Leg (inches) |
|
Standard |
Up to 84 |
Up to 33” |
|
Extended |
84 - 89 |
33” – 35” |
|
Telescopic |
Over 89 |
Over 35” |
