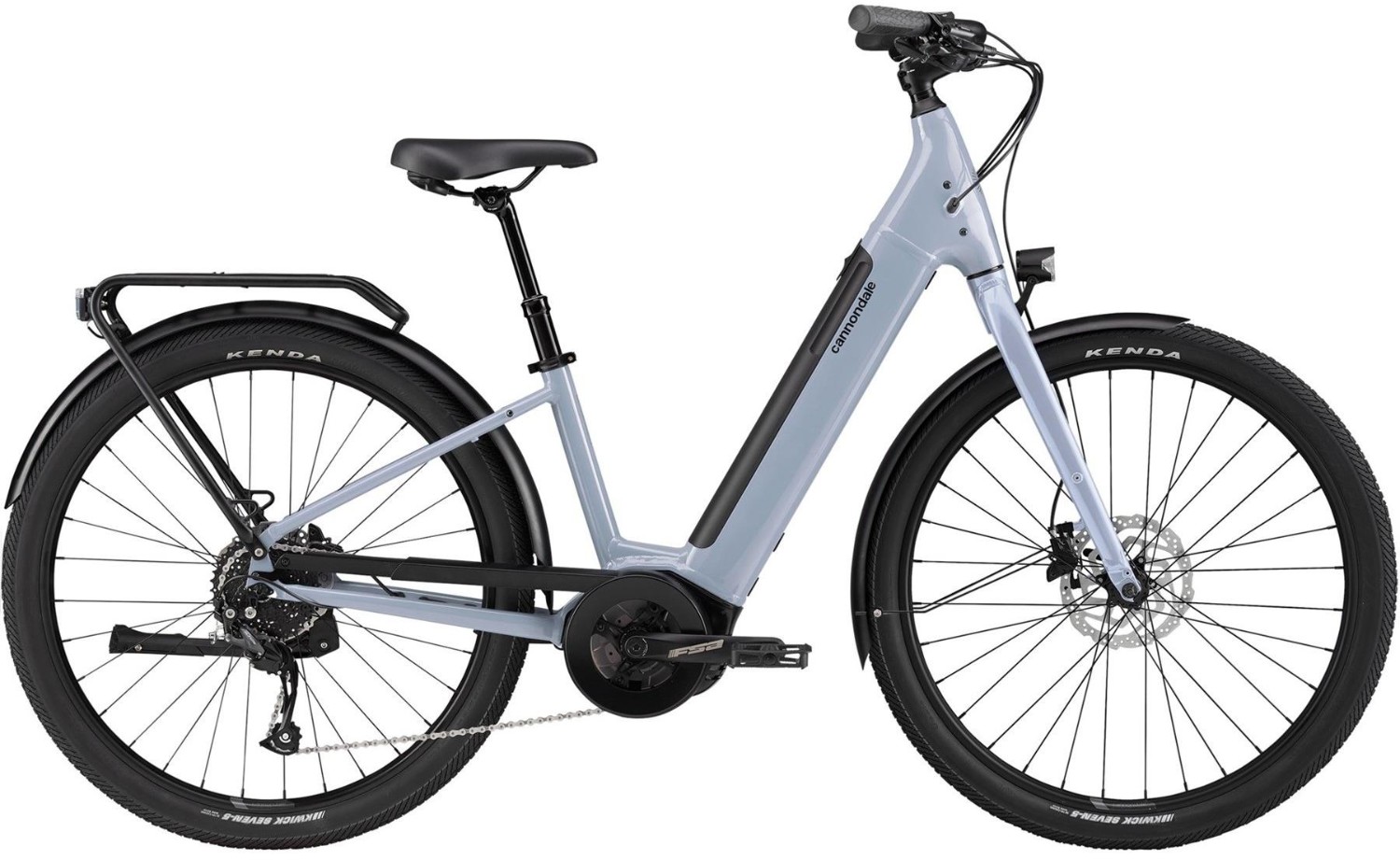

Cannondale Adventure Neo 3.1 EQ 2023 - Electric Hybrid Bike
- Lightweight aluminum step-thru frame / Shimano Altus 9-speed drivetrain / hydraulic disc brakes
- Lights, fenders, rear rack / Easy-on, easy-off dropper suspension seatpost
- Bosch Active Line Plus 250W drive-unit / 400Wh battery / Range: up to 120 Km
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C3 Alloy step-thru frame, removable downtube battery, fully internal cable routing, post mount disc, dual waterbottle headtube mount |
| Fork | SmartForm C3 Alloy blades, 1-1/8" steerer, post mount disc, mid-blade rack/fender mounts, crown accessory mount, 45mm offset |
| Headset | Semi Integrated, 1-1/8" |
| Stem | Cannondale 3 with Intellimount, alloy, 31.8mm clamp |
| Bars | Cannondale E-Series Alloy, ergo backsweep, 680mm |
| Front Brake | Riderever hydraulic disc, 180/160mm rotors |
| Rear Brake | Riderever hydraulic disc, 180/160mm rotors |
| Brake Lever | Riderever hydraulic disc |
| Rear Mech | microSHIFT M46L |
| Shifters | microSHIFT M859, 9-speed |
| Speed | 9 |
| Rims | Cannondale 2, Double wall |
| Front Hub | Formula DC-51, 15x100mm thru-axle |
| Rear Hub | Formula DC-1422, QR |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Kenda Kwick Seven.5, 27.5 x 2.20" |
| Rear Tyre | Kenda Kwick Seven.5, 27.5 x 2.20" |
| Seat Post | TranzX, suspension dropper post, 31.6, 50mm travel |
| Saddle | Cannondale Ergo Comfort |
| Chainset | FSA Bosch E-Bike, 38T |
| Bottom Bracket | Integrated |
| Chain | KMC Z9, 9-speed |
| Cassette | microSHIFT, 11-36, 9-speed |
| Pedals | Cannondale Comfort |
| Battery Size (WH) | Bosch PowerTube 400Wh |
| Motor | Bosch Active Line Plus |
| User Interface | Bosch Purion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Cannondale Adventure Neo 3.1 EQ 2023 - Electric Hybrid Bike.
This product is no longer available.
