(1)Product ID: 265326

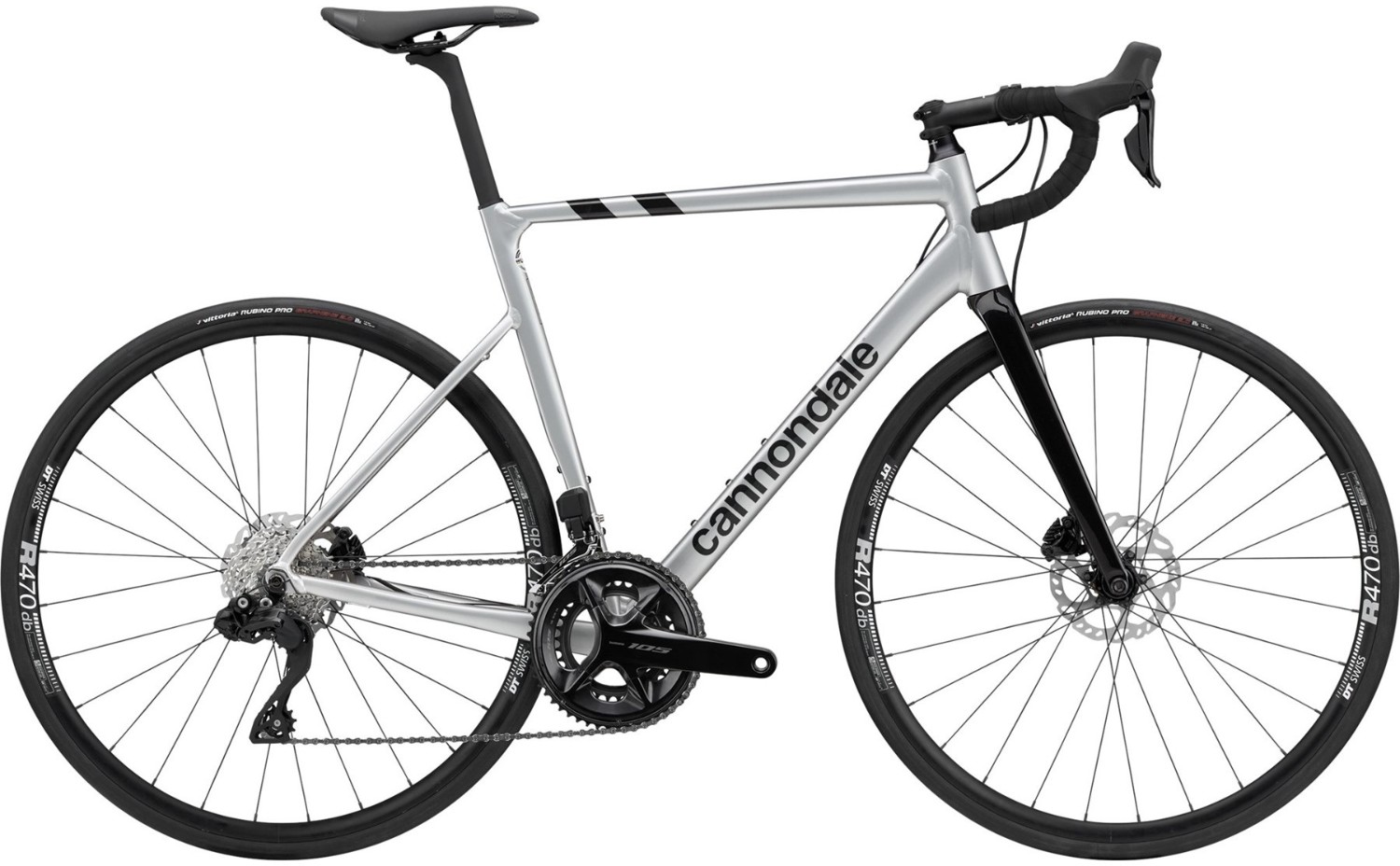

Cannondale CAAD13 105 Di2 2026 - Road Bike
The CAAD13 105 Di2 is a every day road bike boasting the ultralight SmartForm C1 Premium Alloy frame and a full carbon fork. Its aerodynamic design, featuring highly truncated airfoil tube shapes, not only enhances stiffness but also reduces drag by up to 30%. The SAVE rear triangle, integrated seat binder, and 27 KNØT seat post contribute to an exceptionally smooth ride. This bike accommodates 30mm tires, elevating your comfort and capability on any road.
Key Features:
- SmartForm C1 Premium Alloy frame with integrated cable routing
- SmartForm C1 Premium Alloy fork for precise handling
- Shimano 105 Di2 7150 electronic shifting with 50/34 chainset and 11-34 cassette for versatile performance.
- Shimano 105 7170 hydraulic disc brakes ensure precise stopping power in all conditions.
- DT Swiss R470 DB rims rolling on Vittoria Rubino Pro tyres for a balanced and smooth ride.
- The CAAD13 105 Di2 is available with 0% APR finance
Immerse yourself in the joy of road cycling with the Cannondale CAAD13 105 Di2. Its cutting-edge design, meticulous engineering, and Shimano 105 Di2 components create a bike that's not just a mode of transport but a true companion for your cycling adventures. Whether you're chasing speed, exploring new routes, or simply enjoying the thrill of the ride, this bike is your perfect partner on the road.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready |
| Fork | SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready |
| Headset | CAAD13, integrated, 1-1/8" - 1-1/4 |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
| Bars | Cannondale 3, 6061 alloy, Compact |
| Front Brake | Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors |
| Rear Brake | Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors |
| Brake Lever | Shimano 105 Di2 7170 hydraulic disc |
| Front Mech | Shimano 105 Di2 7150, braze-on |
| Rear Mech | Shimano 105 Di2 7150 |
| Shifters | Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors |
| Speed | 24 |
| Rims | DT Swiss R470 db, 28h |
| Front Hub | Formula CL-712, 12x100mm centerlock |
| Rear Hub | Formula RXC-400, 12x142mm centerlock |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Vittoria Rubino Pro Bright Black, 700 x 25c, reflective strip |
| Rear Tyre | Vittoria Rubino Pro Bright Black, 700 x 25c, reflective strip |
| Seat Post | HollowGram 27 SL, Carbon, 2 bolt clamp, 330mm, 0mm offset (44, 48 cm), 15mm offset (51-62cm) |
| Saddle | Prologo Nago RS STN |
| Chainset | Shimano 105 7100, BSA, 50/34 |
| Bottom Bracket | FSA PF30a BB for 24mm |
| Chain | Shimano 105 7100, 12-speed |
| Cassette | Shimano 105 7100, 12-speed, 11-34 |
| Pedals | Resin Platform |
Cannondale CAAD13 Sizing
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
44 |
157 - 165 |
5’2” – 5’5” |
|
48 |
160 - 170 |
5’3” – 5’7” |
|
51 |
165 - 175 |
5’5” – 5’9” |
|
54 |
170 - 180 |
5’7” – 5’11” |
|
56 |
177 - 185 |
5’10” – 6’1” |
|
58 |
182 – 193 |
6’0” – 6’4” |
|
60 |
187 - 198 |
6’2” – 6’6” |
|
62 |
195 - 205 |
6’5” – 6’9” |
Cannondale CAAD13 Geometry Chart
| Size | 44 | 48 | 51 | 54 | 56 | 58 | 60 | 62 |
|---|---|---|---|---|---|---|---|---|
| Stack | 505 | 520 | 535 | 555 | 575 | 595 | 615 | 635 |
| Reach | 370 | 374 | 378 | 384 | 389 | 395 | 400 | 406 |
| Head Tube Length | 94 | 114 | 130 | 154 | 164 | 188 | 209 | 230 |
| Head Tube Angle | 70.9° | 71.2° | 71.2° | 71.2° | 73.0° | 73.0° | 73.0° | 73.0° |
| Bottom Bracket Height | 263 | 268 | 268 | 271 | 271 | 273 | 273 | 273 |
| Bottom Bracket Drop | 79 | 74 | 74 | 72 | 72 | 69 | 69 | 69 |
| Trail | 60 | 58 | 58 | 58 | 58 | 58 | 58 | 58 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 45 | 45 | 45 | 45 |
| Front Centre | 581 | 589 | 598 | 611 | 594 | 607 | 618 | 630 |
| Chainstay Length | 408 | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase | 976 | 985 | 994 | 1008 | 992 | 1005 | 1016 | 1028 |
| Top Tube Length (horizontal) | 510 | 520 | 530 | 546 | 562 | 578 | 594 | 611 |
| Standover Height | 686 | 723 | 753 | 790 | 805 | 829 | 848 | 868 |
| Seat Tube Length | 404 | 442 | 481 | 519 | 540 | 562 | 583 | 604 |
| Seat Tube Angle | 74.5° | 74.3° | 74.1° | 73.7° | 73.3° | 72.9° | 72.5° | 72.1° |
| Tyre Size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
