(no reviews)Product ID: 258596

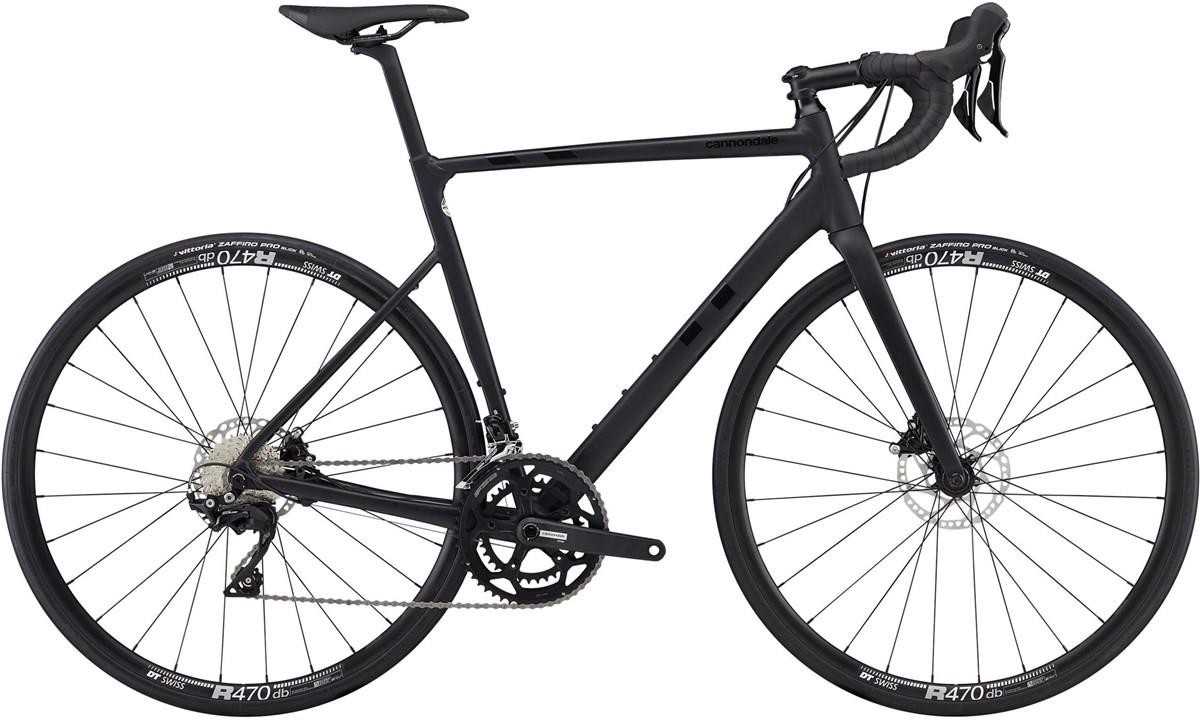

Cannondale CAAD13 Disc 105 - Nearly New - 48cm 2022 - Road Bike
This CAAD13 Disc 105 - Nearly New - 48cm road bike is in great condition. However, having been lightly used, there are some signs of wear on the bike. Cosmetically, the bike also has some damage on the top tube.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.
Make your own luck.
Make your own luck.
This is the speediest, smoothest, best handling, finest performing aluminum race bike on the planet.
Where it thrives
In competition, the open road
What it's built for
Speed, agility, handling
Key Features:
- Ultralight SmartForm C1 Premium Alloy Frame w/ full carbon fork
- Shimano 105 hydro disc group / Cannondale 1 crank
- HollowGram 27 KNØT seatpost / Prologo Nago RS
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready |
| Fork | BallisTec Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle |
| Headset | CAAD13, integrated, 1-1/8" - 1-1/4 |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
| Bars | Cannondale 3, 6061 alloy, Compact |
| Front Brake | Shimano 105 hydraulic disc, 160/160mm RT54 rotors |
| Rear Brake | Shimano 105 hydraulic disc, 160/160mm RT54 rotors |
| Brake Lever | Shimano 105 hydraulic disc |
| Front Mech | Shimano 105, braze-on |
| Rear Mech | Shimano 105 GS |
| Shifters | Shimano 105 hydraulic disc, 11-speed |
| Speed | 22 |
| Rims | Cannondale RD 2.0 Disc |
| Front Hub | Formula CL-712, 12x100mm centerlock |
| Rear Hub | Formula RXC-400, 12x142 centerlock |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Vittoria Rubino Pro Bright Black, 700 x 28c |
| Rear Tyre | Vittoria Rubino Pro Bright Black, 700 x 28c |
| Seat Post | HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm, 15mm offset |
| Saddle | Prologo Nago RS STN |
| Chainset | Cannondale 1, BB30a, FSA rings, 50/34 |
| Bottom Bracket | Cannondale BB30 |
| Chain | Shimano HG601, 11-speed |
Cannondale CAAD13 2022 Sizing
|
Size |
Height (cm) |
Height (inches) |
| 44 | 157 - 165 | 5'2 - 5'5 |
| 48 | 160 - 170 | 5'3 - 5'7 |
| 51 | 165 - 175 | 5'5 - 5'9 |
| 54 | 170 - 180 | 5'7 -5'11 |
| 56 | 177 - 185 | 5'10 - 6'1 |
| 58 | 182 - 193 | 6'0 - 6'4 |
| 60 | 187 - 198 | 6'2 - 6'6 |
| 62 | 195 - 205 | 6'5 - 6'9 |
Cannondale CAAD13 2022 Geometry
| 44 | 48 | 51 | 54 | 56 | 58 | 60 | 62 | |
| Seat tube (cm) | 40.4 | 44.2 | 48.1 | 51.9 | 54 | 56.2 | 58.3 | 60.4 |
| Top tube horizontal (cm) | 51 | 52 | 53 | 54.6 | 56.2 | 57.8 | 59.4 | 61.1 |
| Head tube angle | 70.9 | 71.2 | 71.2 | 71.2 | 73 | 73 | 73 | 73 |
| Seat tube angle | 74.5 | 74.3 | 74.1 | 73.7 | 73.3 | 72.9 | 72.5 | 72.1 |
| Standover (cm) | 68.6 | 72.3 | 75.3 | 79 | 80.5 | 82.9 | 84.8 | 86.8 |
| Head tube length (cm) | 9.4 | 11.4 | 13 | 15.4 | 16.4 | 18.8 | 20.9 | 23 |
| Wheelbase (cm) | 97.6 | 98.5 | 99.4 | 100.8 | 99.2 | 100.5 | 101.6 | 102.8 |
| Front centre (cm) | 58.1 | 58.9 | 59.8 | 61.1 | 59.4 | 60.7 | 61.8 | 63 |
| Chainstay length (cm) | 40.8 | 48.8 | 48.8 | 40.8 | 40.8 | 40.8 | 40.8 | 40.8 |
| BB drop (cm) | 7.9 | 7.4 | 7.4 | 7.2 | 7.2 | 6.9 | 6.9 | 6.9 |
| BB height (cm) | 26.3 | 26.8 | 26.8 | 27.15.5 | 27.1 | 27.3 | 27.3 | 27.3 |
| Fork rake (cm) | 5.5 | 5.5 | 5.5 | 5.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Trail (cm) | 6.0 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 |
| Stack (cm) | 50.5 | 52 | 53.5 | 55.5 | 57.5 | 59.5 | 61.5 | 63.5 |
| Reach (cm) | 37 | 37.4 | 37.8 | 38.4 | 38.9 | 39.5 | 40 | 40.6 |
What size frame do I need if I am between sizes? - read here
