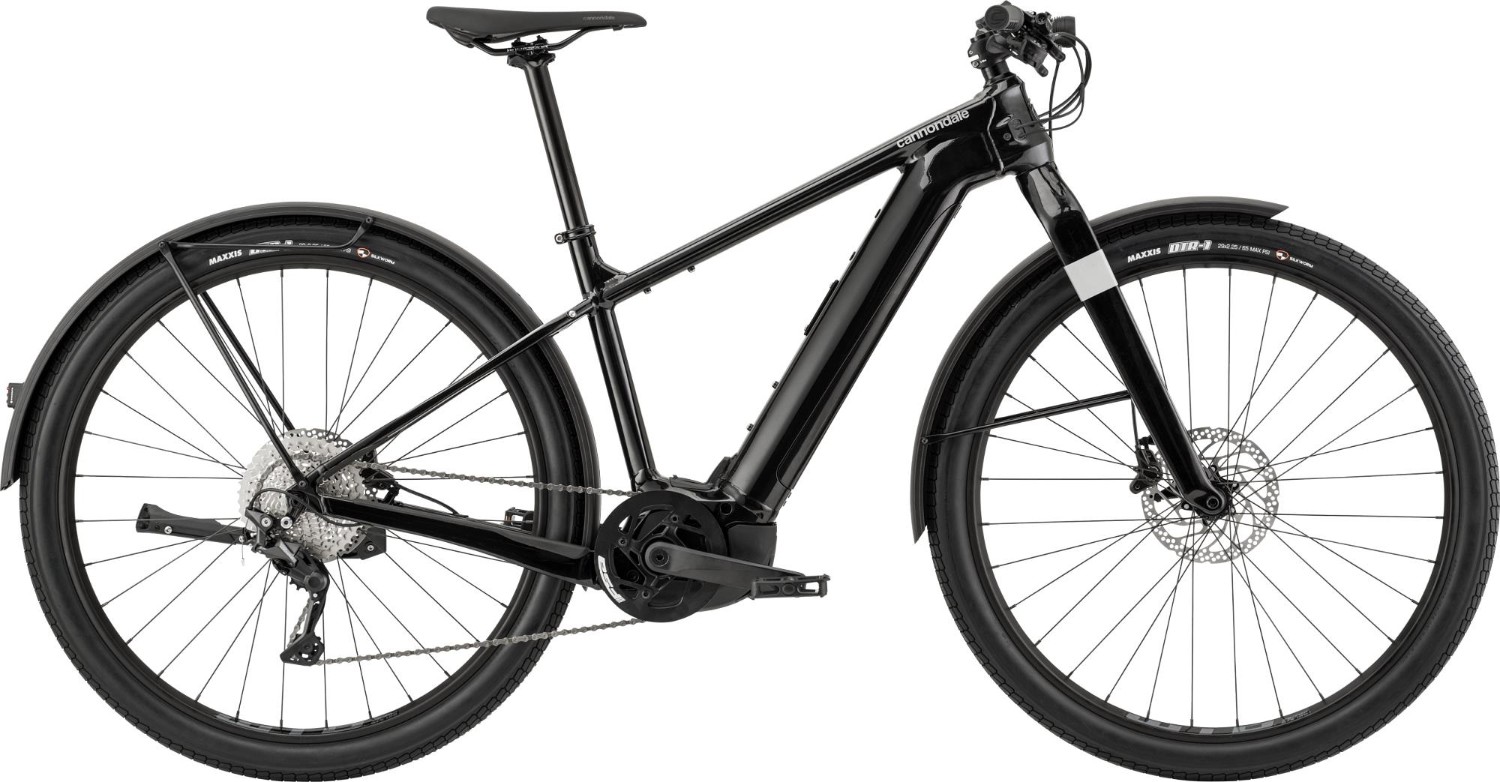

Cannondale Canvas Neo 1 2021 - Electric Hybrid Bike
Traffic slayer. A stylish, rugged urban e-bike, built to turn rush hour into “what-a-rush!” hour.
Key Features:
- Comfort and Control With an upright but sporty riding position, and big, grippy, bump-erasing tyres, all you need to worry about is enjoying the ride.
- Ready to Roll Built for daily duty with integrated pannier rack and fenders, bright front and rear lights and weather-sealed battery cover.
- Power and Range Durable, reliable Bosch drive unit and battery give you the speed you need, with the juice to go the distancePremium SmartForm C1 Alloy frame and carbon fiber fork, dual-battery-ready
- Shimano 9-speed drivetrain with hydraulic disc brakes
- Bosch Performance Line 250W drive-unit / 500Wh battery / Range: up to 95km
Where it thrives
In town, leisurely rides, on crowded streets
What it's built for
Speed, visibility, handling
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | SmartForm C1 Alloy, Dual Battery ready, removable downtube battery,, internal cable routing, 148x12mm thru-axle |
Fork | BallisTec Carbon, 1-1/8"" to 1.5"" tapered steerer, OutFront 55mm offset, post mount disc, 15x110mm thru-axle, hidden cable routing |
Headset | Integrated, 1-1/8 to 1.5"", sealed angular contact bearings |
Stem | Cannondale 3, 6061 Alloy, 31.8, 0° |
Bars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm |
Front Brake | Shimano MT400 hydraulic disc, 180mm RT30 rotors |
Rear Brake | Shimano MT400 hydraulic disc, 180mm RT30 rotors |
Brake Lever | Shimano MT401 hydraulic disc |
Rear Mech | Shimano Deore M4100 |
Shifters | Shimano Deore M4100, 10-speed |
Speed | 10 |
Rims | WTB STX i30 TCS, 32h, tubeless ready |
Front Hub | Shimano MT400, 15x110mm thru-axle |
Rear Hub | Shimano MT400 12x148mm thru-axle |
Spokes | DT Swiss Champion 2.0 |
Front Tyre | Maxxis DTR-1, 29 x 2.25" |
Rear Tyre | Maxxis DTR-1, 29 x 2.25" |
Seat Post | Cannondale 3, 6061 Alloy, 31.6, 350mm (S-M), 400mm (L-XL) |
Saddle | Cannondale Ergo Urban |
Chainset | FSA Bosch E-Bike w/ custom Ai offset, 38T |
Bottom Bracket | Integrated |
Chain | Shimano Deore, 10-speed |
Cassette | Shimano Deore M4100, 11-42, 10-speed |
Battery Size (WH) | Bosch PowerTube 625Wh |
Motor | Bosch Performance Line CX 250W |
User Interface | Bosch Purion |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Cannondale Canvas Neo 1 2021 - Electric Hybrid Bike.
This product is no longer available.
