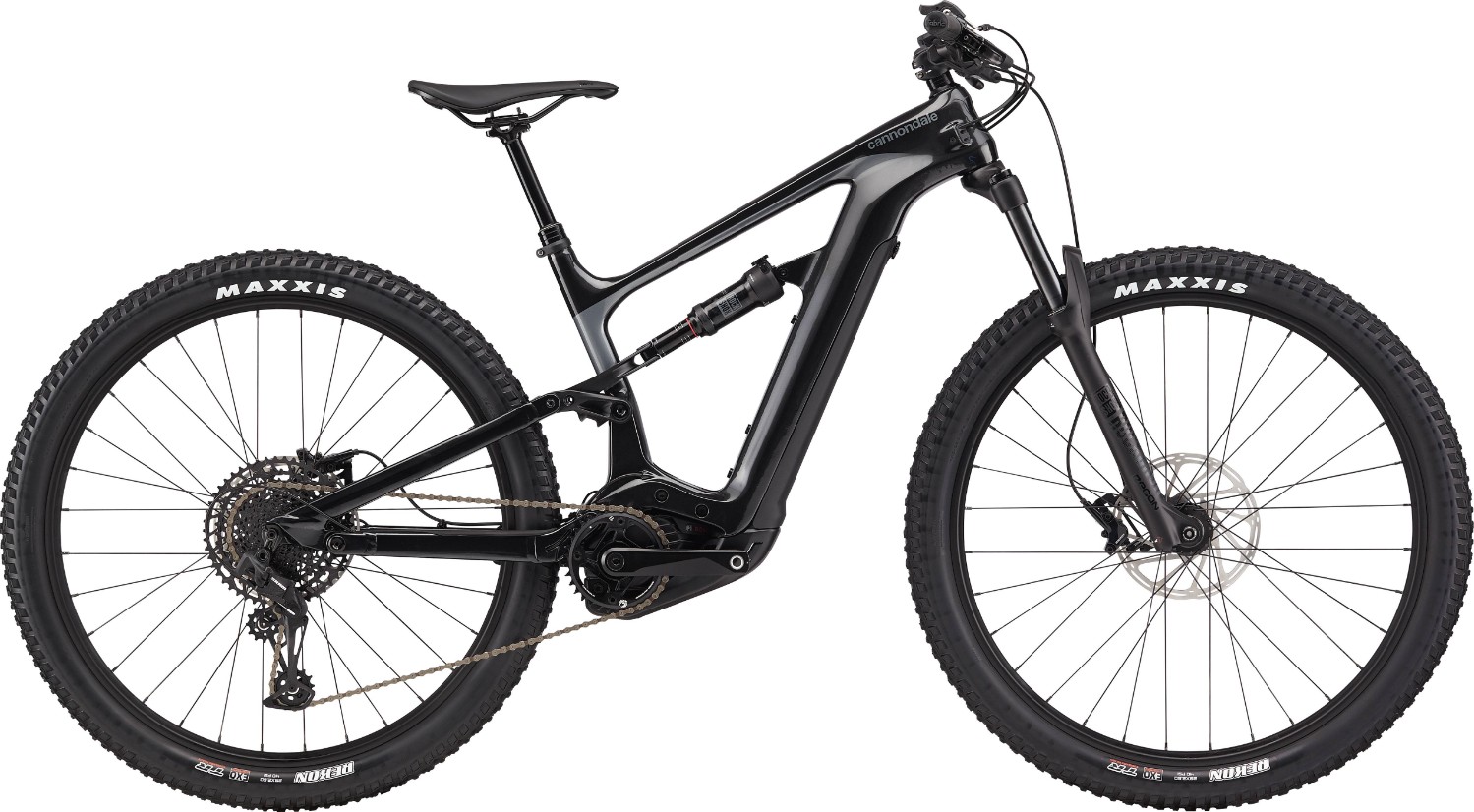

Cannondale Habit Neo 4 2020 - Electric Mountain Bike

£3,999.99
Price Match
or £111.01 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Colour
Select your size for Christmas Delivery availability
Add to Basket

Cycle to Work

Product Description

Cannondale took their most fun trail bike and put a motor in it. It’s play time with the new Cannondale Habit NEO.

Key Features:

  • BallisTec Carbon mainframe with 130mm of rear travel
  • RockShox Recon RL fork with 140 mm of plush travel
  • SRAM SX Eagle 1x12 speed drivetrain for a wide gear range
  • SRAM Level T powerful disc drakes
  • Sizes: Small, Medium, Large, X Large
  • Colour: Black
  • The Cannondale Habit Neo is available with 0% APR finance

Cannondale Habit NEO Review

Highlights:

  • Flow Seeker: The head angle is slack, the stays are short and the seat angle is steep. The drive unit and battery sit low and central in the frame. All to help you wring more flow from every inch of trail.
  • One Size Doesn’t Fit: All Riders come in all sizes. Proportional Response is the only design that addresses this fact, tailoring the suspension layout by size so that every rider gets optimal traction, suppleness and control.
  • The Right Stuff: Powerful Bosch Performance CX drive unit and PowerTube battery. 29” wheels with grippy tires. Properly wide bars and properly short stems. Dropper posts. Big brakes. Real parts for real performance.

Proportional Response.
Utilizing size-specific Center-of-Gravity data, the suspension linkage is tailored by size so that every rider experiences optimized suspension performance while braking, climbing and descending.

Built Light. Built Tough.
A BallisTec Carbon frame keeps the mass to a minimum. But since our engineers prioritized durability over gram-counting, confidence is built in (so is a lifetime warranty)(

The Ai Advantage.
Our Ai Offset Drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility. A stiffer, stronger rear wheel is just icing on the cake.

Shock Linkage.
A key part of the Proportional Response suspension design. Each size frame gets its own custom shock links and pivot locations for that "made for you" suspension feel.

Si Motor Mount.
Proprietary Cannondale motor mount positions the Bosch drive unit low and forward in the frame, keeping the Center of Gravity low and the chainstays short for uncommonly agile handling.

Protection.
To protect the motor and battery from damage, Moterra features a sealed battery cover and a burly, trials-style skid plate.

LockR Pivots.
Thru-axle pivot system creates a rock-solid connection between both sides of the swingarm for instantaneous response. No twist, no flex and no special tools required.

Water Bottle.
A place for a real water bottle, right in the front triangle. How about that?

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on any basket over £99
  • UK price match guarantee
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:130mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, 148x12mm thru-axle, post mount brake, tapered headtube
Fork:RockShox Recon RL, 140mm, Solo Air, 15x110, tapered steerer, 51mm offset
Rear Shock:RockShox Deluxe Select R, DebonAir
Headset:Integrated Sealed Bearing, Tapered
Stem:Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0-degree
Bars:Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Front Brake:SRAM Level T hydro disc, 200mm Centerline rotors
Rear Brake:SRAM Level T hydro disc, 200mm Centerline rotors
Brake Lever:SRAM Level T hydro disc
Rear Mech:SRAM SX Eagle
Shifters:SRAM SX Eagle, 12-speed
Speed:10
Rims:WTB STX i29 TCS, 32h, tubeless ready
Front Hub:Formula DC-511, 15x100
Rear Hub:Formula DC-1248, 12x148
Spokes:DT Swiss Champion
Front Tyre:Maxxis Rekon, 29 x 2.6", EXO, tubeless ready
Rear Tyre:Maxxis Rekon, 29 x 2.6", EXO, tubeless ready
Seat Post:TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M), 130mm (L-XL)
Saddle:Fabric Scoop Shallow Sport, steel rails
Chainset:Bosch Gen4 w/ custom Ai offset, 34T
Chain:SRAM SX Eagle, 12-speed
Cassette:SRAM PG-1210, SX Eagle, 11-50, 12-speed
Pedals:Not Included
Battery (Wh):500Wh
Motor:Bosch Performance Line CX 250W
User Interface:Bosch Purion

There are currently no customer reviews

Write your own review

Habit NEO Sizing

Cannondale Habit Neo Sizing

Frame Size

XXS - 13"

4'8"



5'1"

XS - 15"

5'1"



5'4"

S - 16"

5'4"



5'7"

M - 18"

5'7"



5'10"

L - 19"

5'10"



6'0"

XL - 20"

6'0"



6'3"

XXL - 21"

6'3"



6'5"

XXXL - 22"

6'5"



6'9"

Read our bike size guide for more information on sizing.





REPLACE MODEL Geometry

Cannondale Habit NEO geometry



SM

MD

LG

XL

Seat tube

40

43

46

51

Top tube horizontal

58.7

61

63.7

66.5

Top tube actual

53.6

55.6

58.2

61.2

Head tube angle

66.5°

66.5°

66.5°

66.5°

Seat tube angle

75°

75°

75°

75°

Standover

53.6

55.6

58.2

61.2

Head tube length

10

11

12

13

Wheelbase

118.1

120.5

123.4

126.3

Front centre

72.8

75.2

78.1

81

Chainstay length

45.5

45.5

45.5

45.5

BB drop

3.8

3.8

3.8

3.8

BB height

34.2

34.2

34.2

34.2

Fork rake

5.1

5.1

5.1

5.1

Trail

10.9

10.9

10.8

10.9

Stack

60.5

61.4

62.3

63.3

Reach

42.5

44.5

47

49.5

All sizes in CM

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric MTB Guide



Electric Mountain Bike Guide

Is an Electric Mountain Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview or our electric bike buying guide to help you decide what type of e bike is right for you.

When you’re choosing an electric mountain bike, there are a few things to look out for, which can help you to work out the quality and performance to expect from a particular model.


Usage & Suspension travel

Just like a regular full suspension or hardtail mountain bike, the amount of available suspension travel on an eMTB varies with the intended use. Depending on the type of mountain bike riding you’ll be doing, you’ll want a bike with longer or shorter suspension travel as well as components suited to more or less technical terrain.

Type

Travel

Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs

Type / Travel / Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs


Frame Material

Most electric mountain bike frames are made from aluminium alloy, although some are made from carbon fibre composite.

Aluminium

Aluminium alloy is lightweight, stiff, strong. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of e bikes, from entry-level and enthusiast bikes, right the way up to top-spec eMTBs.

Carbon Fibre

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The main benefit for electric mountain bikes is that carbon frames are stiffer for improved handling.


Drive Tech

Designed to enable you to have more fun on the trails, all of our electric mountain bikes feature powerful crank drive motors with long lasting lithium-ion battery packs and easily accessible control units.

Motor

Crank drive motors boost your natural pedalling power. The cranks are connected to the motor and the motor is connected to the chainring which then powers the bike forward. The bike senses the pressure that you put though the pedals and then adds an appropriate level of power to make pedalling easier. This additional power is delivered seamlessly, and you will feel like your legs have just become much more powerful. Motors all have a nominal 250w output and are usually provided by big component manufacturers like Bosch, Shimano, Yamaha and Brose.

Illustration showing a electric motor on a electric bike

Battery

Easily charged either on or off the bike the lithium-ion battery pack will offer you long lasting assistance. Where and how you ride will make a big difference to the range that you can expect to achieve from a single charge, but most e bikers find the capacity of these batteries to be more than sufficient. Some brands offer innovative ways to integrate the battery within the frame. 400Wh or 500Wh batteries are most common.

Illustration showing a battery mounted to a ebike frame

Control Units

All electric mountain bikes allow you to adjust the amount of power the motor delivers. This helps to help you manage the battery capacity. Control units have some kind of display that, at the very least, shows remaining battery capacity and the current power mode. Some control units feature a handlebar mounted display unit that displays additional information like estimated range and satellite navigation prompts. Many eMTBs offer Bluetooth and ANT+ connectivity with smartphone apps for fine tuning the motor output and accessing more advanced features.

Illustration showing a heads up display mounted to the handlebars

Groupset

An electric mountain bike’s groupset, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifter
  • Derailleur
  • Chain
  • Cassette

Electric mountain bike groupset components are typically supplied by either Shimano or SRAM, sometimes with additional manufacturers like Magura, Tektro and TRP supplying brake systems. You will mostly find one-by drivetrains with a single front chainring and a wide range rear cassette.

Shimano and SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano and SRAM groupsets to determine which bikes offer the best performance.

Groupset comparison - Shimano & SRAM

Wheel Size

Just like regular mountain bikes, e MTBs are available with different wheel sizes. 27.5” (650b) and 29” wheels are both available but the most common e MTB size is 27.5”+ (6fattie) that bridges the gap between the two.

MTB wheel sizes

27.5” (650b) wheels strike the ideal balance between fast rolling and nimble handling. They are lighter than 29” wheels so are faster to accelerate. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground.

29” wheels roll fastest but are less nimble. These wheels are naturally smoother over rough ground but are heavier and slower to accelerate. Larger riders may find a better fit on a 29er, but smaller riders may find 29” wheels a little cumbersome.

27.5+ (6fattie) wheels feature wider 2.8” – 3.0” tyres and offer more cushioning (float) as well as more grip. With the extra size of the high-volume tyres, the overall wheel diameter is similar to a 29er, so these wheels carry speed very well on rough ground. Plus sized wheels are ideal for electric mountain bikes as they deal best with the extra weight of the motor and battery, and are great for riding more challenging terrain.


Suspension components

Electric mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry Level eMTBs

Entry level electric mountain bikes (up to approximately £2,500) may come supplied with a fork and rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment.
  • Lockout switch.
  • Rebound damping adjustment on models towards the top of the price range.
Mid-range and enthusiast eMTBs

Mid-range and enthusiast eMTBs (up to approximately £5,000) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Compression damping adjustment
Top of the range eMTBs

Top of the range electric bikes (over £5,000) also use components from Fox, RockShox and Manitou, with a few select models using parts from high-end suspension brands like Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High and low speed rebound damping adjustment
  • High and low speed compression damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)

Finance

How do I apply for finance?

Spend £99 or more at Tredz and you can spread the cost. Pay monthly over 6-48 months, interest free (dependent on repayment terms and amount).

1Fill your basket with everything you want from Tredz and go to the checkout.

2During checkout, select the finance option you want as your method of payment.

3You will be sent to our finance provider's secure server to complete your application.

4Finance providers PayPal & V12 will use the information provided to make a decision and complete checkout if you are approved.

Read more about buying on finance

Buy now, pay 12 months later.
Interest free credit with no deposit. Pay nothing for 3 or 6 months on orders over £850, or 12 months on orders over £1,500* *Not available through PayPal Credit

Flexible finance options

Choose your deposit.

Choose your term.

£3,999.99 Your basket + this product

Lowest £0 deposit / 0% interest

£111.12 0% APR

per month

for 36 months

Popular 0% finance

£100.00 0% APR

per month

for 36 months

+ deposit of £400.00
Open Finance Calculator
Representative example: If total purchase price is £1,399.00 with a deposit of £139.90 (10%) and your selected term is 36 months Classic Credit (15.9% APR fixed), you would pay £43.55 per month. Total charge for credit will be £308.70 and total amount repayable is £1567.80, subject to terms and status.

Delivery & Guarantee

UK Delivery Information

We are committed to offering fast and free delivery, whether you're ordering bikes, accessories or clothing. Our standard delivery service is FREE in the UK, regardless of the size and on all orders over £20.

Please note that bulky products and bikes shipped to outlying UK regions are excluded from free shipping.

Please note that Pre-Order dates can sometimes change due to updated stock information.

Click here for more UK and international delivery information.

Returns & Warranty

It's easy to return a product with our 365 day, hassle free returns.

We will give you a full refund or exchange on any item that is returned to us unused/unfitted, in a resaleable condition and in its original packaging (where possible).

Please note: For hygiene reasons, we cannot accept returns of facemasks, undershorts or underwear if the item has been removed/unsealed from its original packaging.

If your item develops a fault or arrives damaged, please contact us first so we can resolve the issue for you as quickly as possible.

For more information please visit our Returns & Warranty page.

What's In The Box

What's In The Box

As cyclists ourselves, we know you will be keen to get out on your new bike as soon as possible. That's why we provide you with all the essential kit you need to get your shiny new bike rolling for the first time.

Most bikes don't come with pedals as standard so we include a set of basic pedals, free of charge with every bike we send out. We will also provide you with a pedal spanner to fit them and a 9-key trail tool, along with full instructions for setting your bike up out of the box. Each bike is sent out with a 16 point, quality control check sheet so you can be confident that your bike has been fully checked by our qualified mechanics.

What's in the box
  • Basic setup instructions
  • 16 point quality control checklist
  • Free tredz multitool
  • Free tred pedal spanner
  • Free basic pedals
  • Free drawstring kit bag
  • Free bike insurance voucher

All these items are provided at no extra charge and are packed into a Tredz drawstring bag that doubles up as a handy backpack for carrying your ride essentials.

  • Basic bike setup instructions
  • Free ‘basic’ pedals
  • Free Tredz pedal spanner
  • Free Tredz 9-key trail tool
  • Free Tredz drawstring bag
  • Free 8 weeks insurance voucher
  • 16 point, quality control check sheet

Tredz Service:

Tredz bikes are fully built & set up to ride
Read our bike setup guide.

Free UK delivery, on a date that suits you
We will ring to choose a suitable day. Find out more
  • Tredz bikes are fully checked & tested by Cytech qualified mechanics
  • 0% APR finance available on any basket over £99
  • Price match
  • 365 day 'no hassle' returns
  • Free UK delivery, on a date that suits you

Show finance options for:

Available finance options:

Months / APR Per month

Buy now, pay later over £850. Find out more Finance provider options available
