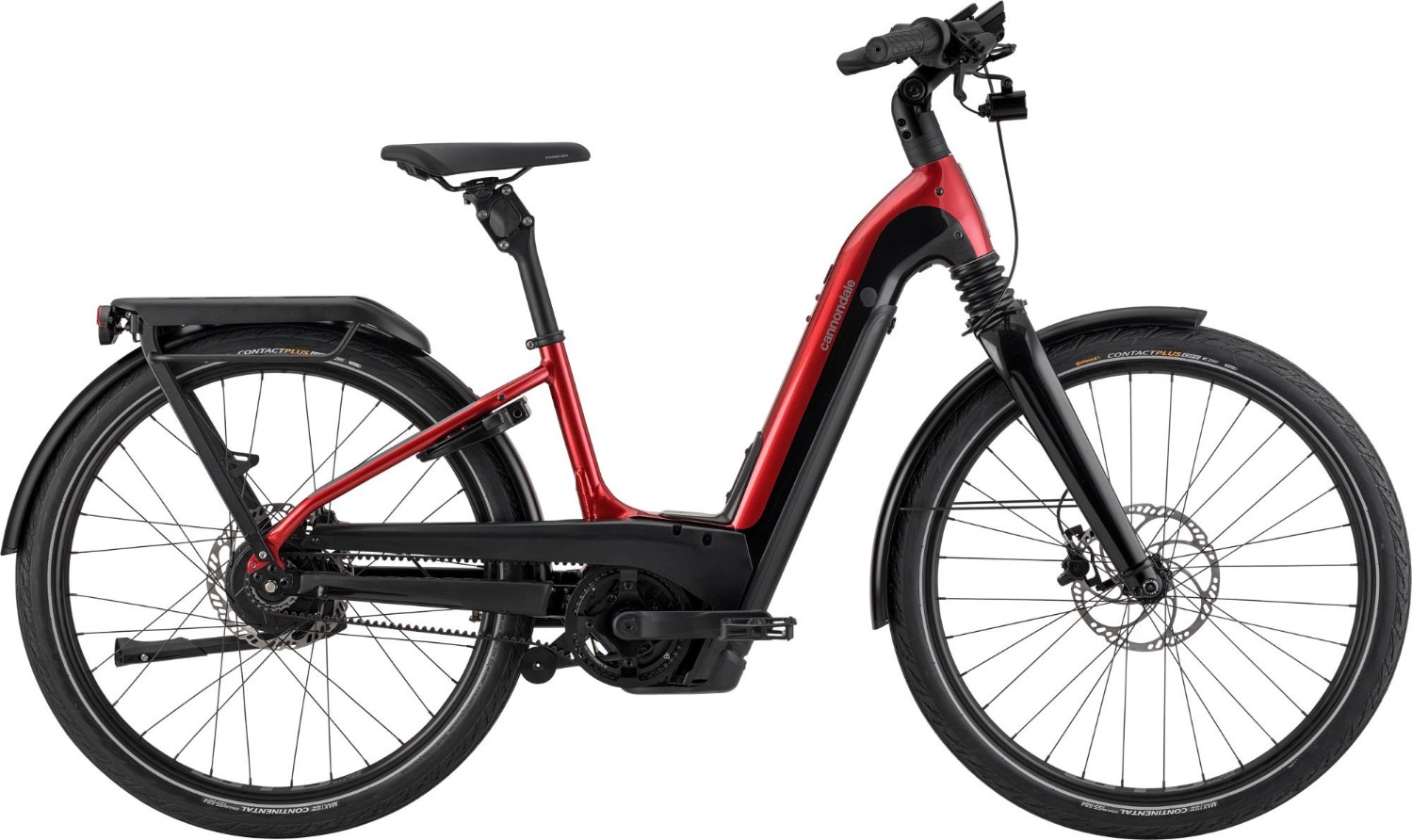

Cannondale Mavaro Neo 1 Low StepThru 2022 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C1 Alloy, low step-thru, removable 750Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection |
| Fork | All-New Cannondale HeadShok, 50mm travel, Quad Cage needle bearing internals, coil spring, twin chamber semi open-bath oil damping, post mount disc, 110x15mm thru-axle |
| Headset | Integrated Sealed Bearing, Tapered, internal cable routing |
| Stem | Cannondale Urban Intellimount, adjustable, internal cable routing, SP-Connect compatible phone mount |
| Bars | Cannondale Urban Backsweep |
| Front Brake | Magura CT 2-piston hydraulic disc, MDR-C rotors, 203mm/203mm |
| Rear Brake | Magura CT 2-piston hydraulic disc, MDR-C rotors, 203mm/203mm |
| Brake Lever | Magura CT hydraulic disc |
| Shifters | Enviolo Trekking stepless controller, twist style |
| Rims | WTB STX i30 TCS, 32h, tubeless ready |
| Front Hub | Shimano MT400, 15x110mm thru-axle |
| Rear Hub | Enviolo Trekking, continuously variable transmission, wide range internal hub |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Continental Contact Cruiser, 29 x 2.2" 55-622 (L/XL), Urban Contact 27.5 x 2.2" 55-584 (S/M) |
| Rear Tyre | Continental Contact Cruiser, 29 x 2.2" 55-622 (L/XL), Urban Contact 27.5 x 2.2" 55-584 (S/M) |
| Seat Post | Parallelogram Suspension Seatpost, 31.6, 300mm (SM/MD), 400mm (LG/XL) |
| Saddle | Selle Royale Essenza |
| Chainset | Gates Bosch E-bike, w/ 46T sprocket |
| Chain | Gates CDX high performance carbon drive belt |
| Cassette | Gates CDX, 22T |
| Battery Size (WH) | Bosch PowerTube 750Wh |
| Motor | Bosch Performance Line CX 250W |
| User Interface | Bosch Kiox 300 w/ LED remote |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
