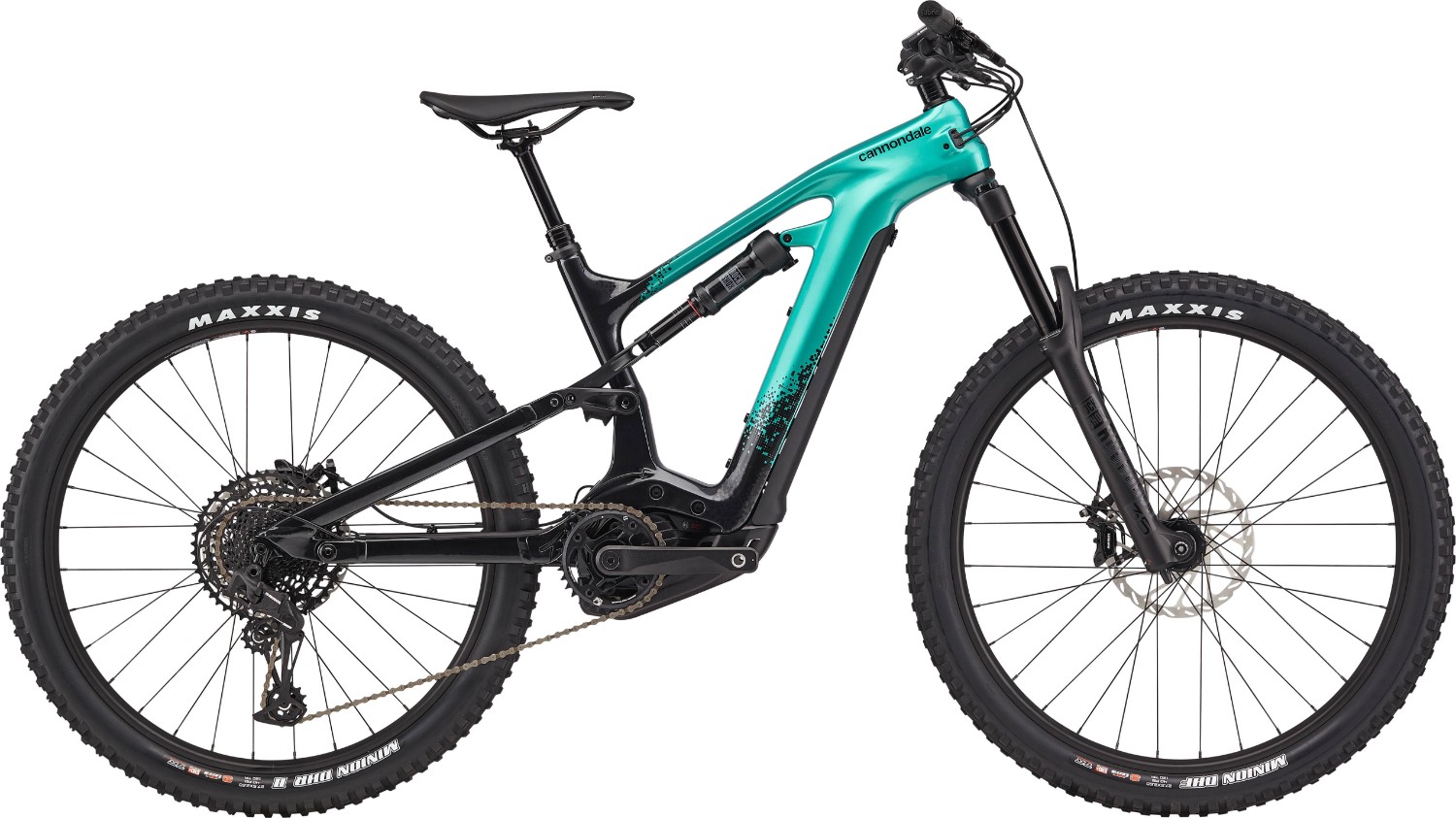

Cannondale Moterra 3 2020 - Electric Mountain Bike
- ShowProduct Information The Cannondale Moterra is an e-mountain bike with infinite capability. The shackles are off, go ride... read more
- Show Customer Reviews (4)
- Show Electric Bike Size Guide
- Show Electric MTB Guide
- Show Finance
- Show Delivery & Guarantee
- Show What's In The Box
The Cannondale Moterra is an e-mountain bike with infinite capability. The shackles are off, go ride the unrideable. Again and again.
- BallisTec carbon front triangle with alloy swing arm
- RockShox 35 Gold fork offers 160mm of suspension travel
- RockShox Deluxe Select R shock controls the 160mm of rear wheel travel
- SRAM SX Eagle 1x12 speed drivetrain for a very wide range of gears
- SRAM Guide RE disc brakes for powerful stopping
- Sizes: Small, Medium, Large, X Large
- Colours: Turquoise, Matt Black
- The Cannondale Moterra 3 is available with 0% APR finance
- Motor: Bosch Performance Line CX, 340% max support, 75Nm
- Battery: 500Wh downtube integrated battery pack
- User Interface / Display: Bosch Purion
- Connectivity: Bluetooth smart phone app
- It Rails Impressively precise. Uncommonly agile. With its low center of gravity, modern geometry and short chainstays, Moterra's handling is in a class of its own.
- One Size Doesn’t Fit All: Riders come in all sizes. Proportional Response is the only design that addresses this fact, tailoring the suspension layout by size so that every rider gets optimal traction, suppleness and control.
- Power & Style: Bosch's powerful Performance CX drive unit and a long-lasting PowerTube battery integrate cleanly into Moterra's burly carbon frame. The power and range to ride anything — in a beautiful package.
- All-Mountain Ready: Built to go hard with 160mm of dialed suspension. Big, grippy tires. 29" wheels (27.5 on the S for the best fit). Properly wide bars and properly short stems. Powerful brakes and dropper posts. The good stuff.
Utilizing size-specific Center-of-Gravity data, the suspension linkage is tailored by size so that every rider experiences optimized suspension performance while braking, climbing and descending.
Built Light. Built Tough.
A BallisTec Carbon frame keeps the mass to a minimum. But since our engineers prioritized durability over gram-counting, confidence is built in (so is a lifetime warranty)(
The Ai Advantage.
Our Ai Offset Drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility. A stiffer, stronger rear wheel is just icing on the cake.
A key part of the Proportional Response suspension design. Each size frame gets its own custom shock links and pivot locations for that "made for you" suspension feel.
Si Motor Mount.
Proprietary Cannondale motor mount positions the Bosch drive unit low and forward in the frame, keeping the Center of Gravity low and the chainstays short for uncommonly agile handling.
To protect the motor and battery from damage, Moterra features a sealed battery cover and a burly, trials-style skid plate.
Thru-axle pivot system creates a rock-solid connection between both sides of the swingarm for instantaneous response. No twist, no flex and no special tools required.
A place for a real water bottle, right in the front triangle. How about that?
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
|Frame:||160mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, 148x12mm thru-axle, post mount brake, tapered headtube|
|Fork:||RockShox 35 Gold RL, 160mm, DebonAir, 15x110, tapered steerer, 51mm offset|
|Rear Shock:||RockShox Deluxe Select R, DebonAir|
|Headset:||Integrated Sealed Bearing, Tapered|
|Stem:||Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0-degree|
|Bars:||Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm|
|Front Brake:||SRAM Guide RE hydro disc, 4-piston, 220mm Centerline rotors|
|Rear Brake:||SRAM Guide RE hydro disc, 4-piston, 200mm Centerline rotors|
|Brake Lever:||SRAM Guide RE hydro disc|
|Rear Mech:||SRAM SX Eagle|
|Shifters:||SRAM SX Eagle, 12-speed|
|Rims:||WTB ST i29 TCS, 32h, tubeless ready|
|Front Hub:||Formula 15x110|
|Rear Hub:||Formula DC-1248, 12x148|
|Spokes:||DT Swiss Champion|
|Front Tyre:||Maxxis Minion DHF, 27.5/29 x 2.6", 3C compound, EXO+, tubeless ready|
|Rear Tyre:||Maxxis Minion DHR II, 27.5/29 x 2.6", 3C compound, EXO+, tubeless ready|
|Seat Post:||TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M), 130mm (L-XL)|
|Saddle:||Fabric Scoop Shallow Sport, steel rails|
|Chainset:||Bosch Gen4 w/ custom Ai offset, 34T|
|Chain:||SRAM SX Eagle, 12-speed|
|Cassette:||SRAM PG-1210, SX Eagle, 11-50, 12-speed|
|Pedals:||Basic Resin Flat|
|Motor:||Bosch Performance Line CX 250W|
|User Interface:||Bosch Purion|
