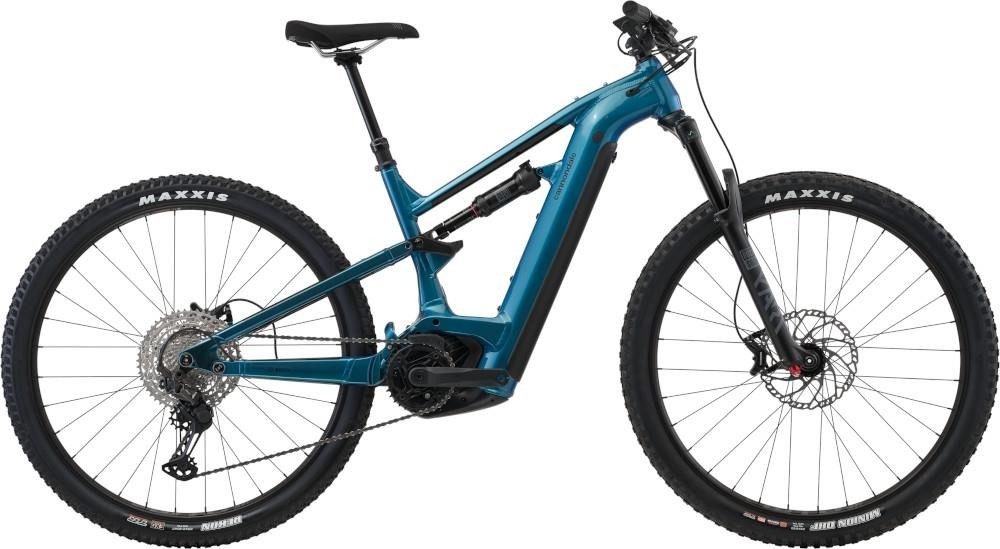

Cannondale Moterra Neo 3 - Nearly New - M 2022 - Electric Mountain Bike
This Moterra Neo 3 - Nearly New - M electric bike is rated as an Excellent Grade which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the down tube and rear shock.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.
Breaking Boundaries
A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling, smooth power and huge range, nothing is out of reach.
Powered By Bosch
Bosch's most powerful eMTB drive unit, the Performance Line CX, delivers an unreal riding experience. With 85Nm of available torque, it can boost your output by up to 340% in a completely natural, intuitive-feeling way. This is e-mountain bike power at its best.
Proportional Response Suspension
Riders come in all sizes, but our Proportional Response suspension is the only design that addresses this pretty obvious fact. Each size frame gets its own custom suspension kinematics - different mounting points, links and leverage ratios - for truly size-specific suspension performance. Better traction, more efficient pedaling, and more active suspension under braking for every rider.
750Wh Battery
Go longer. Do more laps. Explore the furthest peaks.With the largest battery Bosch makes, range anxiety is a thing of the past. Charge it on the bike, or remove it easily for off-bike charging.
Built Light, Built Tough
A sophisticated carbon fiber main frame keeps mass to a minimum. And since our engineers prioritized durability over gram counting, confidence is built in (as is a lifetime warranty).
Key Benefits
- Trail Riding Perfection. With 150mm of travel front and rear, tons of power and incredibly capable components, this rig is at home on any trail, anywhere.
- Bosch Power. Climb higher. Shred harder. Ride further. With the largest battery and most powerful drive unit from the most respected name in e-bikes, there's no such thing as "can't".
- Built for You. Power and range are just the beginning. What makes the Moterra Neo really shine is how it handles. With our Proportional Response size-specific design, each frame size gets its own unique suspension layout, geometry, and frame construction, so it handles like it was built just for you. Because it was.
- Ride Easy. Life is hard enough, so we made it easier. Simple battery removal, rack and fender mounts, kickstand compatibility, and room for a water bottle on all sizes
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Moterra Neo, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, injection molded skid plate, 55mm chainline, 148x12mm thru-axle, tapered headtube |
| Fork | RockShox Yari RC, 150mm, 15x110mm Boost, 42mm offset |
| Rear Shock | RockShox Deluxe Select, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Headset | Integrated Sealed Bearing, Tapered |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 0° |
| Bars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Front Brake | Shimano MT420 4-piston hydraulic disc, 203/203mm rotors |
| Rear Brake | Shimano MT420 4-piston hydraulic disc, 203/203mm rotors |
| Brake Lever | Shimano MT401 hydraulic disc |
| Front Mech | Null |
| Rear Mech | Shimano XT |
| Shifters | Shimano Deore M6100, 12-speed |
| Speed | 12 |
| Rims | WTB ST i30 TCS, 32h, Tubeless ready |
| Front Hub | (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle |
| Rear Hub | (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle |
| Spokes | Stainless Steel, 14g |
| Front Tyre | (F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6", EXO, tubeless ready |
| Rear Tyre | (F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6", EXO, tubeless ready |
| Seat Post | TranzX dropper, internal routing, 31.6, 120mm (XS-S), 130mm (M-XL) |
| Saddle | Fabric Scoop Shallow Sport, steel rails |
| Chainset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Bottom Bracket | Null |
| Chain | Shimano Deore 6100, 12-speed |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Bosch PowerTube 750Wh |
| Motor | Bosch Performance Line CX 250W |
| User Interface | Bosch Kiox 300 w/ LED remot |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
