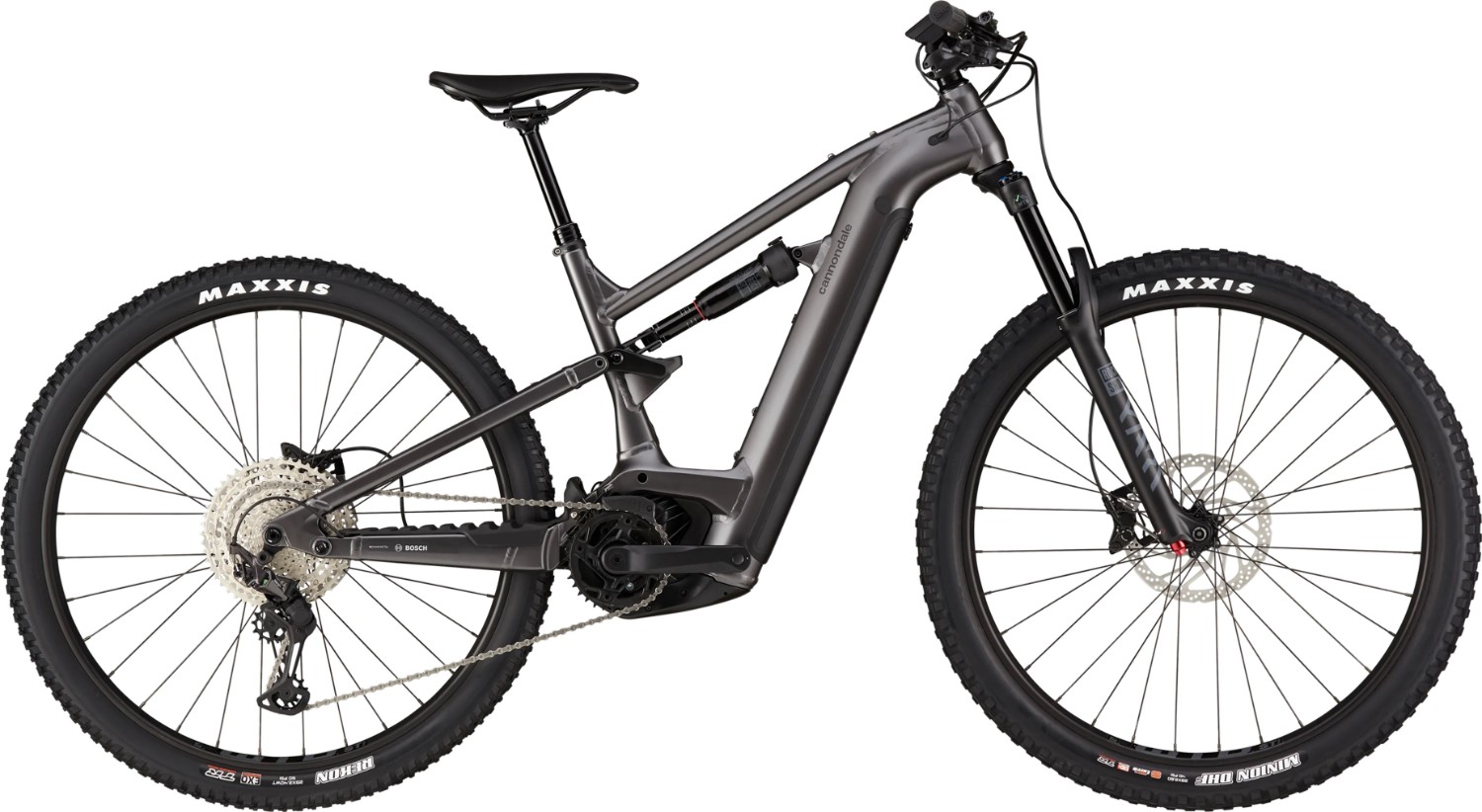

Cannondale Moterra Neo 4 2024 - Electric Mountain Bike
The Cannondale Moterra Neo 4 is designed for true all-mountain capability. It boasts a SmartForm C2 Alloy frame with 150mm of suspension travel, ensuring precise handling and endless trail-riding fun.
Key Features:
- Frame: SmartForm C2 Alloy, 150mm travel, internal cable routing
- Front Suspension: RockShox 35 Silver R, 150mm travel
- Rear Suspension: RockShox Deluxe Select R, DebonAir
- Drivetrain: SRAM SX/NX Eagle, 12-speed
- Brakes: TRP Slate G4, 4-piston hydraulic disc
- Wheels: 29" WTB ST i30 TCS, Maxxis Rekon tyres
- Other Standout Feature: Removable downtube battery
- Finance Option: Available with 0% APR finance
Drive Information:
- Motor: Bosch Performance Line CX 250W
- Battery: Bosch PowerTube, 625Wh
- User Interface: Bosch Kiox 300 w/ LED Remote
Offering a range of up to 125Km (75mi), this e-bike allows you to conquer any trail with ease. Its low centre of gravity, progressive geometry, and short chainstays ensure precise and agile handling, making every ride incredibly fun and responsive.
The SmartForm C2 aluminium frame with 150mm of suspension travel provides all-day comfort and control. Fast-rolling 29" tyres and wide handlebars keep you steady on rough terrain, while the huge gear range from the SRAM SX/NX Eagle drivetrain lets you tackle any incline with confidence. The TRP Slate G4 4-piston hydraulic disc brakes deliver powerful and reliable stopping power, ensuring safety on steep descents.
Equipped with a RockShox 35 Silver R fork and a RockShox Deluxe Select R rear shock, the Moterra Neo 4 offers smooth and controlled suspension performance.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube |
| Fork | RockShox 35 Silver R, 150mm, Solo Air, 15x110mm stealth thru-axle, tapered steerer, 51mm offset |
| Rear Shock | RockShox Deluxe Select R, DebonAir |
| Stem | Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7° |
| Bars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Front Brake | TRP Slate G4 4 Piston hydraulic disc, 200/200mm rotors |
| Rear Brake | TRP Slate G4 4 Piston hydraulic disc, 200/200mm rotors |
| Brake Lever | TRP hydraulic disc |
| Rear Mech | SRAM SX Eagle |
| Shifters | SRAM NX Eagle, 12-speed |
| Speed | 12 |
| Rims | WTB ST i30 TCS, 32h, Tubeless ready |
| Front Hub | Shimano MT400, 15x110mm thru-axle / |
| Rear Hub | Shimano MT400, 12x148mm thru-axle |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Maxxis Rekon, 29x2.6", 60TPI Exo |
| Rear Tyre | Maxxis Rekon, 29x2.6", 60TPI Exo |
| Seat Post | TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL) |
| Saddle | Cannondale Ergo XC |
| Chainset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Bottom Bracket | Integrated |
| Chain | SRAM SX Eagle, 12-speed |
| Cassette | Shimano Deore, Hyperglide, 10-51, 12-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Bosch PowerTube, 625Wh |
| Motor | Bosch Performance Line CX 250W |
| User Interface | Bosch Kiox 300 w/ LED remote |
Cannondale Moterra Size Chart
|
Frame Size |
Height (cm) |
Height (Feet) |
|
Small |
154 – 165 |
5’ 1” – 5’ 5” |
|
Medium |
162 – 175 |
5’ 4” – 5’ 9” |
|
Large |
172 – 185 |
5’ 8” – 6’ 1” |
|
X Large |
182 – 195 |
6’ 0” – 6’ 5” |
