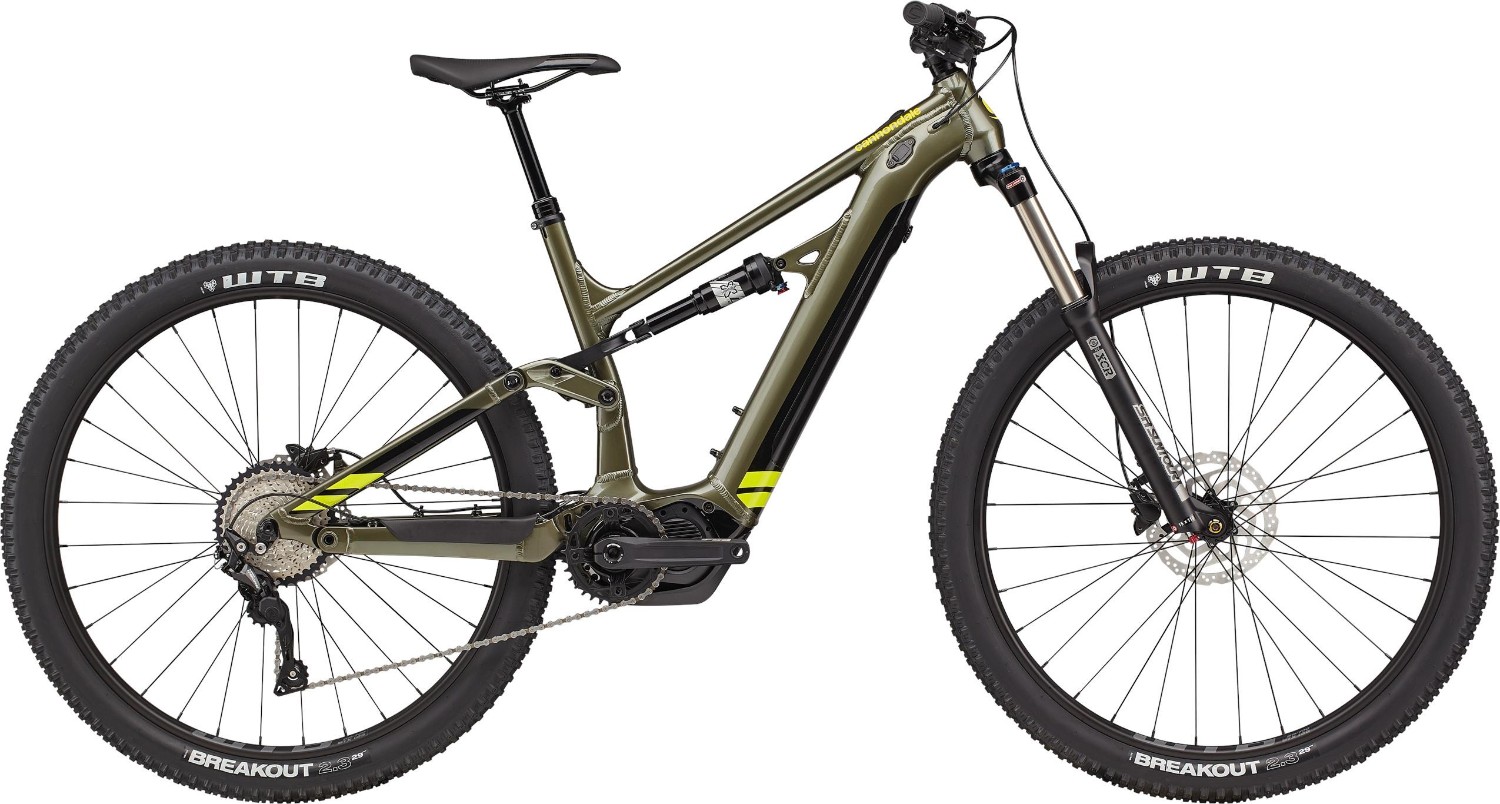

Cannondale Moterra Neo 5 2021 - Electric Mountain Bike
Pure Power Metal. An aluminium e-mountain bike with infinite capability for the steepest descents and the hardest climbs – with fully integrated all-mountain e-bike technology.
Key Features:
- SmartForm C2 Alloy frame, 150mm travel / SR Suntour XCR LO Boost fork
- Shimano Deore 10-speed drivetrain / hydraulic disc brakes
- Shimano STEPS E7000 drive unit / 504Wh battery / Range: up to 100km (60mi)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube |
| Fork | SR Suntour XCR LO Boost 29, 140mm travel, 15mm thru axle, Tapered Alloy Steerer |
| Rear Shock | X-Fusion 02 Pro RL, Rebound and Lockout |
| Headset | Integrated Sealed Bearing, Tapered |
| Stem | 3D Forged 6061 Alloy, 1-1/8", 31.8, 7° |
| Bars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Front Brake | Shimano MT200 hydraulic disc, 180mm RT10 rotors |
| Rear Brake | Shimano MT200 hydraulic disc, 180mm RT10 rotors |
| Brake Lever | Shimano MT200 hydraulic disc |
| Rear Mech | Shimano Deore |
| Shifters | Shimano Deore, 10-speed |
| Speed | 10 |
| Rims | WTB STX i25 TCS, 32h, tubeless ready |
| Front Hub | Shimano MT400, 15x110mm thru-axle |
| Rear Hub | Shimano MT400 12x148 |
| Spokes | Stainless Steel, 14g |
| Front Tyre | WTB Breakout, 29 x 2.3", DNA Compound, Comp Level, 30TPI |
| Rear Tyre | WTB Breakout, 29 x 2.3", DNA Compound, Comp Level, 30TPI |
| Seat Post | TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL) |
| Saddle | Cannondale Ergo XC |
| Chainset | FSA Shimano E-Bike, 165mm, FSA Megatooth, 34T |
| Chain | Shimano Deore, 10-speed |
| Cassette | Shimano HG500, 11-42, 10-speed |
| Battery Size (WH) | Shimano STEPS BT-E8035, 504Wh |
| Motor | Shimano STEPS DU-E7000 250W |
| User Interface | Shimano SC-E7000, Bluetooth connected |
Cannondale Moterra Neo 2021 Size Chart
|
Frame Size |
Height (cm) |
Height (Feet) |
|
Small |
160 – 170 |
5’ 3” – 5’ 7” |
|
Medium |
170 – 178 |
5’ 7” – 5’ 10” |
|
Large |
178 – 188 |
5’ 10” – 6’ 2” |
|
X Large |
188 – 196 |
6’ 2” – 6’ 5” |
Cannondale Moterra Neo 2021 Geometry
|
|
Small |
Medium |
Large |
X Large |
|
Seat Tube Length (cm) |
43 |
45 |
48 |
51 |
|
Top Tube Horizontal (cm) |
57.9 |
60.4 |
62.9 |
65.6 |
|
Top Tune Actual (cm) |
53.9 |
56.2 |
58.8 |
61.7 |
|
Head Tube Angle |
65° |
65° |
65° |
65° |
|
Seat Tube Angle |
76° |
76° |
76 |
76° |
|
Standover (cm) |
72.7 |
73.5 |
74.5 |
77.0 |
|
Head Tube Length (cm) |
11.5 |
11.5 |
11.5 |
12.4 |
|
Wheelbase (cm) |
120.9 |
123.4 |
125.9 |
128.8 |
|
Front Centre (cm) |
75.6 |
78.1 |
80.6 |
83.5 |
|
Chainstay Length (cm) |
45.5 |
45.5 |
45.5 |
45.5 |
|
Bottom Bracket Drop (cm) |
3 |
3 |
3 |
3 |
|
Bottom Bracket Height (cm) |
35 |
35 |
35 |
35 |
|
Fork Rake (cm) |
5.1 |
5.1 |
5.1 |
5.1 |
|
Trail (cm) |
12.1 |
12.1 |
12.1 |
12.1 |
|
Stack (cm) |
61.7 |
61.7 |
61.7 |
62.6 |
|
Reach (cm) |
42.5 |
45.0 |
47.5 |
50.0 |
What size frame do I need if I am between sizes? - read here
