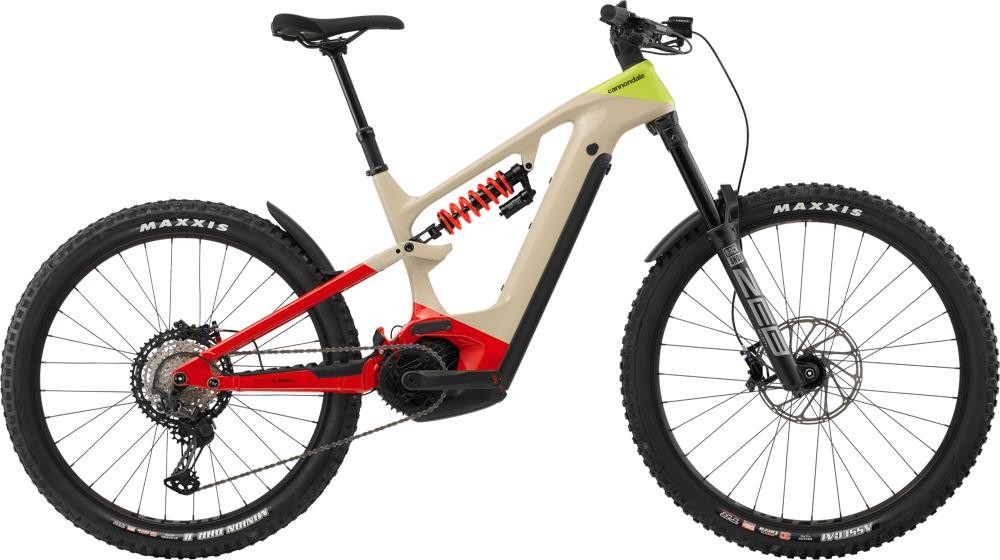

Cannondale Moterra Neo Carbon LT 1 2023 - Electric Mountain Bike
- Rowdy Ready. With 170mm of travel up front and 165mm in the rear, a piggyback coil shock and burly components, Moterra Neo LT lives to session your local trails, or get in deep in the high mountains.
- Absolute Power. When you’ve got the most powerful, advanced systems from the most respected name in e-bike technology, even the uphills have flow.
- Built For You. Big power makes it easy, but the handling is what makes it rip. With our Proportional Response sizespecific design, each frame size gets its own unique suspension layout, geometry, and frame construction, so it handles like it was made just for you. Telepathic response, silky smooth suspension, and endless grip - the way it should be.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 160mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 148x12mm thru-axle, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
Fork | RockShox Zeb Select +, Charger RC, 170mm, DebonAir, 15x110mm, 51mm offset |
Rear Shock | RockShox Deluxe Select+, Coil, 2-Pos mode adjust, adjustable rebound |
Headset | Acros integrated sealed bearing, tapered |
Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
Bars | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
Front Brake | SRAM Code RSC hydraulic disc, 4-piston, CenterLine 220/200mm rotors |
Rear Brake | SRAM Code RSC hydraulic disc, 4-piston, CenterLine 220/200mm rotors |
Brake Lever | SRAM Code RSC hydraulic disc |
Front Mech | Null |
Rear Mech | Shimano XT |
Shifters | Shimano XT, 12-speed |
Speed | 12 |
Rims | WTB KOM Trail i30 TCS, 32h, tubeless ready |
Front Hub | (F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle |
Rear Hub | (F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle |
Spokes | DT Swiss Champion |
Front Tyre | Maxxis Assegai, 29 x 2.6", 3C, EXO+, tubeless ready |
Rear Tyre | Maxxis DHR II, 27.5 x 2.6", 3C, EXO+, tubeless ready |
Seat Post | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
Saddle | Fabric Magic Elite Saddle, cro-mo rails |
Chainset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
Bottom Bracket | Null |
Chain | Shimano XT, 12-speed |
Cassette | Shimano XT, 10-51, 12-speed |
Pedals | Resin Platform |
Battery Size (WH) | Bosch PowerTube 750Wh |
Motor | Bosch Performance CX 250W |
User Interface | Bosch Kiox 300 w/ LED remote |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
