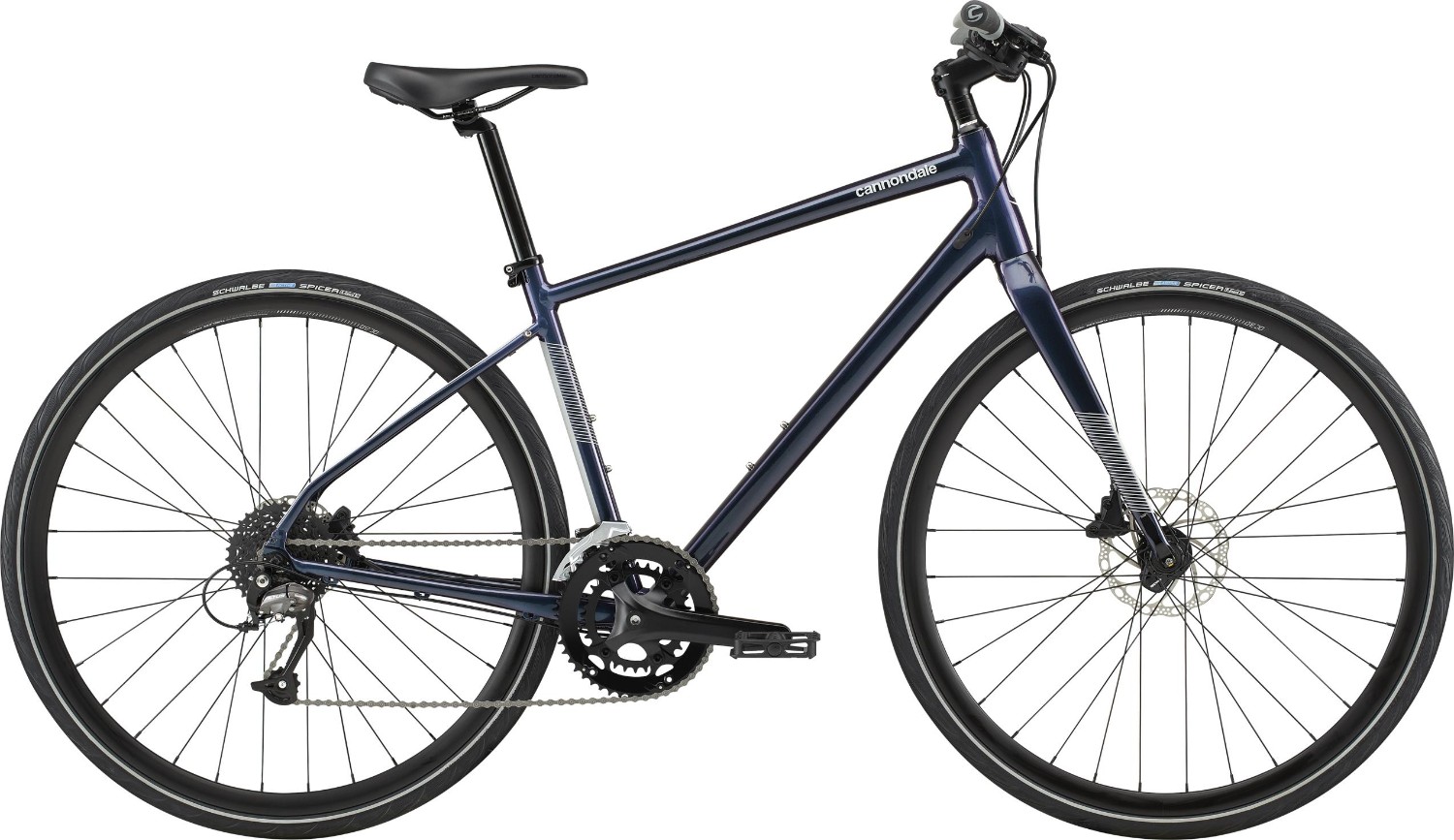

Cannondale Quick 3 Disc 2023 - Hybrid Sports Bike
The Cannondale Quick 3 Disc is an everyday hybrid bike featuring a Smartform C3 alloy frame with hidden cable routing for a sleek appearance and improved aerodynamics. Its full carbon fork ensures precise handling and absorbs road vibrations, providing a smooth and responsive ride. With 18-speed Shimano Altus drivetrain, Tektro hydraulic disc brakes, and durable Cannondale disc wheels with Schwalbe Spicer tyres, this bike delivers reliability and performance on every journey.
Key Features:
- Frame: Smartform C3 alloy, tapered head tube, flat mount disc, rack/fender mounts.
- Fork: Full carbon, 12x100mm thru-axle, flat mount disc, fender mounts.
- Drivetrain: Shimano Altus 2x9 speed, Prowheel 48/32 chainset, Sunrace 11-34 cassette.
- Brakes: Tektro hydraulic disc, 140mm front rotors, 160mm rear rotors.
- Wheels: Cannondale disc, double wall, 32h, with Schwalbe Spicer 700 x 35c tyres.
- Other Feature: 360° reflectivity for enhanced safety.
- Finance Option: Available with 0% APR finance.
Uncover the joy of cycling with the Cannondale Quick 3 Disc. The lightweight Smartform C3 alloy frame ensures agile handling, while the full carbon fork provides precision on any terrain. The Shimano Altus drivetrain offers smooth and reliable gear changes, complemented by Tektro hydraulic disc brakes for confident stopping power. Cannondale disc wheels, featuring Schwalbe Spicer tyres with reflective strips, enhance traction and durability.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
| Fork | Full carbon, 12x100mm thru-axle, 1-1/4" to 1-1/8" tapered steerer, flat mount disc, fender mounts, 360° reflectivity |
| Headset | FSA Sealed Bearing, Integrated, 1-1/4"-1-1/8" |
| Stem | Cannondale 3 with Intellimount, alloy, 31.8mm clamp |
| Bars | Cannondale Riser, 6061 Alloy, 18mm rise, 8° back, 4° up, 640mm |
| Front Brake | Tekro hydraulic disc, 140mm rotors |
| Rear Brake | Tekro hydraulic disc, 160mm rotors |
| Brake Lever | Tektro hydraulic disc |
| Front Mech | Shimano Acera, 31.8mm clamp |
| Rear Mech | Shimano Altus |
| Shifters | Shimano Altus, 2x9 |
| Speed | 18 |
| Rims | Cannondale Disc, double wall, 32h |
| Front Hub | Formula CRX-512, 12x100 |
| Rear Hub | Formula DC-1422 QR |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Schwalbe Spicer, 700 x 35c, K-Guard, reflective strip |
| Rear Tyre | Schwalbe Spicer, 700 x 35c, K-Guard, reflective strip |
| Seat Post | 6061 Alloy, 27.2 x 350mm |
| Saddle | Cannondale Fitness Ergo Double Density |
| Chainset | Prowheel, 48/32 |
| Bottom Bracket | Tange Cartridge, square taper |
| Chain | KMC Z9, 9-speed |
| Cassette | Sunrace, 11-34, 9-speed |
| Pedals | Cannondale Fitness Reinforced Composite |
Cannondale Quick Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
157 – 170 |
5’2” – 5’7” |
|
M |
165 – 177 |
5’5” – 5’10” |
|
L |
175 – 187 |
5’9” – 6’2” |
|
XL |
182 – 195 |
6’0” – 6’5” |
Cannondale Quick Geometry Chart
| Size | SM | MD | LG | XL | 2XL |
|---|---|---|---|---|---|
| Stack | 554 | 578 | 602 | 626 | 650 |
| Reach | 398 | 406 | 414 | 422 | 430 |
| Head Tube Length | 133 | 158 | 184 | 209 | 234 |
| Head Tube Angle | 71.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| Bottom Bracket Height | 282 | 282 | 282 | 282 | 282 |
| Bottom Bracket Drop | 68 | 68 | 68 | 68 | 68 |
| Trail | 62 | 62 | 62 | 62 | 62 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 |
| Front Centre | 627 | 643 | 660 | 676 | 692 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1053 | 1069 | 1086 | 1102 | 1118 |
| Top Tube Length (horizontal) | 567 | 583 | 598 | 613 | 628 |
| Standover Height | 699 | 741 | 782 | 822 | 862 |
| Seat Tube Length | 400 | 450 | 500 | 550 | 600 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
