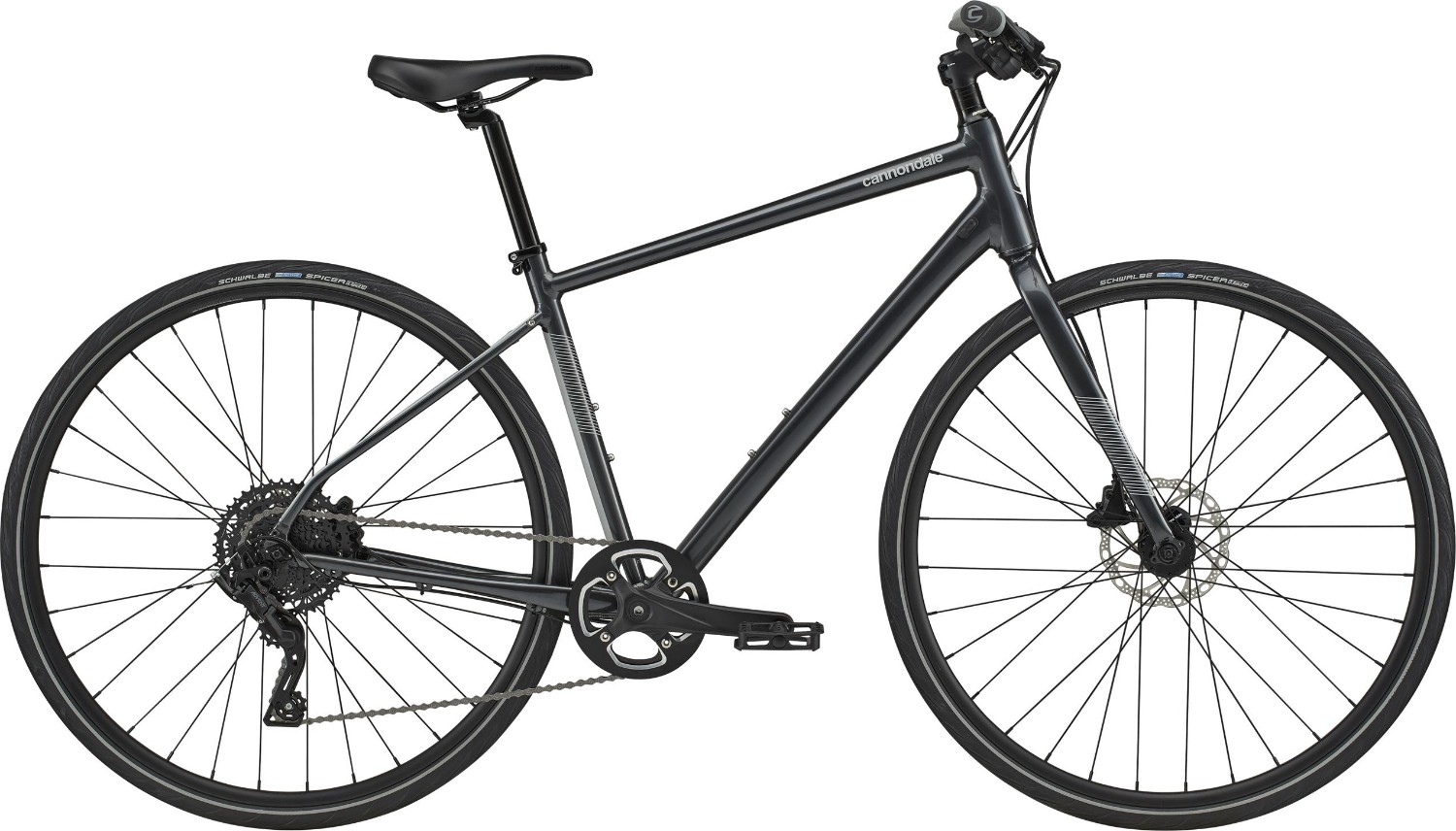

Cannondale Quick 4 Disc 2023 - Hybrid Sports Bike
The Cannondale Quick is a fitness bike that's equally perfect for city cruising or fitness riding. Plus, it's easy on the eyes. With lightest-in-class weights, bright reflective graphics, and a smooth, stable ride, the Quick is the fast, fun way to get fit or get around town.
- The Smartform C3 Alloy frame offers a frame the lightest in its class
- Mudguard and pannier rack mounts make for an all year round commuter
- Chromoly fork with 360-degree reflectivity to improve visibility in low light conditions
- Colours: Graphite, Bio Lime, Rally Red, Deep Teal
- Sizes: Small, Medium, Large, Extra Large, Extra Extra Large
- The Cannondale Quick 4 Disc 2022 is available with 0% APR finance
Lighter is Better.
In true Cannondale form, Quick bikes are the lightest in their class. Easier to pedal, easier to lift, easier to love!
Be Seen.
All Quick models feature bright 360° reflective elements for that extra measure of safety.
Comfort is King.
Enhanced SAVE Micro-Suspension features in the rear triangle, plus ergonomic grips, saddle and pedals keep riders comfortable and connected.
Confident Control.
Our OutFront Steering Geometry makes the Quick so stable, so confident and such swoopy fun to ride, that you might just forget you’re working out.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
| Fork | Chromoly, 1-1/8" steerer, flat mount disc, fender mounts, 360° reflectivity |
| Headset | FSA Sealed Bearing, Integrated, 1-1/8" |
| Stem | Cannondale 3 with Intellimount, alloy, 31.8mm clamp |
| Bars | 6061 double-butted, 25mm rise, 8° sweep, 6° rise, 640mm |
| Front Brake | Tektro Hydro disc, 160mm |
| Rear Brake | Tektro Hydro disc, 160mm |
| Brake Lever | Tektro hydro disc |
| Rear Mech | microSHIFT Advent |
| Shifters | microSHIFT Advent, 9-speed |
| Speed | 9 |
| Rims | Cannondale Disc, double wall w/eyelet, 32h |
| Front Hub | Sealed Alloy Disc, QR |
| Rear Hub | Sealed Alloy Disc, QR |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Schwalbe Spicer, 700 x 35c, K-Guard, reflective strip |
| Rear Tyre | Schwalbe Spicer, 700 x 35c, K-Guard, reflective strip |
| Seat Post | 6061 Alloy, 27.2 x 350mm |
| Saddle | Cannondale Fitness Ergo Double Density |
| Chainset | Prowheel alloy, 38T |
| Bottom Bracket | Tange Cartridge, square taper |
| Chain | KMC Z9, 9-speed |
| Cassette | icroSHIFT, 11-42, 9-speed |
| Pedals | Cannondale Fitness |
Cannondale Quick Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
157 – 170 |
5’2” – 5’7” |
|
M |
165 – 177 |
5’5” – 5’10” |
|
L |
175 – 187 |
5’9” – 6’2” |
|
XL |
182 – 195 |
6’0” – 6’5” |
Cannondale Quick Geometry Chart
| Size | SM | MD | LG | XL | 2XL |
|---|---|---|---|---|---|
| Stack | 554 | 578 | 602 | 626 | 650 |
| Reach | 398 | 406 | 414 | 422 | 430 |
| Head Tube Length | 133 | 158 | 184 | 209 | 234 |
| Head Tube Angle | 71.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| Bottom Bracket Height | 282 | 282 | 282 | 282 | 282 |
| Bottom Bracket Drop | 68 | 68 | 68 | 68 | 68 |
| Trail | 62 | 62 | 62 | 62 | 62 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 |
| Front Centre | 627 | 643 | 660 | 676 | 692 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1053 | 1069 | 1086 | 1102 | 1118 |
| Top Tube Length (horizontal) | 567 | 583 | 598 | 613 | 628 |
| Standover Height | 699 | 741 | 782 | 822 | 862 |
| Seat Tube Length | 400 | 450 | 500 | 550 | 600 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
