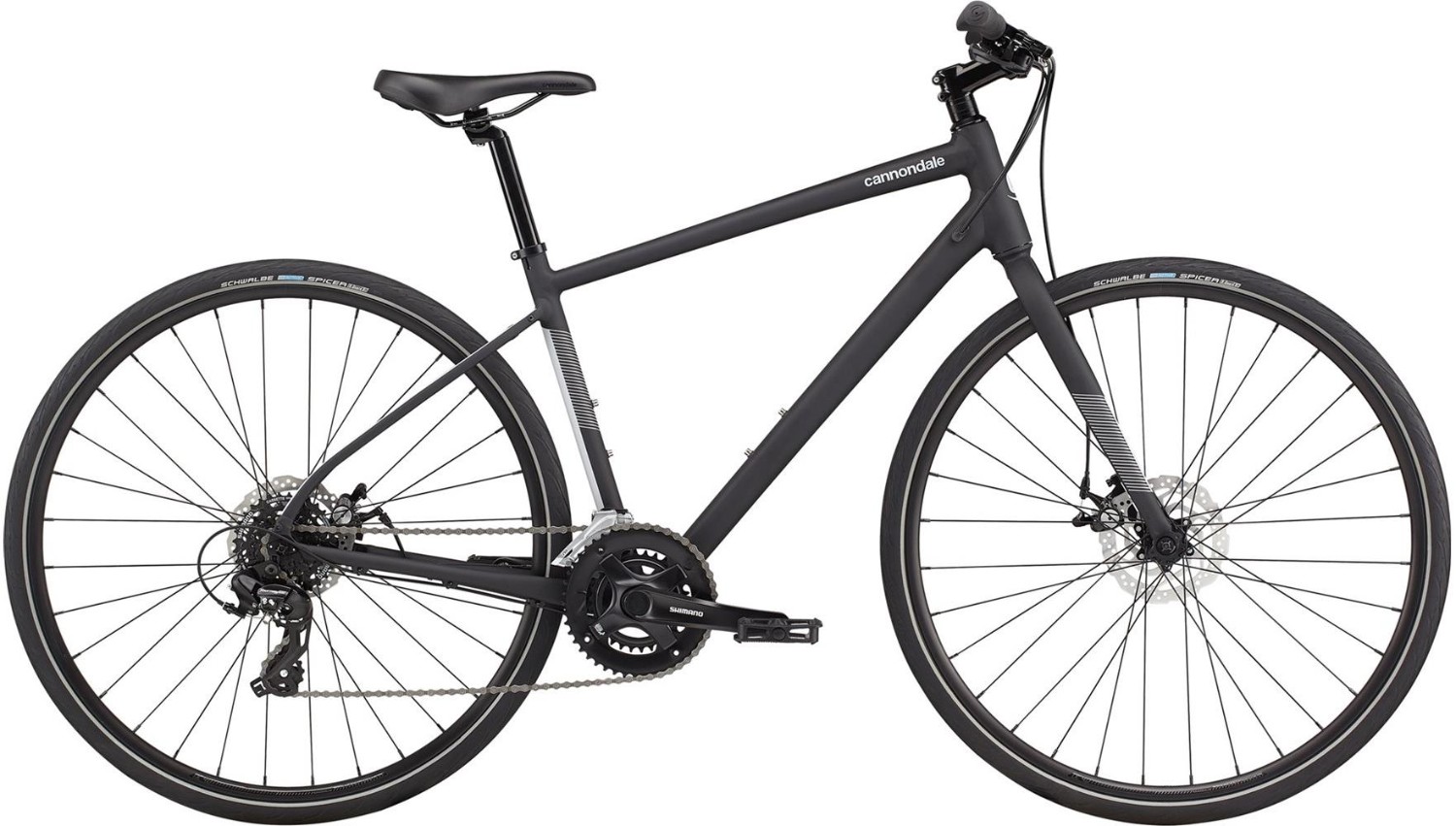

Cannondale Quick Disc 5 2023 - Hybrid Sports Bike
Quick As You Like
The new Quick is our all-rounder – a fast, versatile and fun bike that appeals to a wide range of riders. Perfect for enjoying a workout, cruising the city or just getting out and feeling good.
Key Features:
- Feel the Light. Quick bikes are the lightest in their class, making them easier to pedal, easier to lift, and easier to love. All Quicks feature a new, updated frame that’s lighter weight, with refined SAVE micro-suspension features, easy-to-use StraightShot internal cable routing, and a sleek new look.
- Connected. Most Quick models feature an all- new way for riders to connect with the ride experience. An integrated
- wheel sensor pairs with with a new, free Cannondale App and tracks activity (like speed, distance and calories burned), registers the bike, sends service reminders and more.
- Comfortable & Capable. Bump-absorbing SAVE micro-suspension, comfy grips and new pressure-relieving saddles for comfort. 360° reflective accents for visibility. Rack and fender mounts for versatility
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
| Fork | Chromoly, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade mounts |
| Headset | Integrated, 1-1/4"-1-1/8" |
| Stem | 6061 Alloy, 31.8, 8° |
| Bars | 6061 Alloy Double-butted, 25mm rise, 8° sweep, 6° rise, 640mm |
| Front Brake | Promax mechanical disc, 160mm rotors |
| Rear Brake | Promax mechanical disc, 160mm rotors |
| Brake Lever | Promax BL42 |
| Front Mech | MICROSHIFT FD-T382B |
| Rear Mech | MICROSHIFT RD-M21L |
| Shifters | Microshift 2x7s ,Thumb-tap shifters, light shifting design, metal clamp, with optical gear indicator |
| Speed | 14 |
| Rims | Cannondale Disc, double wall w/eyelet, 32h |
| Front Hub | FORMULA DC-1420 |
| Rear Hub | FORMULA DC-1422 |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Schwalbe Spicer, 700 x 35c, K-Guard, reflective strip |
| Rear Tyre | Schwalbe Spicer, 700 x 35c, K-Guard, reflective strip |
| Seat Post | 6061 Alloy, 27.2 x 350mm |
| Saddle | Cannondale Fitness Ergo Double Density |
| Chainset | PROWHEEL TB-CY01 46/30 |
| Bottom Bracket | Cartridge, square taper |
| Chain | KMC Z7, 7-speed |
| Cassette | MICROSHIFT CS-H081, 12-32, 7-speed |
| Pedals | Cannondale Fitness |
Cannondale Quick Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
157 – 170 |
5’2” – 5’7” |
|
M |
165 – 177 |
5’5” – 5’10” |
|
L |
175 – 187 |
5’9” – 6’2” |
|
XL |
182 – 195 |
6’0” – 6’5” |
Cannondale Quick Geometry Chart
| Size | SM | MD | LG | XL | 2XL |
|---|---|---|---|---|---|
| Stack | 554 | 578 | 602 | 626 | 650 |
| Reach | 398 | 406 | 414 | 422 | 430 |
| Head Tube Length | 133 | 158 | 184 | 209 | 234 |
| Head Tube Angle | 71.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| Bottom Bracket Height | 282 | 282 | 282 | 282 | 282 |
| Bottom Bracket Drop | 68 | 68 | 68 | 68 | 68 |
| Trail | 62 | 62 | 62 | 62 | 62 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 |
| Front Centre | 627 | 643 | 660 | 676 | 692 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1053 | 1069 | 1086 | 1102 | 1118 |
| Top Tube Length (horizontal) | 567 | 583 | 598 | 613 | 628 |
| Standover Height | 699 | 741 | 782 | 822 | 862 |
| Seat Tube Length | 400 | 450 | 500 | 550 | 600 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
