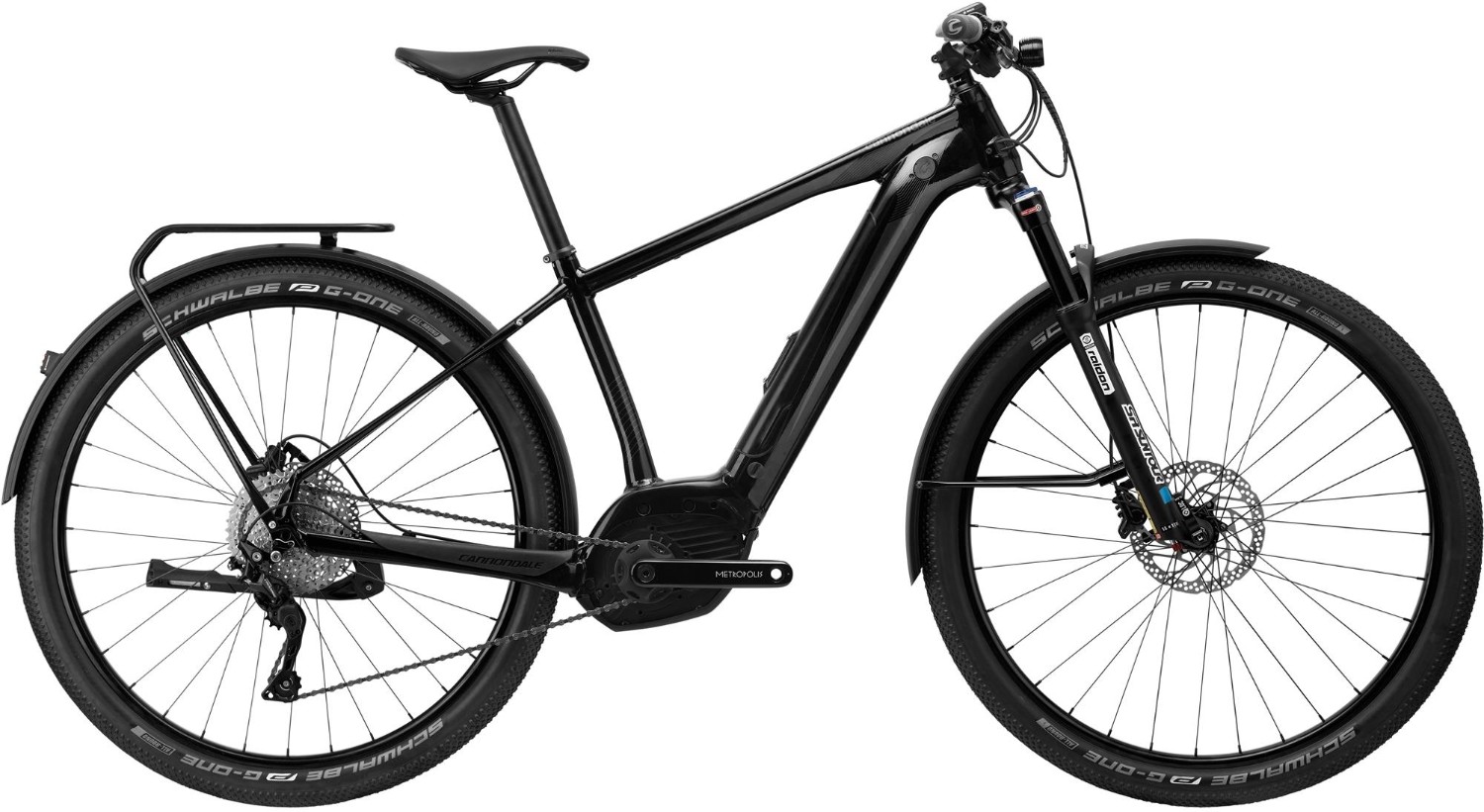

Cannondale Tesoro Neo X 1 2020 - Electric Hybrid Bike
This on-road/off-road e-bike is a fully loaded trekking machine. Get out of the rat-race and into the wilderness.
Key Features:
Off-Road Ready: Tesoro NEO X lives to be pointed off pavement. For bikepacking, backroad trekking or rugged transport, its MTB-inspired frame & fork and big 29” wheels let you get in deeper and go further.
Loaded for Adventure: Secure, rattle-free fenders and a full rear rack, bright front and rear lights, and even a kickstand mean you’re ready to tackle any adventure.
Comfortably in Control: Potholes? Gravel? Tram tracks? No worries. All the features that make Tesoro NEO X so capable off-road translate into a supremely comfortable, confident experience on-road.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount |
| Fork | SR Suntour Raidon 34, 100mm, 15x110, 46mm offset |
| Headset | Integrated Sealed Bearing, Tapered |
| Stem | Cannondale Adjustable , A-headset, 31.8mm |
| Bars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm |
| Front Brake | Shimano MT200 hydro disc, 180mm RT30 rotors |
| Rear Brake | Shimano MT200 hydro disc, 180mm RT30 rotors |
| Brake Lever | Shimano MT200 hydro disc |
| Rear Mech | Shimano SLX, SGS Shadow Plus |
| Shifters | Shimano SLX, 12-speed |
| Speed | 12 |
| Rims | WTB STX i29 TCS, 32h, tubeless ready |
| Front Hub | Shimano MT400 15x110 |
| Rear Hub | Shimano MT510, 12x148 |
| Spokes | DT Swiss Champion |
| Front Tyre | Schwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready |
| Rear Tyre | Schwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready |
| Seat Post | Suspension Seatpost S/M 350mm, L/XL 400mm |
| Saddle | Cannondale Ergo Touring |
| Chainset | Bosch Gen4 w/ custom Ai offset, 38T |
| Chain | KMC X12, 12-speed |
| Cassette | Shimano SLX, 10-51, 12-speed |
| Pedals | Cannondale Fitness |
| Battery Size (WH) | 500wh |
| Motor | Bosch Performance Line CX 250W, speed configuration (max 28mph) |
| User Interface | Bosch Kiox |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Cannondale Tesoro Neo X 1 2020 - Electric Hybrid Bike.
This product is no longer available.
