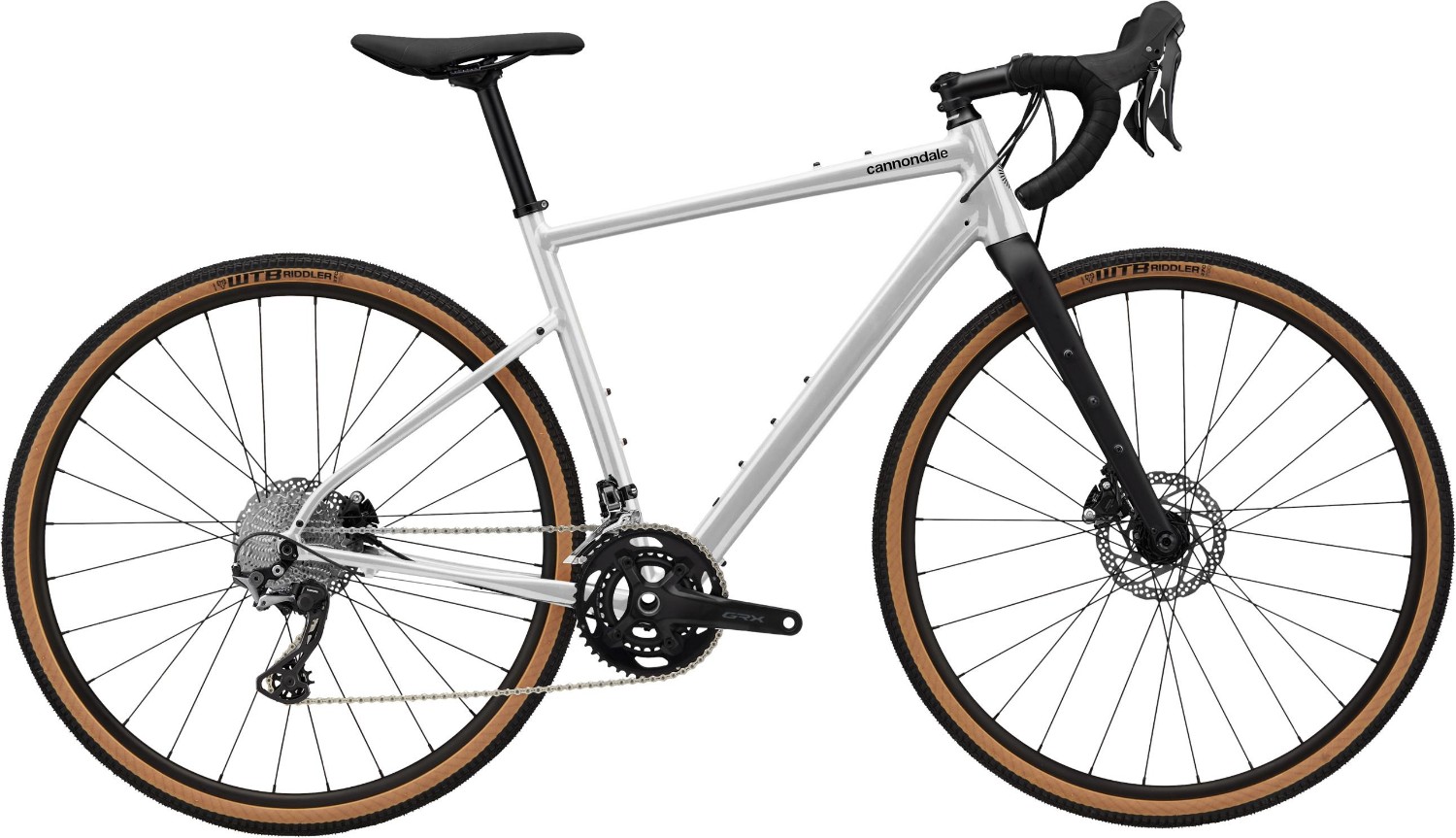

Cannondale Topstone 1 2023 - Gravel Bike
Gravel is all about adventure! The Cannondale Topstone 1 is built for getting out there with the reliable confidence only a Topstone can deliver. An all-new fork offers three mounting points on each leg, with a plethora of frame mounts for weekend jaunts or big bikepacking trips.
Key Features :
- Lightweight SmartForm C2 Alloy frame for a versatile ride
- Topstone Carbon fork ensures you are ready for any adventure
- 37mm WTB Riddler Tubeless tyres offer confident handling on and off-road
- Shimano GRX 11 Speed Groupset ensures reliable shifting
- Colours: Cinnamon, Mercury
- Sizes: XS, S, M, L, XL
- The Cannondale Topstone 1 is available with 0% APR finance
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts |
| Fork | Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, fender/gear mounts |
| Headset | Integrated, 1-1/8" - 1-1/2" |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
| Bars | Cannondale 3, butted 6061 Alloy, 16 deg flare drop |
| Front Brake | Shimano GRX 400 hydraulic disc, 160/160mm RT54 rotors |
| Rear Brake | Shimano GRX 400 hydraulic disc, 160/160mm RT54 rotors |
| Brake Lever | Shimano GRX 600 hydraulic disc |
| Front Mech | Shimano GRX 800, braze-on |
| Rear Mech | Shimano GRX 810, Shadow RD+ |
| Shifters | Shimano GRX 600, 11-speed |
| Speed | 22 |
| Rims | WTB ST i23 TCS, 28h, tubeless ready |
| Front Hub | Formula cartridge bearing, 12x100mm centerlock |
| Rear Hub | Formula cartridge bearing, 12x142mm centerlock |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Vittoria Terreno Dry, 700 x 35c, tubeless ready |
| Rear Tyre | Vittoria Terreno Dry, 700 x 35c, tubeless ready |
| Seat Post | Cannondale 3, 6061 Alloy, 27.2 x 350mm |
| Saddle | Fizik Aliante Delta, S-alloy rails |
| Chainset | FSA Gossamer Pro Modular AGX+ 46/30 |
| Bottom Bracket | FSA BB386 MegaEvo |
| Chain | KMC X11, 11-speed |
| Cassette | Shimano 105, 11-34, 11-speed |
| Pedals | Resin Platform |
Cannondale Topstone 2023 Size Chart
|
Frame Size |
Height (cm) |
Height (Feet) |
|
XS |
152 - 165 |
5'0" - 5'5" |
|
S |
160 – 170 |
5’ 3” – 5’ 7” |
|
M |
170 – 178 |
5’ 7” – 5’ 10” |
|
L |
178 – 188 |
5’ 10” – 6’ 2” |
|
XL |
188 – 196 |
6’ 2” – 6’ 5” |
Cannondale Topstone Alloy 2023 Geometry
|
|
XS |
S |
M |
L |
XL |
|
Seat Tube Length |
41cm |
45.8cm |
50.5cm |
55.3cm |
60cm |
|
Top Tube Horizontal |
52.5cm |
54.4cm |
56.1cm |
57.9cm |
69.6cm |
|
Head Tube Angle |
70° |
71° |
71° |
71° |
71° |
|
Seat Tube Angle |
73.1° |
73.1° |
73.1° |
73.1° |
73.1° |
|
Standover |
70.3cm |
74.4cm |
78.4cm |
82.5cm |
86.3cm |
|
Head Tube Length |
8.9cm |
11.8cm |
14.9cm |
18.2cm |
21.4cm |
|
Wheelbase |
101.1cm |
102.2cm |
104cm |
106cm |
107.8cm |
|
Front Centre |
59.3cm |
60.3cm |
62.1cm |
64.1cm |
65.9cm |
|
Chainstay Length |
43cm |
43cm |
43cm |
43cm |
43cm |
|
Bottom Bracket Drop |
7.5cm |
7.5cm |
7.5cm |
7.5cm |
7.5cm |
|
Bottom Bracket Height |
28.4cm |
28.4cm |
28.4cm |
28.4cm |
28.4cm |
|
Fork Rake |
5.5cm |
5.5cm |
5.5cm |
5.5cm |
5.5cm |
|
Trail |
7.2cm |
6.5cm |
6.5cm |
6.5cm |
6.5cm |
|
Stack |
51.8cm |
54.9cm |
57.9cm |
61.0cm |
64.0cm |
|
Reach |
36.8cm |
37.7cm |
38.5cm |
39.4cm |
40.2cm |
What size frame do I need if I am between sizes? - read here
