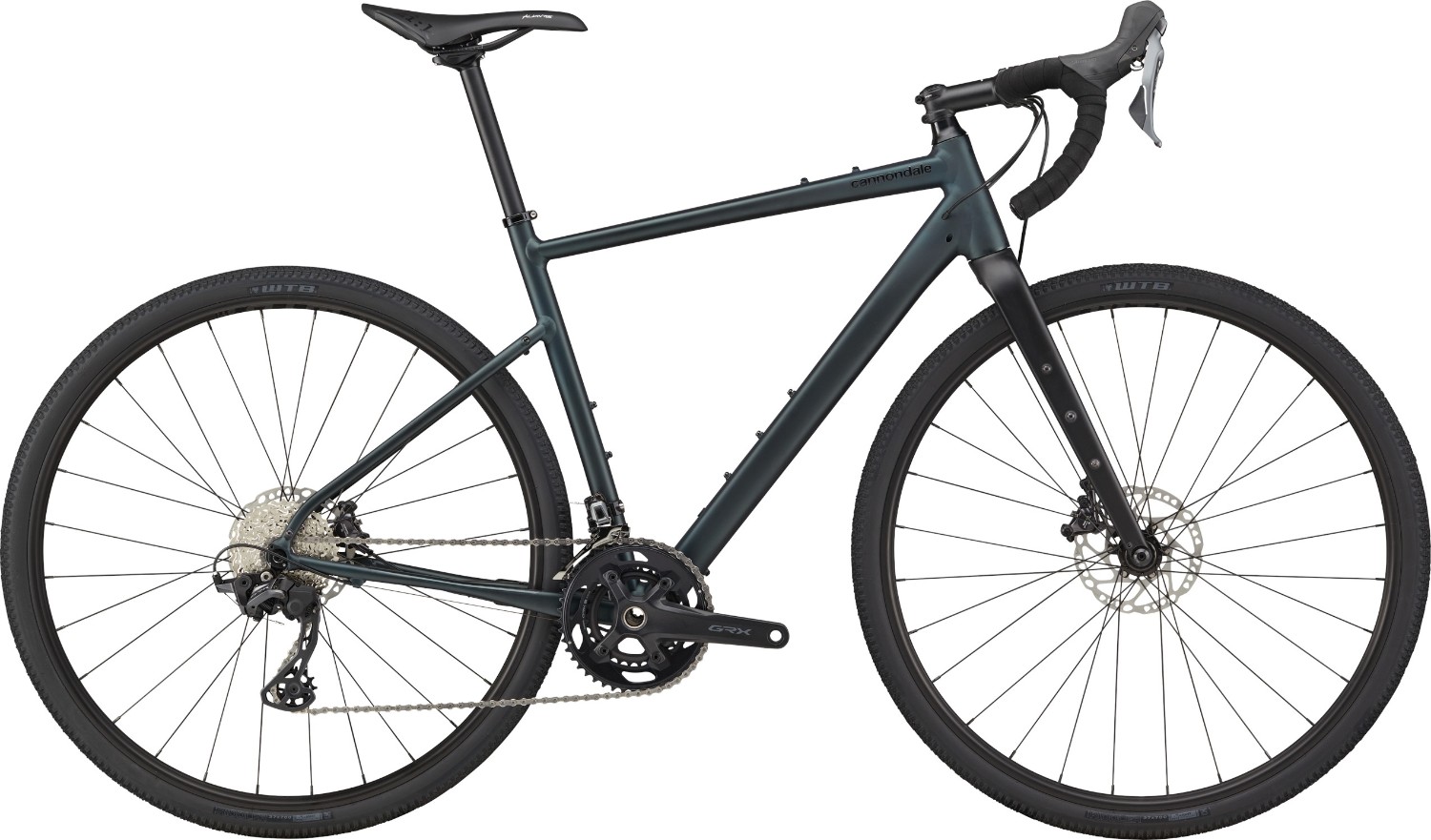

Cannondale Topstone 1 2023 - Gravel Bike
The Cannondale Topstone 1 gravel bike is designed to take you anywhere you want to go, whether it's a fast-paced gravel race or a long-haul adventure ride. Its wide-ranging capabilities, including ample tire clearance and stable yet agile handling, make it the perfect partner for exploring rough gravel roads and tackling challenging off-road trails. Roll light and free with the Topstone 1, and experience the joy of gravel riding like never before.
Key Features:
- Lightweight SmartForm C2 alloy frame with multiple gear/bottle mounts and internal cable routing for a clean look.
- Topstone carbon fork with 55mm outfront offset provides confident stability and nimble agility.
- Shimano GRX 600 12-speed drivetrain ensures smooth and reliable shifting performance.
- Shimano GRX 400 hydraulic disc brakes offer powerful and consistent braking control.
- WTB ST i23 TCS rims with tubeless-ready WTB Riddler tires provide excellent traction and durability.
- Wide tire clearance for up to 45mm tires lets you tackle rough terrain with ease.
- Integrated 27.2 dropper seatpost compatibility adds versatility for off-road adventures.
- Available with 0% APR finance
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts |
Fork | Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, fender/gear mounts |
Headset | Integrated, 1-1/8" - 1.5" |
Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
Bars | Cannondale 3, butted 6061 Alloy, 16 deg flare drop |
Front Brake | Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotors |
Rear Brake | Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotors |
Brake Lever | Shimano GRX 600 hydraulic disc |
Front Mech | Shimano GRX 820 |
Rear Mech | Shimano GRX 820, Shadow RD+ |
Shifters | Shimano GRX 600, 12-speed |
Speed | 24 |
Rims | WTB ST i23 TCS, 28h, tubeless ready |
Front Hub | Formula cartridge bearing, 12x100mm centerlock |
Rear Hub | Formula cartridge bearing, 12x142mm centerlock |
Spokes | Stainless Steel, 14g |
Front Tyre | WTB Riddler TCS Light, 700x37c, tubeless ready (Europe/UK - Vittoria Terreno Dry, 700x35c, foldable) |
Rear Tyre | WTB Riddler TCS Light, 700x37c, tubeless ready (Europe/UK - Vittoria Terreno Dry, 700x35c, foldable) |
Seat Post | Cannondale 3, 6061 Alloy, 27.2x350mm |
Saddle | Fizik Aliante Delta, S-alloy rails |
Chainset | Shimano GRX 600, 46/30 |
Bottom Bracket | Shimano BSA 68 |
Chain | Shimano HG M7100, 12-speed |
Cassette | Shimano HG R7100, 11-34, 12-speed |
Pedals | Resin Platform |
Cannondale Topstone 2023 Size Chart
Frame Size |
Height (cm) |
Height (Feet) |
XS |
152 - 165 |
5'0" - 5'5" |
S |
160 – 170 |
5’ 3” – 5’ 7” |
M |
170 – 178 |
5’ 7” – 5’ 10” |
L |
178 – 188 |
5’ 10” – 6’ 2” |
XL |
188 – 196 |
6’ 2” – 6’ 5” |
Cannondale Topstone Alloy 2023 Geometry
|
XS |
S |
M |
L |
XL |
Seat Tube Length |
41cm |
45.8cm |
50.5cm |
55.3cm |
60cm |
Top Tube Horizontal |
52.5cm |
54.4cm |
56.1cm |
57.9cm |
69.6cm |
Head Tube Angle |
70° |
71° |
71° |
71° |
71° |
Seat Tube Angle |
73.1° |
73.1° |
73.1° |
73.1° |
73.1° |
Standover |
70.3cm |
74.4cm |
78.4cm |
82.5cm |
86.3cm |
Head Tube Length |
8.9cm |
11.8cm |
14.9cm |
18.2cm |
21.4cm |
Wheelbase |
101.1cm |
102.2cm |
104cm |
106cm |
107.8cm |
Front Centre |
59.3cm |
60.3cm |
62.1cm |
64.1cm |
65.9cm |
Chainstay Length |
43cm |
43cm |
43cm |
43cm |
43cm |
Bottom Bracket Drop |
7.5cm |
7.5cm |
7.5cm |
7.5cm |
7.5cm |
Bottom Bracket Height |
28.4cm |
28.4cm |
28.4cm |
28.4cm |
28.4cm |
Fork Rake |
5.5cm |
5.5cm |
5.5cm |
5.5cm |
5.5cm |
Trail |
7.2cm |
6.5cm |
6.5cm |
6.5cm |
6.5cm |
Stack |
51.8cm |
54.9cm |
57.9cm |
61.0cm |
64.0cm |
Reach |
36.8cm |
37.7cm |
38.5cm |
39.4cm |
40.2cm |
What size frame do I need if I am between sizes? - read here
