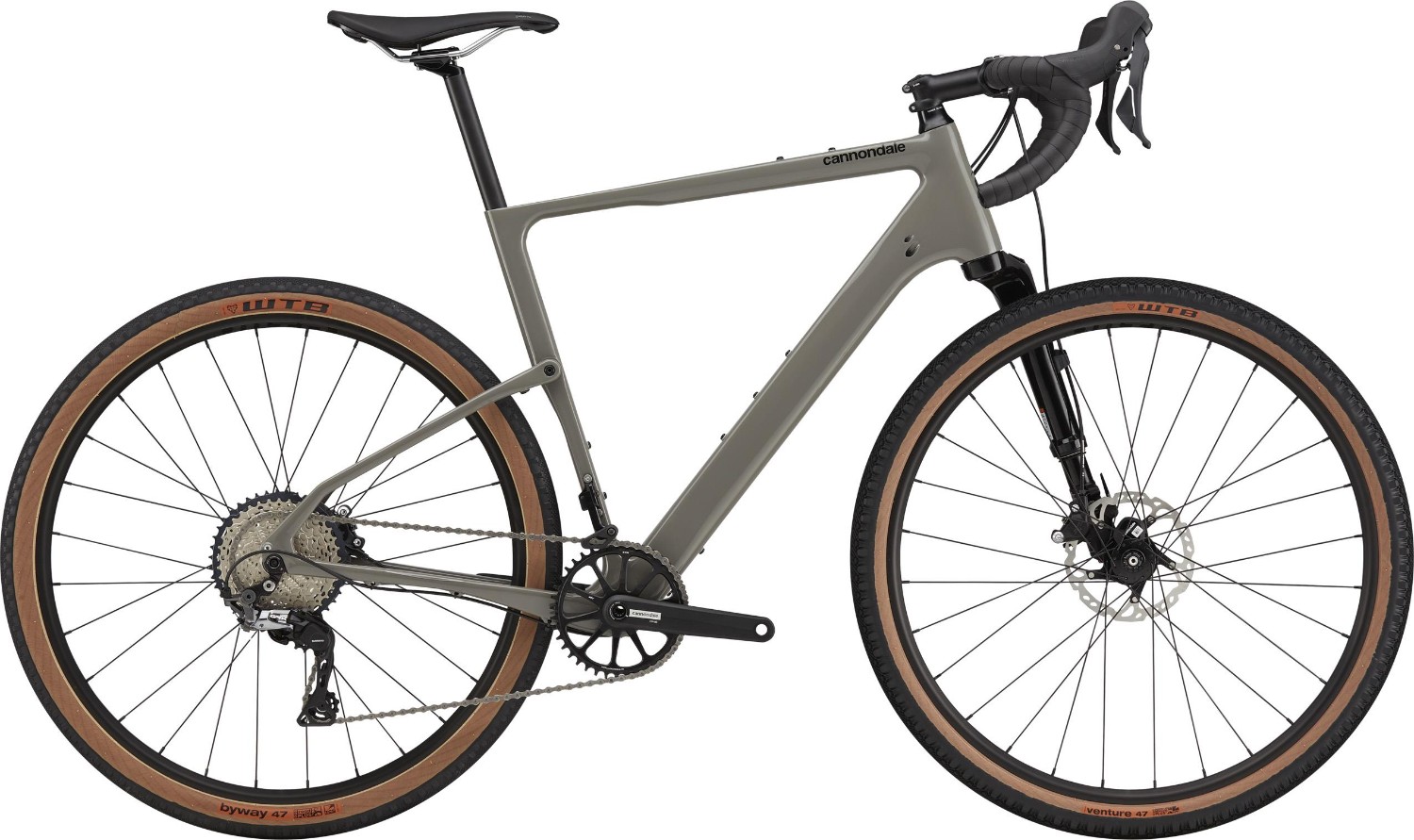

Cannondale Topstone Carbon Lefty 3 650 2021 - Gravel Bike
The gravel bike to beat all gravel bikes. High-volume 650b wheels and the bumperasing smoothness of our Kingpin suspension and new Lefty Oliver fork make this the most off-road capable and on-road comfortable road bike ever made.
Key Features:
- KingPin Suspension. Revolutionary, super-light suspension that lets you ride harder on dirt and more smoothly on pavement. Better control. Better traction. Better comfort. Nothing sacrificed.
- Lefty Oliver. The ultimate built-for-gravel suspension fork. With 30mm of smooth, bump-taming suspension and an incredibly stiff, precise-handling structure, this lightweight fork lets you push it harder, and ride smoother than ever.
- It’s Easier to Go Harder. Refined geometry and rider position deliver an experience that’s stable, composed and comfortable without losing that spark. Go further, ride longer, charge harder.
- The Last Detail. We thought of everything. Big tire clearance, Tons of gear and storage mounts. Rear Speed Release thruaxle, Internal dropper post compatibility. In short, the works.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | BallisTec Carbon Frame, Kingpin suspension system, 12x142 Speed Release thru-axle, dropper post compatible, direct line cable routing |
| Fork | All-New Lefty Oliver Carbon, 30mm travel, Chamber Damper w/ All-Over tune, ISO High-Ride air spring, tapered steerer, 650b, 55mm offset |
| Headset | Integrated, 1-1/8" - 1-1/2" |
| Stem | Cannondale 2, 6061 Alloy, 31.8, 7° |
| Bars | Cannondale 3, butted 6061 Alloy, 16 deg flare drop |
| Front Brake | Shimano GRX 400 hydraulic disc, 160mm RT76 rotors |
| Rear Brake | Shimano GRX 400 hydraulic disc, 160mm RT76 rotors |
| Brake Lever | Shimano GRX 600 hydraulic disc |
| Rear Mech | Shimano GRX 800 Wide |
| Shifters | Shimano GRX 600, 11-speed |
| Speed | 11 |
| Rims | WTB ST i23 TCS, 28h, tubeless ready |
| Front Hub | Lefty 50, 6-bolt |
| Rear Hub | Formula DHT-142, 12x142mm centerlock |
| Spokes | Stainless Steel, 14g |
| Front Tyre | WTB Venture TCS Light, 650 x 47c, tubeless ready |
| Rear Tyre | WTB Venture TCS Light, 650 x 47c, tubeless ready |
| Seat Post | Cannondale 2, UD Carbon, 27.2 x 350mm |
| Saddle | Fabric Scoop Shallow Elite, cro-mo rails |
| Chainset | Cannondale 1, BB30a, OPI SpideRing, 40T |
| Bottom Bracket | Cannondale BB30 |
| Chain | Shimano HG601, 11-speed |
| Cassette | Shimano SLX, 11-42, 11-speed |
| Pedals | Basic Resin Flats |
Cannondale Topstone Carbon 2021 Size Chart
|
Frame Size |
Height (cm) |
Height (Feet) |
|
Small |
160 – 170 |
5’ 3” – 5’ 7” |
|
Medium |
170 – 178 |
5’ 7” – 5’ 10” |
|
Large |
178 – 188 |
5’ 10” – 6’ 2” |
|
X Large |
188 – 196 |
6’ 2” – 6’ 5” |
Cannondale Topstone Carbon 2021 Geometry
|
|
X Small |
Small |
Medium |
Large |
X Large |
|
Seat Tube Length |
41cm |
45.8cm |
50.5cm |
55.3cm |
60cm |
|
Top Tube Horizontal |
52.5cm |
54.4cm |
56.1cm |
57.9cm |
59.6cm |
|
Head Tube Angle |
70° |
71.2° |
71.2° |
71.2° |
71.2° |
|
Seat Tube Angle |
73.1° |
73.1° |
73.1° |
73.1° |
73.1° |
|
Standover |
71.5cm |
76.1cm |
80.3cm |
84.3cm |
88.5cm |
|
Head Tube Length |
9.7cm |
31.1cm |
16.5cm |
19.8cm |
23.2cm |
|
Wheelbase |
99.9cm |
101.0cm |
103.0cm |
104.0cm |
106.0cm |
|
Front Centre |
59.3cm |
60.3cm |
62.1cm |
64.1cm |
65.9cm |
|
Chainstay Length |
41.5cm |
41.5cm |
41.5cm |
41.5cm |
41.5cm |
|
Bottom Bracket Drop |
6.9cm |
6.4cm |
6.1cm |
6.1cm |
5.9cm |
|
Bottom Bracket Height |
27.3cm |
27.8cm |
28.0cm |
28.0cm |
28.3cm |
|
Fork Rake |
5.5cm |
5.5cm |
5.5cm |
5.5cm |
5.5cm |
|
Trail |
6.6cm |
5.8cm |
5.8cm |
5.8cm |
5.8cm |
|
Stack |
51.8cm |
54.9cm |
57.9cm |
61.0cm |
64.0cm |
|
Reach |
36.8cm |
37.7cm |
38.5cm |
39.4cm |
40.2cm |
What size frame do I need if I am between sizes? - read here
