(no reviews)Product ID: 280585

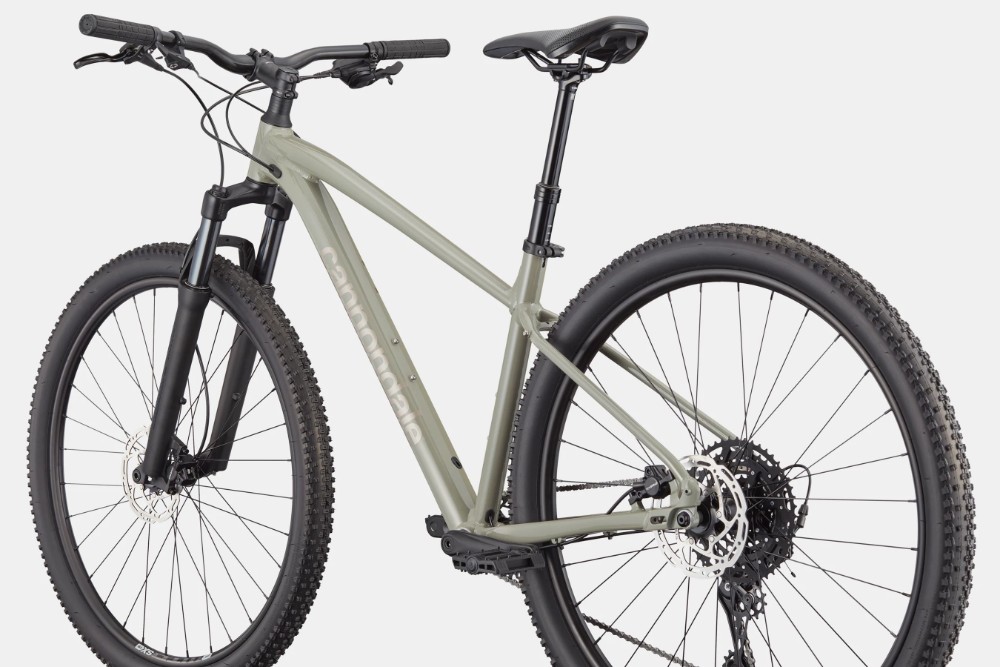

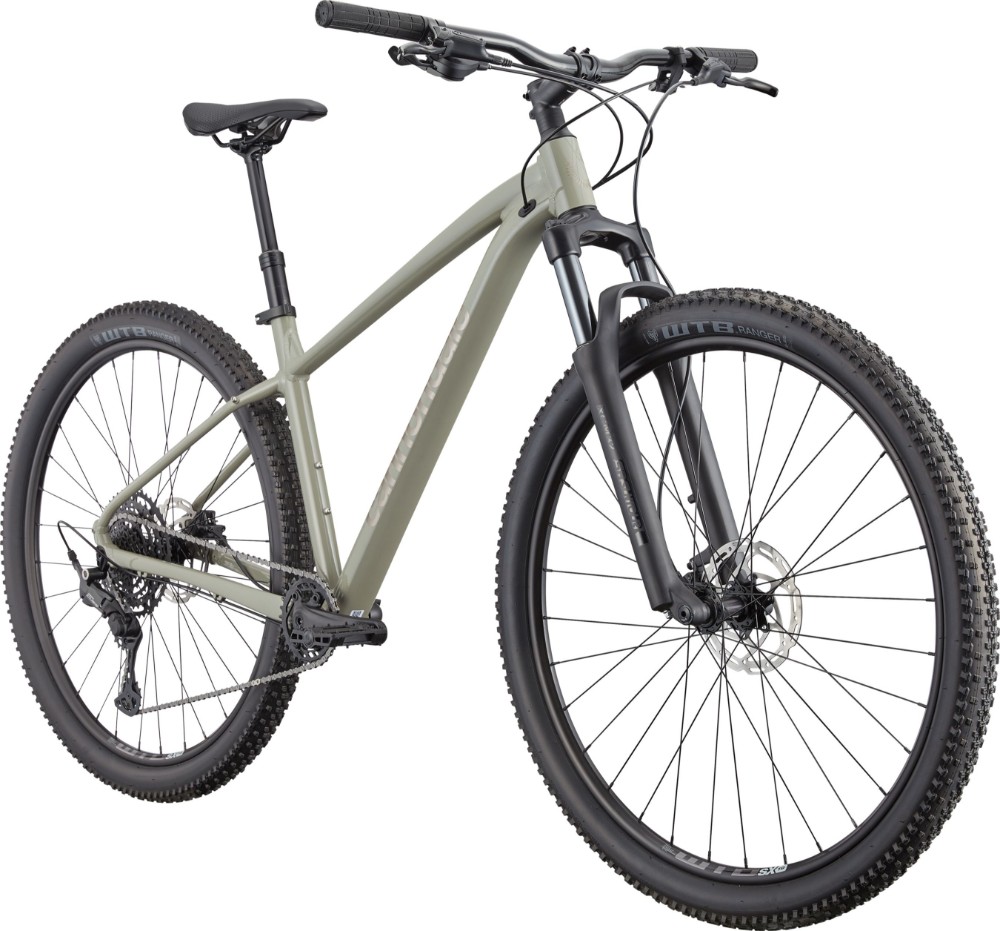

Cannondale Trail 1 Mountain Bike 2026 - Hardtail MTB
Price: £800.00









Description will appear here shortly...
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount port, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL) |
| Fork | SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5") |
| Headset | Semi-Integrated, 1-1/8" |
| Stem | Cannondale 4, 6061 Alloy, 31.8, 6° |
| Bars | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm |
| Front Brake | Tektro M275 hydraulic disc, 160/160mm rotors |
| Rear Brake | Tektro M275 hydraulic disc, 160/160mm rotors |
| Brake Lever | Tektro hydraulic disc |
| Rear Mech | Shimano CUES U6000 |
| Shifters | Shimano CUES U6000, 10-speed |
| Speed | 10 |
| Rims | WTB SX19, 32h |
| Front Hub | Shimano TC500, 15x110mm |
| Rear Hub | Shimano TC500, 12x142mm |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI |
| Rear Tyre | Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI |
| Seat Post | JD Dropper, internal routing, 31.6, 130mm |
| Saddle | Cannondale Trail |
| Chainset | Prowheel, Charm 30T |
| Bottom Bracket | ProWheel, square taper |
| Chain | KMC X10, 10-speed |
| Cassette | Shimano CUES, 11-48, 10-speed |
![]()
Cannondale Trail Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
154 – 162 |
5’1” – 5’4” |
|
M |
162 – 172 |
5’4” – 5’8” |
|
L |
170 – 182 |
5’7” – 6’0” |
|
XL |
182 – 190 |
6’0” – 6’3” |
Cannondale Trail Geometry Chart
| Size | XS (27.5") | SM (27.5") | MD (29") | LG (29") | XL (29") |
|---|---|---|---|---|---|
| Stack | 573 | 591 | 623 | 632 | 641 |
| Reach | 365 | 402 | 425 | 447 | 469 |
| Head Tube Length | 95 | 95 | 105 | 115 | 125 |
| Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| Bottom Bracket Height | 293 | 293 | 307 | 307 | 307 |
| Bottom Bracket Drop | 60 | 60 | 65 | 65 | 65 |
| Trail | 97 | 97 | 101 | 101 | 101 |
| Fork Rake/Offset | 42 | 42 | 46 | 46 | 46 |
| Front Centre | 621 | 665 | 702 | 728 | 754 |
| Chainstay Length | 440 | 440 | 445 | 445 | 445 |
| Wheelbase | 1054 | 1098 | 1140 | 1166 | 1192 |
| Top Tube Length (horizontal) | 535 | 577 | 609 | 634 | 659 |
| Standover Height | 673 | 710 | 768 | 795 | 839 |
| Seat Tube Length | 330 | 381 | 432 | 470 | 533 |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
