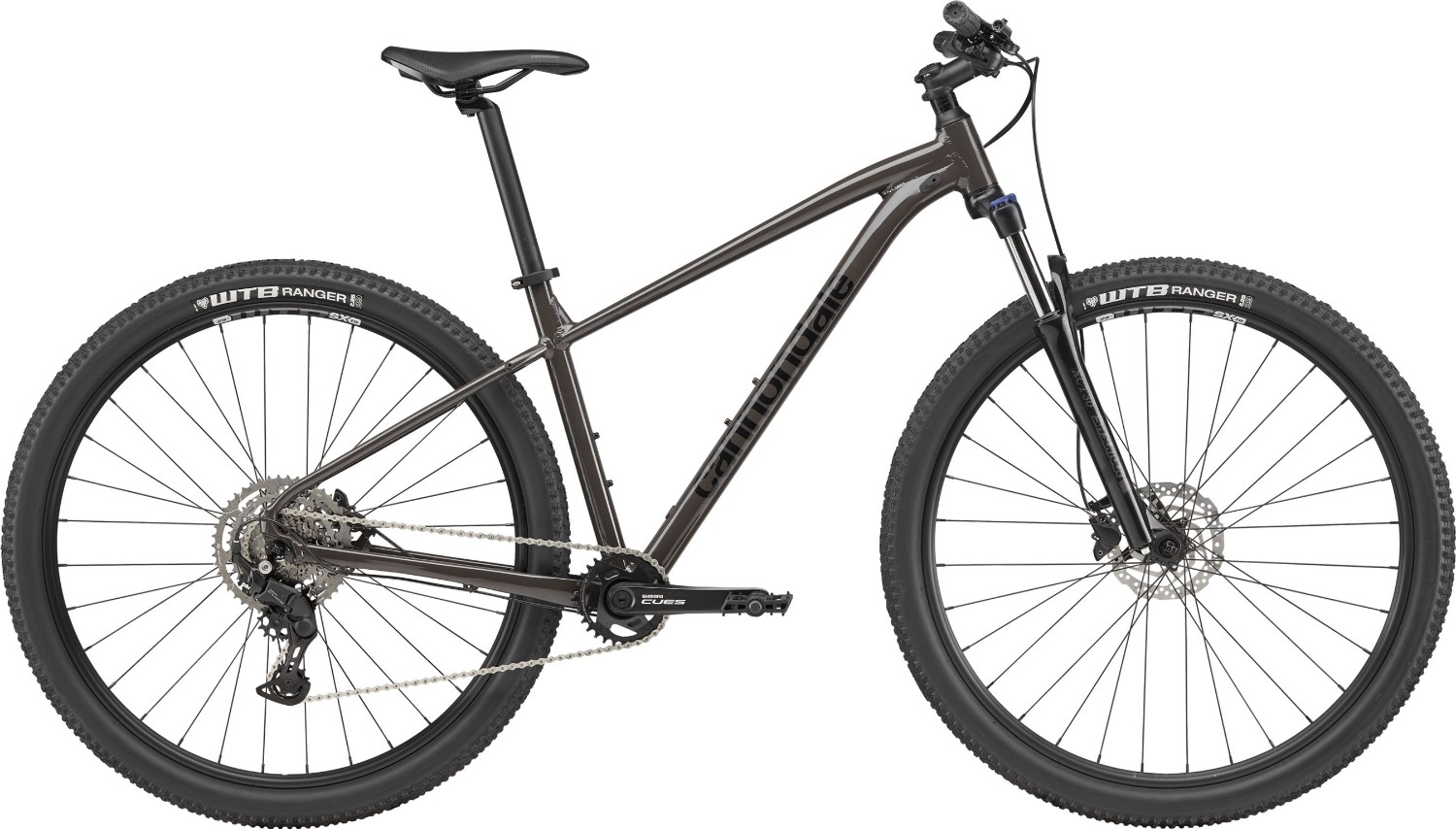

Cannondale Trail 6 Mountain Bike 2026 - Hardtail MTB
The Cannondale Trail is your first-class upgrade to next-level mountain biking. Engineered for fun by a brand trusted by Champions, as happy on dirt as it is on the street—Trail is game for anything!
Designed to handle everything from rocky trails to smooth streets, its sturdy build features a bump-absorbing fork, a straightforward 1x drivetrain, wide tires for grip, and wider handlebars for killer handling. It’s got everything you need and nothing you don’t—unless you want to add a rack or kickstand. Get ready to hit the trails and enjoy the ride—this bike is your ticket to pedal-powered fun!
Key Features:
- Light and durable SmartForm C3 Alloy frame
- SR Suntour XCT 30 suspension fork, 100mm travel
- Shimano 9-speed shifting / Tektro hydraulic disc brakes
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73, rear rack mounts, KickFlip hidden 18mm 2-bolt kickstand mount |
| Fork | SR Suntour XCT 30, 100mm, coil, 42mm offset (27.5") 46mm offset (29") |
| Headset | Semi-Integrated, 1-1/8" |
| Stem | 6061 Alloy, 31.8, 7° |
| Bars | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm |
| Front Brake | Tektro M275 hydraulic disc, 160/160mm rotors |
| Rear Brake | Tektro M275 hydraulic disc, 160/160mm rotors |
| Brake Lever | Tektro hydraulic disc |
| Rear Mech | Shimano Acera |
| Shifters | Shimano Alivio, 9-speed |
| Speed | 9 |
| Rims | WTB SX19, 32h |
| Front Hub | Shimano HB-TX505, QR |
| Rear Hub | Shimano FH-TX505, QR |
| Spokes | Stainless Steel, 14g |
| Front Tyre | WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound |
| Rear Tyre | WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound |
| Seat Post | Cannondale 3, 6061 Alloy, 31.6x350mm (XS-SM), 400mm (MD-XL) |
| Saddle | Cannondale Stage 3 |
| Chainset | Prowheel, 36/22 |
| Bottom Bracket | Sealed Cartridge Bearing, Square Taper |
| Chain | KMC X9, 9-speed |
| Cassette | Shimano HG200, 11-36, 9-speed |
Cannondale Trail Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
154 – 162 |
5’1” – 5’4” |
|
M |
162 – 172 |
5’4” – 5’8” |
|
L |
170 – 182 |
5’7” – 6’0” |
|
XL |
182 – 190 |
6’0” – 6’3” |
Cannondale Trail Geometry Chart
| Size | XS (27.5") | SM (27.5") | MD (29") | LG (29") | XL (29") |
|---|---|---|---|---|---|
| Stack | 573 | 591 | 623 | 632 | 641 |
| Reach | 365 | 402 | 425 | 447 | 469 |
| Head Tube Length | 95 | 95 | 105 | 115 | 125 |
| Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| Bottom Bracket Height | 293 | 293 | 307 | 307 | 307 |
| Bottom Bracket Drop | 60 | 60 | 65 | 65 | 65 |
| Trail | 97 | 97 | 101 | 101 | 101 |
| Fork Rake/Offset | 42 | 42 | 46 | 46 | 46 |
| Front Centre | 621 | 665 | 702 | 728 | 754 |
| Chainstay Length | 440 | 440 | 445 | 445 | 445 |
| Wheelbase | 1054 | 1098 | 1140 | 1166 | 1192 |
| Top Tube Length (horizontal) | 535 | 577 | 609 | 634 | 659 |
| Standover Height | 673 | 710 | 768 | 795 | 839 |
| Seat Tube Length | 330 | 381 | 432 | 470 | 533 |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
