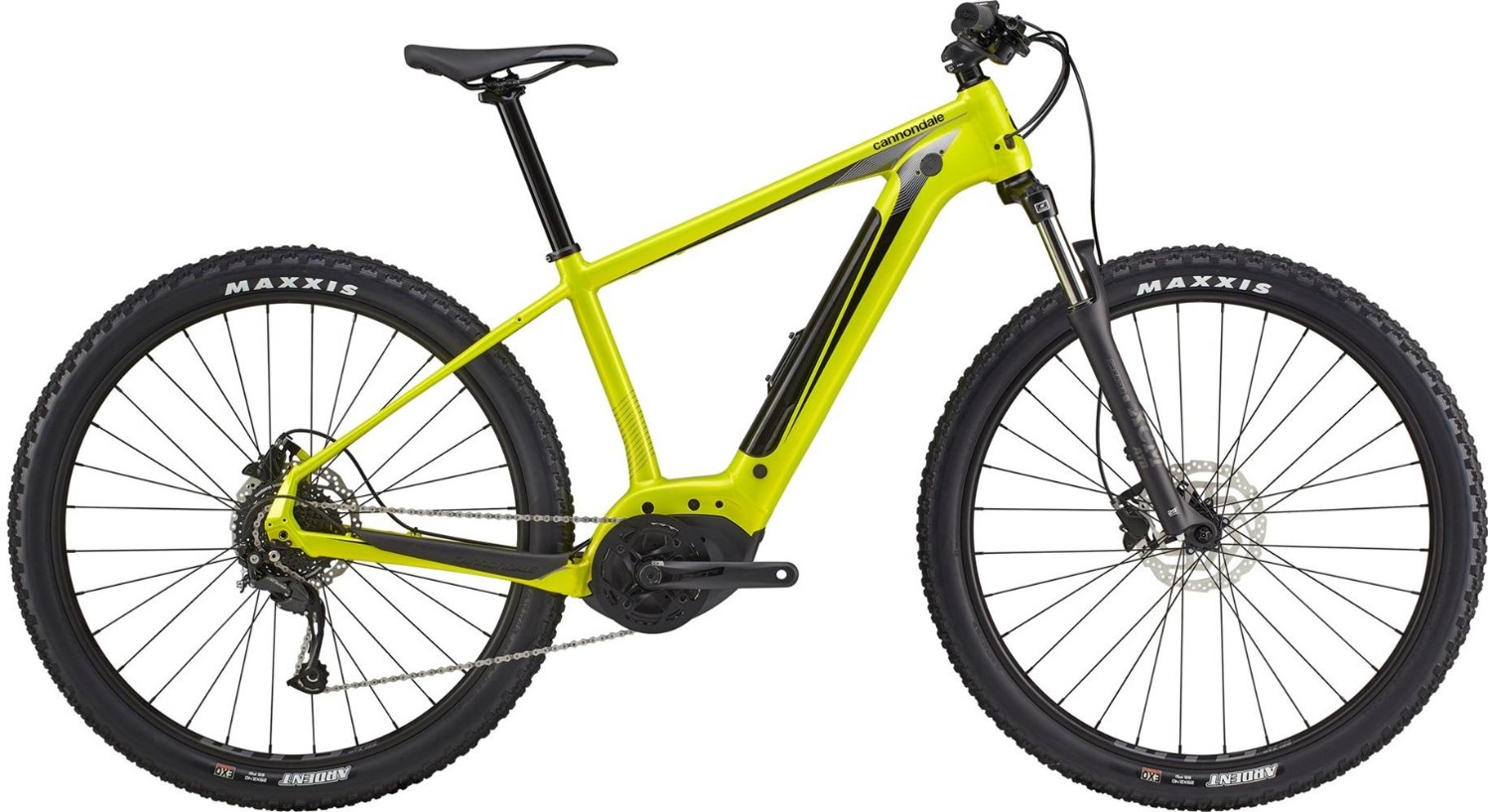

Cannondale Trail Neo 4 2021 - Electric Mountain Bike
Power Up
A versatile e-mountain bike that combines confidence-inspiring handling and authentic off-road chops with integrated e-power. Tackle new adventures with ease.
Key Features:
- The Power to Roam
The big 504Wh e-Tube battery integrates neatly into the frame and gives you the range for serious adventure. A weather-sealed cover allows easy access, and keeps the battery dry and safe.
- Intuitive Controls
Shimano's easy-to-use switch unit lets you change assist modes without ever taking your hands from the bars, while the easy-to-read display gives all the important information - speed, battery level, mode, and more. at a glance.
- SmartForm C2 Alloy Construction
With refined butting and precisely controlled tube shapes, our exceptional aluminum craftsmanship delivers incredible performance, at a sweet price.
- Dialed Trail Handling
Proper trail-riding frame geometry and true trail-ready components make this rig a blast on everything from rolling hills to hardcore singletrack.
- 29" Wheels
These big hoops provide the ultimate in grip, confidence and roll-over-anything speed.
- Fun and Functional
With mounts for rear rack, fenders, gear, bottles and kickstand, Trail Neo S is ready for weekend fun and weekday function.
- Reflective Graphics
Bright reflective graphic accents add a measure of extra visibility in low light conditions.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | SmartForm C2 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, folding lock mount, rack/fender mounts, Si kickstand mount |
Fork | SR Suntour XCM, 100mm, Coil, 46mm offset |
Headset | Integrated Sealed Bearing, Tapered |
Stem | Cannondale 3, 6061 Alloy, 31.8, 0° |
Bars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
Front Brake | Shimano MT200 hydraulic disc, 180mm RT10 rotors |
Rear Brake | Shimano MT200 hydraulic disc, 180mm RT10 rotors |
Brake Lever | Shimano MT200 hydraulic disc |
Rear Mech | Shimano Alivio, 9-speed |
Shifters | Shimano Alivio, 9-speed |
Speed | 9 |
Rims | WTB STX i25 TCS, 32h, tubeless ready |
Front Hub | Shimano HB M4050 |
Rear Hub | Shimano MT400, 12x148mm thru-axle |
Spokes | DT Swiss Champion |
Front Tyre | Maxxis Ardent, 29 x 2.4", Wire 60TPI Exo |
Rear Tyre | Maxxis Ardent, 29 x 2.4", Wire 60TPI Exo |
Seat Post | Cannondale 4, 6061 Alloy, 31.6 x 350mm |
Saddle | Cannondale Ergo XC |
Chainset | FSA Bosch E-Bike, 34T |
Chain | Shimano HG93A, 9-Speed |
Cassette | Shimano HG200, 11-36, 9-speed |
Battery Size (WH) | Bosch Powertube 500Wh |
Motor | Bosch Performance Line Cruise |
User Interface | Bosch Purion |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
