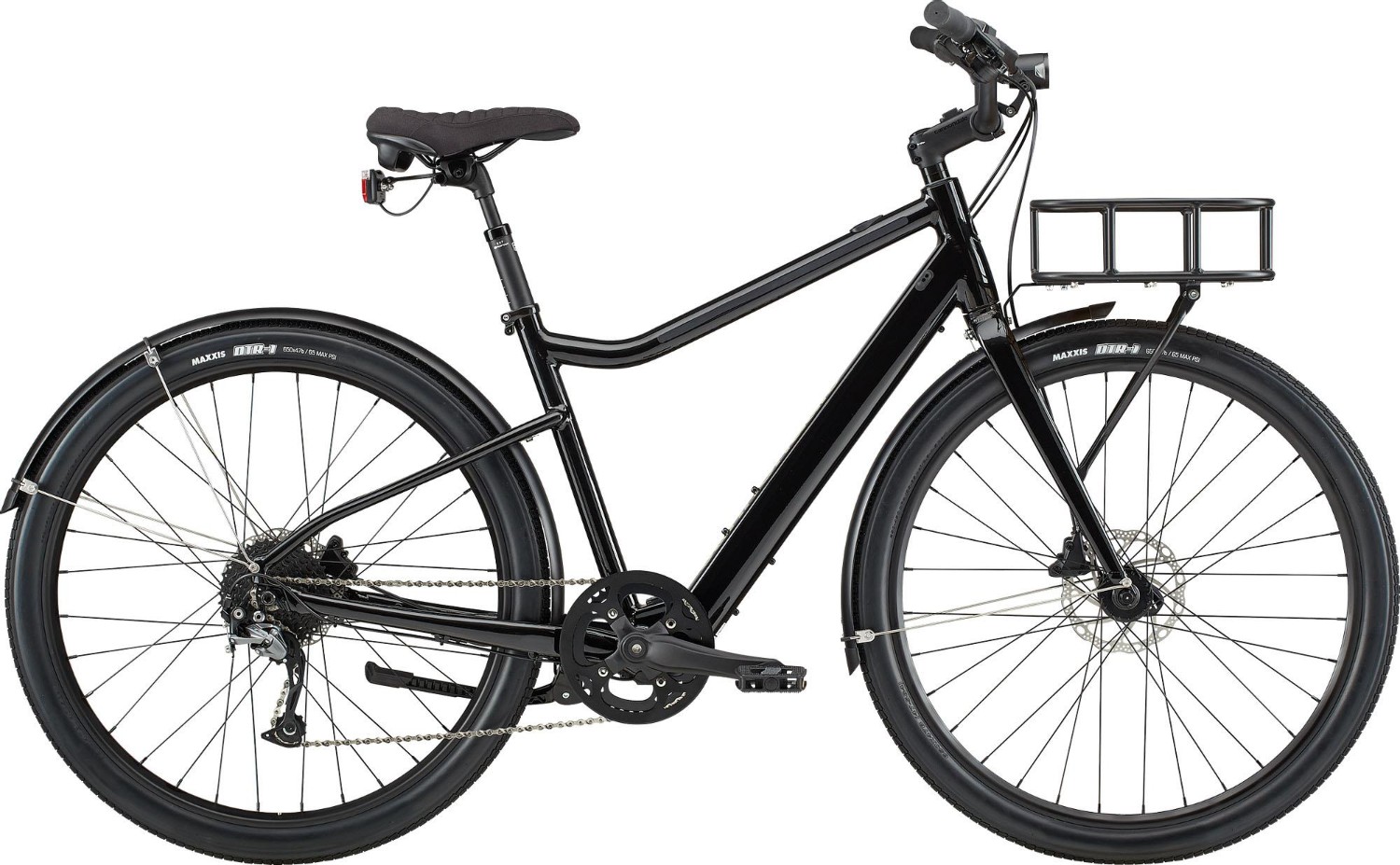

Cannondale Treadwell Neo EQ 2021 - Electric Hybrid Bike
Day in, Day out. An e-bike for any day and anywhere. Fun and light to rip around the neighborhood for meet ups, running errands or Sunday fun days.
Key Features:
- Light, powerful ebikemotion rear-hub drive system / Range: up to 75km/47mi
- Integrated connectivity with Cannondale App / front and rear lights / fenders / rack
- Comfort saddle / suspension seatpost / upright handlebar
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | All-New, SmartForm C3 Alloy, step-thru Ride-Easy geometry, internal downtube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount |
Fork | All-New, SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts |
Headset | FSA, Alloy, 1-1/8" Ahead, semi-integrated |
Stem | Cannondale 3 with Intellimount, alloy, 31.8mm clamp |
Bars | Cannondale Cruise Control riser, 6061 alloy, 31.8mm clamp, 15 degree backsweep, 740mm width |
Front Brake | Tektro HD-R280 hydraulic disc, 160mm |
Rear Brake | Tektro HD-R280 hydraulic disc, 140mm |
Brake Lever | Tektro hydro disc |
Rear Mech | Shimano Alivio |
Shifters | Shimano Acera, 9-speed |
Speed | 9 |
Rims | Shining, 32 hole |
Front Hub | Sealed Alloy Disc, 12x100 |
Rear Hub | MAHLE ebikemotion X35 250W |
Spokes | Stainless Steel, 14g |
Front Tyre | Maxxis DTR-1, 650b x 47c |
Rear Tyre | Maxxis DTR-1, 650b x 47c |
Seat Post | Promax Suspension Seatpost, 31.6, 40mm |
Saddle | Cannondale Treadwell, 170mm, steel rails |
Chainset | Prowheel, 42T |
Bottom Bracket | Cartridge Sealed |
Chain | KMC E9T, 9-speed |
Cassette | Sunrace, 11-36, 9-speed |
Pedals | Cannondale Comfort |
Battery Size (WH) | MAHLE ebikemotion X35 250Wh |
Motor | Mahle ebikemotion X35 250W |
User Interface | MAHLE ebikemotion iWoc ONE |
Cannondale Treadwell Neo 2021 Size Chart
Size |
Height (cm) |
Height (in) |
S |
149 - 167 |
4' 10" - 5' 6" |
M |
162 - 182 |
5' 4" - 6' 0" |
L |
177 - 195 |
5' 10" - 6' 5" |
What size frame do I need if I am between sizes? - read here
Cannondale Treadwell Neo 2021 Geometry Chart
|
S |
M |
L |
Seat Tube Length (cm) |
38.7 |
45.0 |
51.3 |
Top Tube Horizontal (cm) |
55.7 |
57.9 |
60.0 |
Head Tube Angle |
70.5° |
71.0° |
71.0° |
Seat Tube Angle |
71.0° |
71.0° |
71.0° |
Standover (cm) |
66.5 |
70.9 |
74.7 |
Head Tube Length (cm) |
13.5 |
16.5 |
19.6 |
Wheelbase (cm) |
105.4 |
107.1 |
109.2 |
Front Center (cm) |
60.1 |
61.8 |
63.9 |
Chain Stay Length (cm) |
46.0 |
46.0 |
46.0 |
Bottom Bracket Drop (cm) |
6.4 |
6.4 |
6.4 |
Bottom Bracket Height (cm) |
28.0 |
28.0 |
28.0 |
Fork Rake (cm) |
5.5 |
5.5 |
5.5 |
Trail (cm) |
6.3 |
6.0 |
6.0 |
Stack (cm) |
55.0 |
58.0 |
61.0 |
Reach (cm) |
36.8 |
37.9 |
39 |
