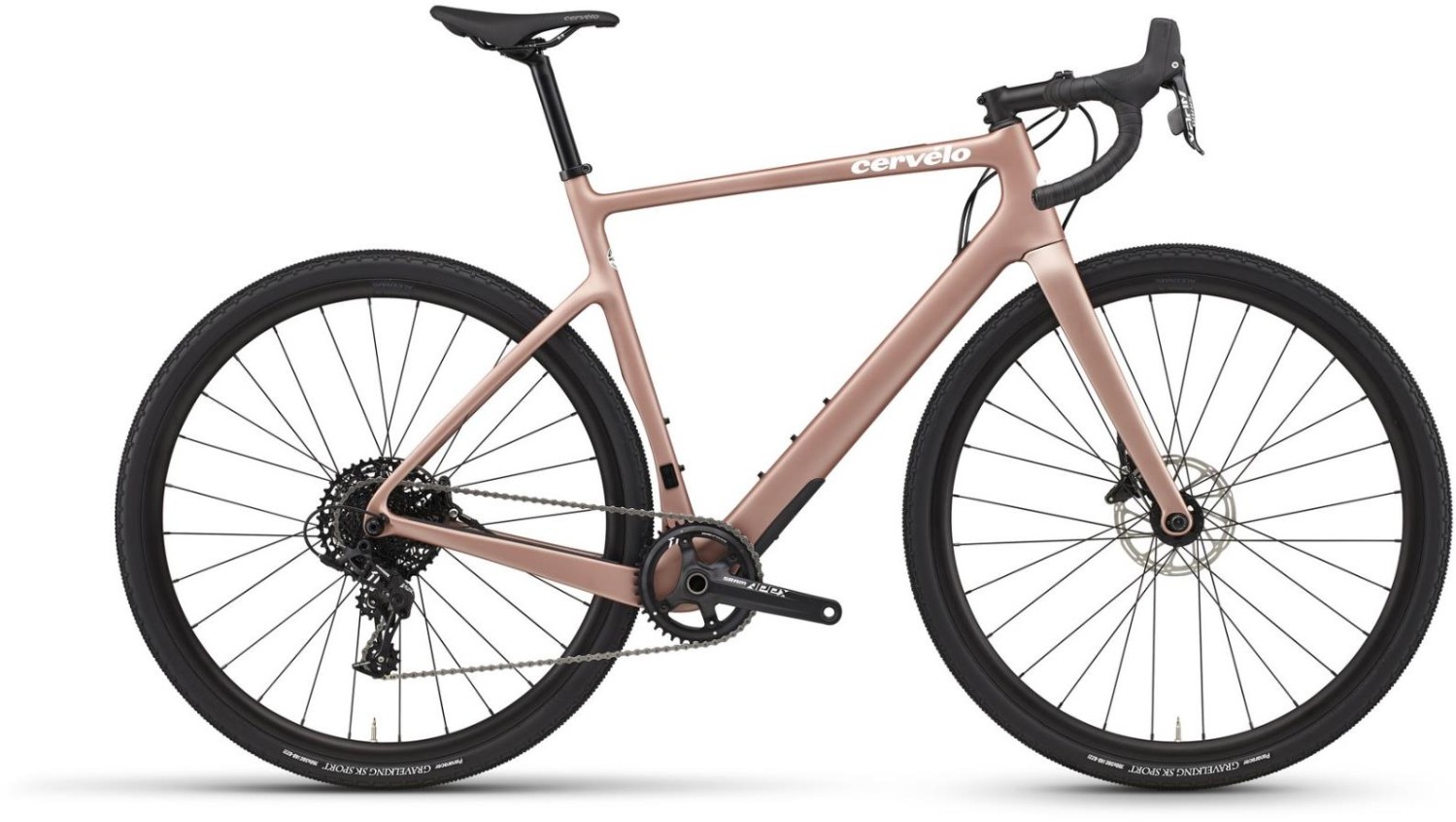

Cervelo Aspero Apex 1 2023 - Gravel Bike
We engineered Áspero for pure, unapologetic speed, ready to take down finish lines, KOMs, PRs, and FKTs. A bike built without limits, for the riders looking to test them. It’s stiff—Classics-racing stiff—and performs like you’d want a road bike to perform off-road. We think that makes sense, and it’s what we were trying to do when we were stuffing bigger tires into our existing frames and swapping in aftermarket forks to get a 40mm tire up front.
Trail—front-wheel response to rider input—is the most critical factor in high-velocity handling. Flipping the two-position "Trail Mixer" to compensate for the difference in circumference between a 650b and 700c tire maintains consistent handling by maintaining consistent trail figures.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Cervélo All-Carbon |
| Fork | Cervélo All-Carbon, Tapered Aspero Fork |
| Headset | FSA IS2 1-1/8 x 1-1/2 |
| Stem | Easton EA50 Alloy |
| Bars | Easton EC50 AX alloy |
| Front Brake | SRAM Apex, SRAM Centerline 6-Bolt |
| Rear Brake | SRAM Apex, SRAM Centerline 6-Bolt |
| Brake Lever | SRAM Apex |
| Rear Mech | SRAM Apex 1 Long Cage, 11 speed |
| Shifters | SRAM Apex, 11 speed |
| Speed | 11 |
| Rims | Alexrims Boondocks 7D |
| Front Hub | 12x100mm, 28H, 23mm IW, 6 bolt, tubeless compatible |
| Rear Hub | 12x100mm, 28H, 23mm IW, 6 bolt, tubeless compatible |
| Front Tyre | Panaracer Gravel King SK Sport 60tpi 700x38c |
| Rear Tyre | Panaracer Gravel King SK Sport 60tpi 700x38c |
| Seat Post | Cervélo Alloy 27.2 |
| Saddle | Cervélo Road Saddle |
| Chainset | SRAM Apex 1, 40T, 24mm spindle |
| Bottom Bracket | JY BBright, for GXP spindle |
| Chain | SRAM PC-1110, 11 speed |
| Cassette | SRAM PG 1130, 11-42, 11 Speed |
| Pedals | Resin Platform |
Cervelo Aspero Size Chart
|
Size |
Height (cm) |
Height (inches) |
|
48cm |
155 - 163 |
5'1”-5’4” |
|
51cm |
163 - 170 |
5’4” – 5’7” |
|
54cm |
170 – 178 |
5’7” – 5’10” |
|
56cm |
178 - 183 |
5’10” – 6’0” |
|
58cm |
183 - 191 |
6'0” - 6’3” |
|
61cm |
191 - 196 |
6’3” - 6'5" |
Cervelo Aspero Geometry
|
48
|
51
|
54
|
56
|
58
|
61
|
|
| STACK | 505MM | 530MM | 555MM | 580MM | 605MM | 630MM |
| REACH | 370MM | 379MM | 388MM | 397MM | 406MM | 415MM |
| SEAT TUBE ANGLE | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| TOP TUBE LENGTH | 512MM | 532MM | 553MM | 575MM | 591MM | 608MM |
| WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
| HEAD TUBE ANGLE | 71° | 71.5° | 72° | 72° | 72° | 72° |
| TRAIL * | 58.6(700C) / 58.1(650B)MM | 58.6(700C) / 58.1(650B)MM | 58.6(700C) / 58.1(650B)MM | 58.6(700C) / 58.1(650B)MM | 58.6(700C) / 58.1(650B)MM | 58.6(700C) / 58.1(650B)MM |
| FORK OFFSET | 52/57MM | 49/54MM | 46/51MM | 46/51MM | 46/51MM | 46/51MM |
| HEAD TUBE LENGTH | 83MM | 107MM | 133MM | 159MM | 188MM | 214MM |
| BOTTOM BRACKET DROP | 78.5MM | 78.5MM | 76MM | 76MM | 73.5MM | 73.5MM |
| FRONT CENTER | 583MM | 592MM | 602MM | 619MM | 637MM | 654MM |
| WHEELBASE | 990MM | 1000MM | 1010MM | 1027MM | 1046MM | 1063MM |
| STANDOVER HEIGHT | 690MM | 732MM | 764MM | 788MM | 814MM | 838MM |
| CHAINSTAY LENGTH | 420MM | 420MM | 420MM | 420MM | 420MM | 420MM |
What size frame do I need if I am between sizes? - read here
