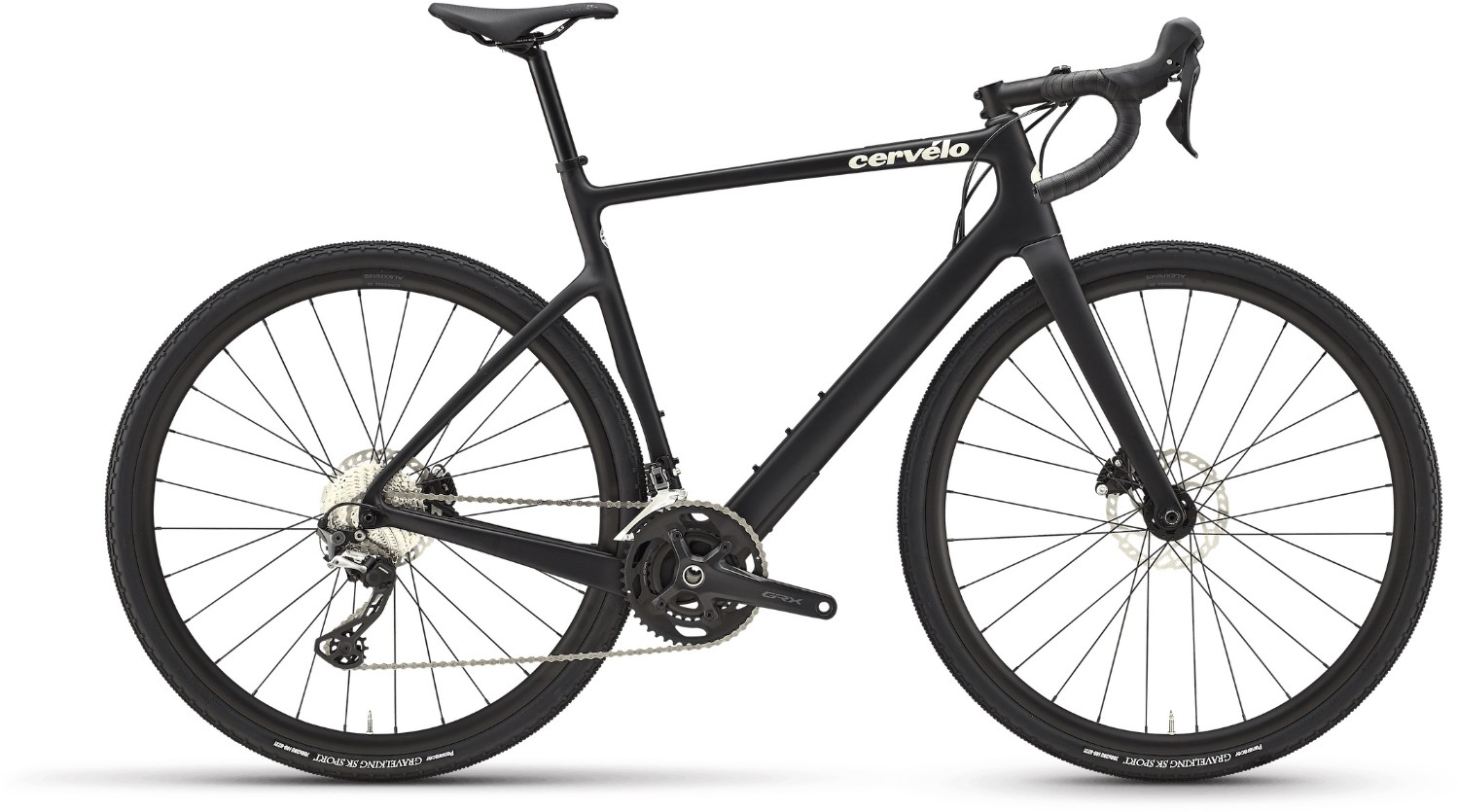

Cervelo Aspero GRX RX600 2023 - Gravel Bike
The Áspero. A bike built without limits, for the riders looking to test them. It’s stiff—Classics-racing stiff—and performs like you’d want a road bike to perform off-road. We think that makes sense, and it’s what we were trying to do when we were stuffing bigger tires into our existing frames and swapping in aftermarket forks to get a 40mm tire up front.
We designed Aspero with clearance for up to 700c x 40mm tires or 650b x 49mm tires. Of course, there are variables—rim width, tire casing, and tread depth—which will affect final clearance. We (and the International Organization for Standardization, or ISO), always recommend 4mm of clearance between the tire and frame.
**New Shimano road (not gravel) 12 speed front derailleurs reduce tire clearance in the rear of the frame to 700 x 38c or 650b x 45c.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Cervelo Carbon |
| Fork | Cervélo All-Carbon, Tapered Aspero Fork |
| Headset | FSA IS2 1-1/8 x 1-1/2 |
| Stem | Cervélo Alloy |
| Bars | Zipp Service Course 70 XPLR Alloy, 31.8mm clamp, 5 degree flare, 11 degree outsweep |
| Front Brake | Shimano GRX RX400, Shimano RT66 6-Bolt |
| Rear Brake | Shimano GRX RX400, Shimano RT66 6-Bolt |
| Brake Lever | Shimano GRX, RX600 |
| Front Mech | Shimano GRX, RX810, 11 speed |
| Rear Mech | Shimano GRX, RX810, 11 speed |
| Shifters | Shimano GRX, RX600, 11 speed |
| Speed | 22 |
| Rims | Alexrims Boondocks 7D |
| Front Hub | 12x100mm, 28H, 23mm IW, 6 bolt, tubeless compatible |
| Rear Hub | 12x100mm, 28H, 23mm IW, 6 bolt, tubeless compatible |
| Front Tyre | Panaracer Gravel King SK Sport 60tpi 700x38c |
| Rear Tyre | Panaracer Gravel King SK Sport 60tpi 700x38c |
| Seat Post | Cervélo Alloy 27.2 |
| Saddle | Cervélo Road Saddle |
| Chainset | Shimano GRX 600, 46/30T, 11 Speed |
| Bottom Bracket | FSA, BBright thread together, 24mm spindle |
| Chain | Shimano HG601, 11 speed |
| Cassette | Shimano HG700, 11-34, 11 Speed |
| Pedals | Resin Platform |
Cervelo Aspero Size Chart
|
Size |
Height (cm) |
Height (inches) |
|
48cm |
155 - 163 |
5'1”-5’4” |
|
51cm |
163 - 170 |
5’4” – 5’7” |
|
54cm |
170 – 178 |
5’7” – 5’10” |
|
56cm |
178 - 183 |
5’10” – 6’0” |
|
58cm |
183 - 191 |
6'0” - 6’3” |
|
61cm |
191 - 196 |
6’3” - 6'5" |
Cervelo Aspero Geometry
|
48
|
51
|
54
|
56
|
58
|
61
|
|
| STACK | 505MM | 530MM | 555MM | 580MM | 605MM | 630MM |
| REACH | 370MM | 379MM | 388MM | 397MM | 406MM | 415MM |
| SEAT TUBE ANGLE | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| TOP TUBE LENGTH | 512MM | 532MM | 553MM | 575MM | 591MM | 608MM |
| WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
| HEAD TUBE ANGLE | 71° | 71.5° | 72° | 72° | 72° | 72° |
| TRAIL * | 58.6(700C) / 58.1(650B)MM | 58.6(700C) / 58.1(650B)MM | 58.6(700C) / 58.1(650B)MM | 58.6(700C) / 58.1(650B)MM | 58.6(700C) / 58.1(650B)MM | 58.6(700C) / 58.1(650B)MM |
| FORK OFFSET | 52/57MM | 49/54MM | 46/51MM | 46/51MM | 46/51MM | 46/51MM |
| HEAD TUBE LENGTH | 83MM | 107MM | 133MM | 159MM | 188MM | 214MM |
| BOTTOM BRACKET DROP | 78.5MM | 78.5MM | 76MM | 76MM | 73.5MM | 73.5MM |
| FRONT CENTER | 583MM | 592MM | 602MM | 619MM | 637MM | 654MM |
| WHEELBASE | 990MM | 1000MM | 1010MM | 1027MM | 1046MM | 1063MM |
| STANDOVER HEIGHT | 690MM | 732MM | 764MM | 788MM | 814MM | 838MM |
| CHAINSTAY LENGTH | 420MM | 420MM | 420MM | 420MM | 420MM | 420MM |
What size frame do I need if I am between sizes? - read here
