Colnago E64 Ultegra Disc 2020 - Electric Road Bike

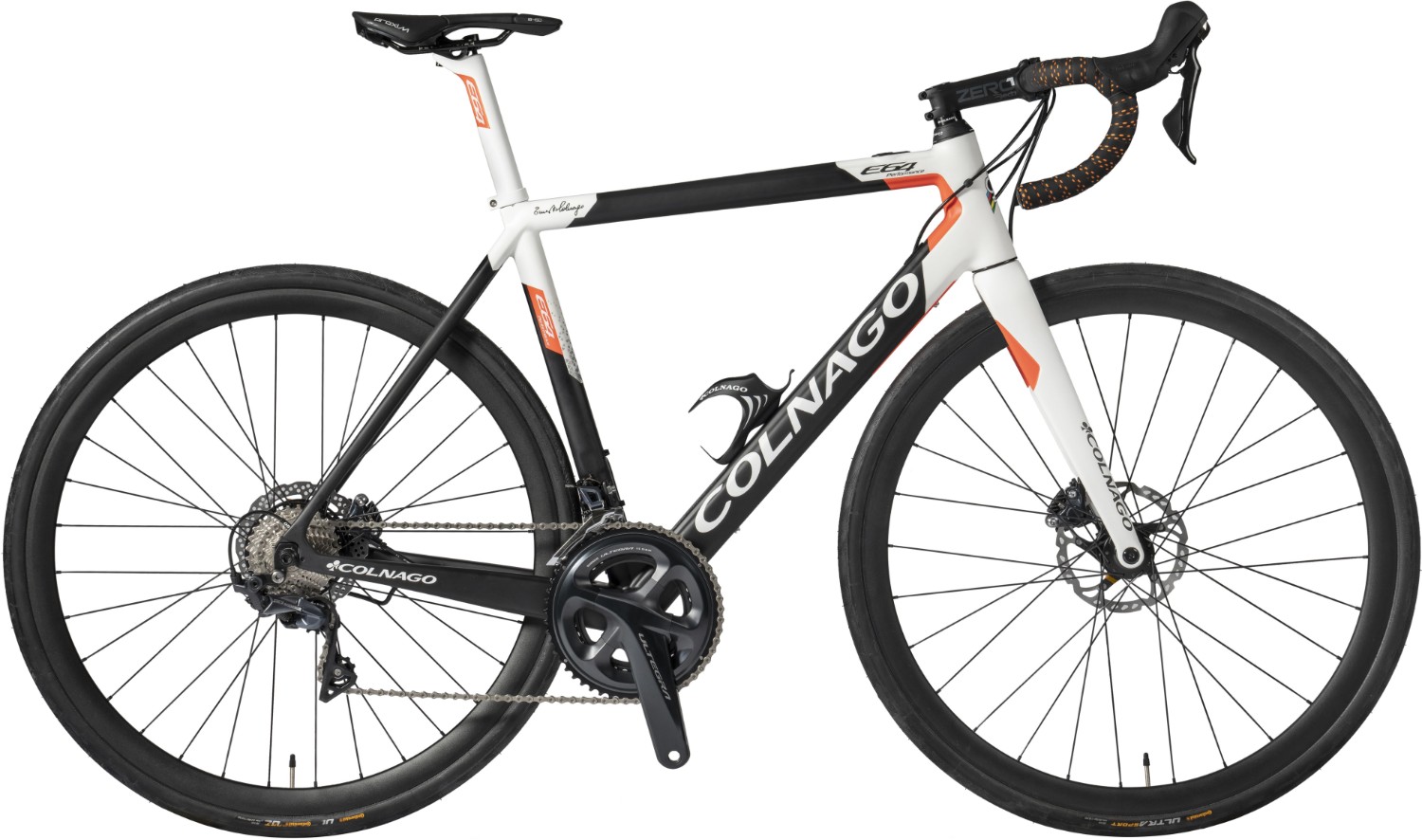

Image is for illustration purposes only - Actual Specification may differ from that shown.
COLNAGO EVOLUTION
The "Evolution" project is born to break down the limits of classic human powered bicycles. Rediscover the pleasure of pedalling thanks to the intelligence of the servo assisted system. Challenge yourself and get back in the game.
COMPACT AND LIGHT
A rear hub motor and a downtube that located in the downtube the battery keeps the weight low while keeping a pleasing aesthetic. The E64 is unlike any other ebike out there.
EBIKEMOTION
Thanks to the iWOC button electronic assistance can be deactivated or adjusted with a simple touch.
Login to www.ebikemotion.com or use the smartphone app (iOS & Android) to view information reports, location, report a theft, change owners and more.
Specifications | |
---|---|
Frame | Colnago E64 Carbon |
Fork | Colnago C64 Disc Carbon Monocoque 12mm TA |
Seat Post | Colnago C64 Carbon Aero Seatpost |
Handlebar | Deda Zero RHM Alloy 6061 |
Stem | Deda Zero 1 |
Wheelset | Mavic Aksium Elite Evo UST EBM |
Rear Motor Hub | Ebikemotion 36V, 250W, 40Nm Hub Motor |
Tyres | Continental Ultra Sport II, 28-622, 700 x 28C |
Chain | KMC |
Crankset | Shimano Ultegra 50/34T |
Brakes | Shimano Ultergra |
Front Derailleur | Shimano FD-R8000 Ultegra |
Rear Derailluer | Shimano RD-R8000 Ultegra |
Cassette | Shimano Ultegra 11-30T |
Saddle | Prologo Proxim W450 |
Battery | Ebikemotion 36V, 250Wh, 18650GA-10S/2P |
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Colnago E-64 Carbon |
Fork | Colnago C64 Disc Carbon |
Stem | Deda Zero 1 |
Bars | Deda Zero RHM |
Front Brake | Shimano Ultegra ST-R8020, BR-R8070, 160mm |
Rear Brake | Shimano Ultegra ST-R8020, BR-R8070, 160mm |
Front Mech | Shimano Ultegra FD-R8000 |
Rear Mech | Shimano Ultegra RD-R8000 |
Speed | 22 |
Rims | Mavic Aksium Elite |
Front Tyre | Continantal Ultra Sport II 700 x 28C |
Rear Tyre | Continantal Ultra Sport II 700 x 28C |
Saddle | Prologo Proxim |
Chainset | Shimano Ultegra FC-R8000 34/50T |
Chain | Kmc X11-1 |
Cassette | Shimano Ultegra CS-R8000, 11-30T |
Pedals | Basic Resin Flat |
Battery Size (WH) | EBikeMotion 36v 250w |
Motor | EBikeMotion Drive M1 |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Colnago E64 Ultegra Disc 2020 - Electric Road Bike.
This product is no longer available.
