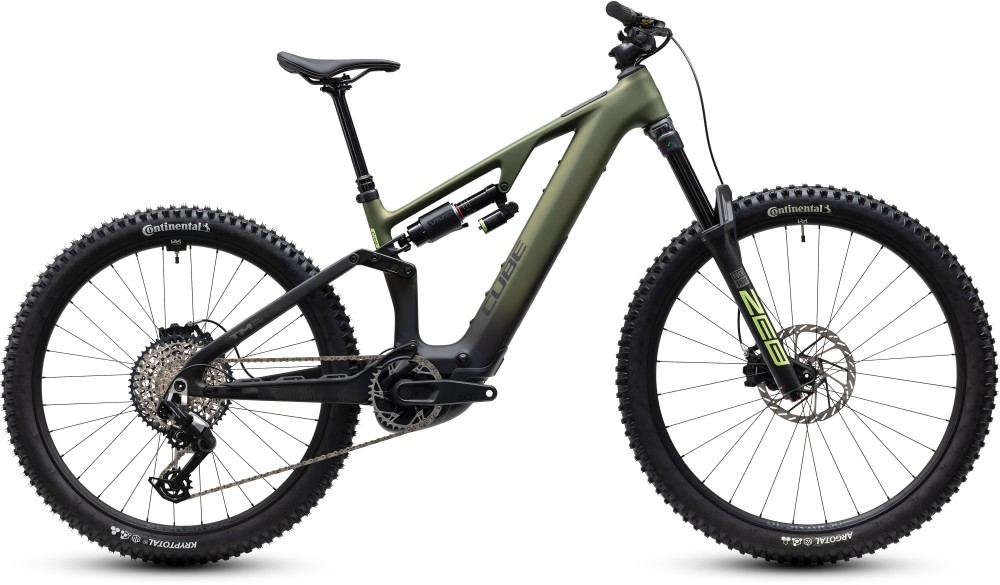

Cube AMS Hybrid 177 C:62 TM 600X 2027 - Electric Mountain Bike
The Cube AMS Hybrid 177 C:62 TM 600X is a carbon electric mountain bike built for challenging terrain. Featuring a Bosch CX motor, 600Wh battery, RockShox suspension and SRAM Eagle 90 Transmission, it combines responsive handling with the control needed for steep climbs and technical descents.
Key Features:
- Frame: C:62 carbon frame with Advanced Twin Mold Technology and Agile Trail Geometry.
- Fork: RockShox Zeb Select+ Charger 3.2 RC2 air fork with 170mm travel.
- Rear Shock: RockShox Vivid Select, 230x65mm, with rebound adjustment and 2-position lever.
- Drivetrain: SRAM Eagle 90 Transmission 1x12-speed with 36T chainring and 10-52T cassette.
- Brakes: SRAM Maven Silver hydraulic disc brakes with 200mm rotors.
- Wheels: Newmen Beskar 30 tubeless-ready wheels with Continental 2.4-inch tyres.
- Extras: Remote dropper post, adjustable headset and 22.5kg claimed weight.
- Available with 0% APR finance.
Drive Information:
- Motor: Bosch Performance Line CX mid-drive motor with up to 120Nm torque.
- Battery: Bosch PowerTube 600Wh integrated battery.
- User Interface: Bosch Kiox 400C integrated colour display; remote not specified.
C:62 Carbon Frame
The Cube AMS Hybrid 177 C:62 TM 600X features a C:62 carbon frame manufactured using Advanced Twin Mold Technology, combining low weight with the strength required for demanding enduro riding.
Agile Trail Geometry provides stability on steep descents while maintaining responsive handling through technical sections. The Efficient Trail Control suspension system uses an FSP 4-Link design, while adjustable headset inserts allow riders to fine-tune the steering geometry.
RockShox Zeb Select+ Suspension Fork
The RockShox Zeb Select+ fork provides 170mm of travel, helping absorb large impacts and maintain control through rough terrain.
Its Charger 3.2 RC2 damper offers adjustable high- and low-speed compression alongside rebound adjustment, allowing riders to fine-tune suspension performance to suit different trails and riding preferences.
RockShox Vivid Select Rear Shock
The RockShox Vivid Select rear shock features a 230x65mm configuration, providing controlled suspension performance over repeated impacts and technical descents.
Rebound adjustment and a two-position lever allow riders to adapt the shock's behaviour for climbing and descending.
Bosch Performance Line CX Motor and 600Wh Battery
The Bosch Performance Line CX motor delivers up to 120Nm of torque through compatible system settings, providing responsive pedal assistance for steep climbs and demanding off-road riding.
The integrated Bosch PowerTube 600Wh battery balances energy capacity with the bike's lightweight design. Actual range will depend on terrain, assistance level, rider weight and riding conditions.
Bosch Kiox 400C Display
The Bosch Kiox 400C features a colour display integrated into the top tube, providing easy access to speed, battery charge and assistance information.
Compatible with Bosch's Smart System, it also supports additional features and system settings through the eBike Flow app.
SRAM Eagle 90 Transmission
The SRAM Eagle 90 Transmission provides dependable mechanical 12-speed shifting, using a direct-mount derailleur designed for demanding mountain bike use.
A 36T ACID MTB Hybrid Pro chainring and wide-range 10-52T SRAM cassette provide suitable gearing for steep climbs and faster trail sections. The single-click shifter delivers controlled gear changes, while the robust Transmission design is built to withstand demanding off-road conditions.
SRAM Maven Silver Hydraulic Disc Brakes
SRAM Maven Silver hydraulic disc brakes provide powerful, progressive stopping performance for steep descents and technical trails.
With 200mm rotors front and rear, they offer consistent braking control when managing speed on challenging terrain.
Newmen Beskar 30 Wheels and Continental Tyres
The Newmen Beskar 30 tubeless-ready wheelset features a durable construction with Boost hub spacing, designed to handle demanding enduro riding.
A Continental Argotal Enduro SuperSoft 2.4-inch front tyre provides grip on loose and technical terrain, while the Kryptotal Rear Downhill Soft tyre offers traction and durability under braking and acceleration.
Dropper Post and Trail Components
The CUBE dropper post allows riders to lower their saddle using a handlebar-mounted lever, providing greater freedom of movement on steep descents.
Newmen Beskar handlebars feature Cube's VariGrip System, while an ACID Venec EMTB Trail 140 saddle completes the cockpit.
Built for Enduro Adventures
With its C:62 carbon frame, long-travel RockShox suspension, Bosch CX motor and SRAM Eagle Transmission, the Cube AMS Hybrid 177 C:62 TM 600X is designed for riders tackling steep climbs, rough descents and challenging enduro trails.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing |
| Fork | RockShox Zeb Select+ Charger 3.2 RC2 Air, Tapered, 15x110mm, 170mm |
| Rear Shock | RockShox Vivid Select, 230x65, Rebound Adjust, 2-Position Lever |
| Headset | Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Stem | Newmen Evolution SL 318.4, 31.8mm |
| Bars | Newmen Beskar 318.40 VariGrip System |
| Front Brake | Sram Maven Silver, Hydr. Disc Brake (200/200) |
| Rear Brake | Sram Maven Silver, Hydr. Disc Brake (200/200) |
| Rear Mech | Sram Eagle 90 Transmission, 12-Speed |
| Shifters | Sram Eagle 90 Transmission, Single Click |
| Speed | 12 |
| Rims | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Hub | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Rear Hub | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Spokes | 28/32 Spokes |
| Front Tyre | Conti Argotal, Enduro SuperSoft, Tubeless Ready, 2.4 |
| Rear Tyre | Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4 |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Saddle | ACID Venec EMTB Trail 140 |
| Chainset | ACID MTB Hybrid Pro, 36T |
| Chain | Sram GX Eagle™ Transmission |
| Cassette | Sram XS-1275, 10-52T |
| Pedals | ACID PP Rookie large |
| Weight | 22,5 kg |
| Battery Size (WH) | Bosch PowerTube 600 |
| Motor | Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) |
| User Interface | Bosch Kiox 400C |
Cube AMS Size Chart
|
Size |
Height (cm) | Height (in) |
|
S - 16" |
163 – 170 | 5’4” – 5’7” |
|
M - 18" |
169 – 179 | 5’6” – 5’10” |
| L - 20" | 178 – 188 | 5’10” – 6’2” |
| XL - 22" | 187 - 197 | 6’2” – 6’5” |
What size frame do I need if I am between sizes? - read here
