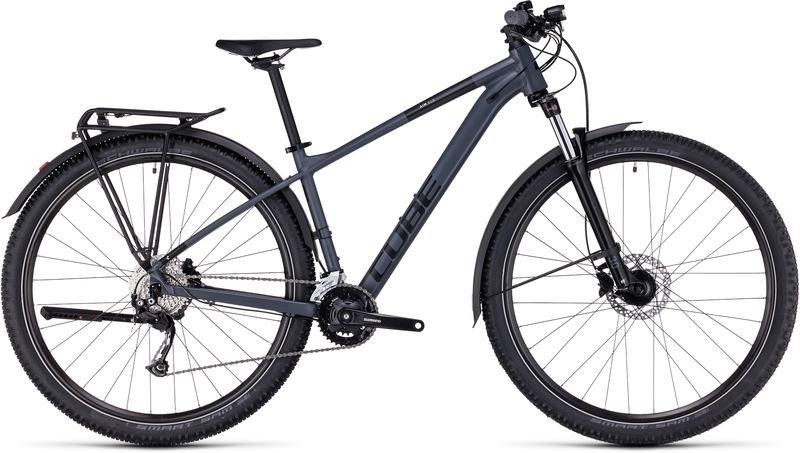

Cube Aim SLX Allroad Mountain Bike 2024 - Hardtail MTB
- Versatile frame with full-length mudguards, luggage carrier, and lighting system for urban commuting and off-road adventures
- Threaded bottom bracket and internal cable routing for durability and easy maintenance
- Flat disc mount seamlessly integrates with the included kickstand for added convenience
- Updated geometry with a lower top tube for confident handling
- Room for wide, grippy, and comfortable 2.25-inch tyres
- SizeSplit system offers an expanded range to ensure a perfect fit for every rider
- Shimano dynamo hub for powering lights and other accessories
- Available with 0% APR finance for convenient payment options
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Fork | SR Suntour XCM Disc, 100mm, Remote Lockout |
| Headset | CUBE FPH868, Semi-Integrated |
| Stem | CUBE Performance Stem Race, 31.8mm |
| Bars | CUBE Rise Trail Bar, 680mm |
| Front Brake | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Rear Brake | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Front Mech | Shimano FD-M2020, Top Swing, 31.8mm Clamp |
| Rear Mech | Shimano RD-M3100-SGS, 9-Speed |
| Shifters | Shimano SL-M2010-9R, Rapidfire-Plus |
| Speed | 18 |
| Rims | CUBE ZX20, 32H, Disc |
| Front Hub | Shimano DH-3D32, Hub Dynamo, QR |
| Rear Hub | Shimano HB-TX506, QR, 6-Bolt |
| Front Tyre | Schwalbe Smart Sam, Active, 2.25 |
| Rear Tyre | Schwalbe Smart Sam, Active, 2.25 |
| Seat Post | CUBE Performance Post, 27.2mm |
| Saddle | Natural Fit Venec Lite |
| Chainset | Shimano FC-MT101, 36x22T |
| Chain | KMC X9 |
| Cassette | Shimano CS-HG201, 11-36T |
| Pedals | ACID PP MTB |
| Weight | 16.8 |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
