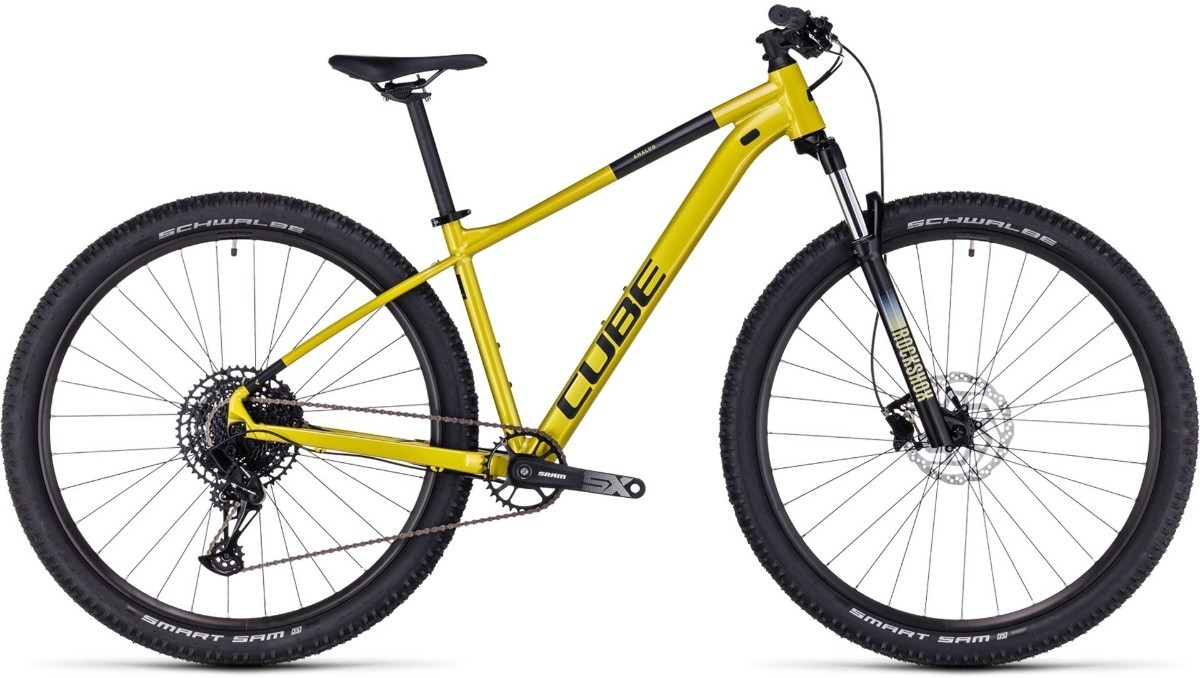

Cube Analog - Nearly New - M 2024 - Hardtail MTB Bike
Designed from Aluminium Lite with smooth-welded junctions and internal cable routing, it epitomizes durability and elegance. Its SRAM Eagle 1x12 transmission delivers versatility and reliability. The RockShox Judy Silver TK Coil fork provides 100mm of controlled suspension with a convenient lockout. Hydraulic disc brakes ensure stopping power, while grippy 2.25in Schwalbe Smart Sam tyres offer traction. The Analog's thoughtful design includes integrated mudguard and carrier mounts, reflecting Cube's commitment to functionality. The SizeSplit system guarantees a perfect fit, and with the option of a future dropper post upgrade, it's a hardtail tailored to your evolving skills.
- Frame: Aluminium Lite, AMF, double-butted, internal cable routing, tapered head tube, flat mount brake, SIC mount, FM kickstand mount.
- Front Suspension: RockShox Judy Silver TK Coil, 100mm, lockout.
- Drivetrain: Sram SX Eagle™ 12-speed, Sram SX Eagle™ trigger shifters, Sram SX Eagle™ Powerspline 32t chainset.
- Brakes: Shimano BR-MT200/UR300 hydraulic disc brakes (180/160).
- Wheels: Cube ZX20, 32h, disc; Schwalbe Smart Sam, Active, 2.25 tyres.
- Other Features: Smooth-welded junctions, SizeSplit system, internal cable routing, Cube Performance Post, Natural Fit Venec Lite saddle.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Fork | RockShox Judy Silver TK Coil, 100mm, Lockout |
| Headset | CUBE FPH868, Semi-Integrated |
| Stem | CUBE Performance Stem SLX, 31.8mm |
| Bars | CUBE Rise Trail Bar, 680mm |
| Front Brake | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160) |
| Rear Brake | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160) |
| Rear Mech | Sram SX Eagle™, 12-Speed |
| Shifters | Sram SX Eagle™ Trigger |
| Speed | 12 |
| Rims | CUBE ZX20, 32H, Disc |
| Front Hub | Shimano HB-TX505, QR, Centerlock |
| Rear Hub | Shimano FH-TX505, QR, Centerlock |
| Front Tyre | Schwalbe Smart Sam, Active, 2.25 |
| Rear Tyre | Schwalbe Smart Sam, Active, 2.25 |
| Seat Post | CUBE Performance Post, 27.2mm |
| Saddle | Natural Fit Venec Lite |
| Chainset | Sram SX Eagle™ Powerspline, 32T, 175mm |
| Chain | Sram SX Eagle™ |
| Cassette | Sram PG-1210 Eagle™, 11-50T |
| Pedals | ACID PP MTB |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Cube Analog - Nearly New - M 2024 - Hardtail MTB Bike.
This product is no longer available.
