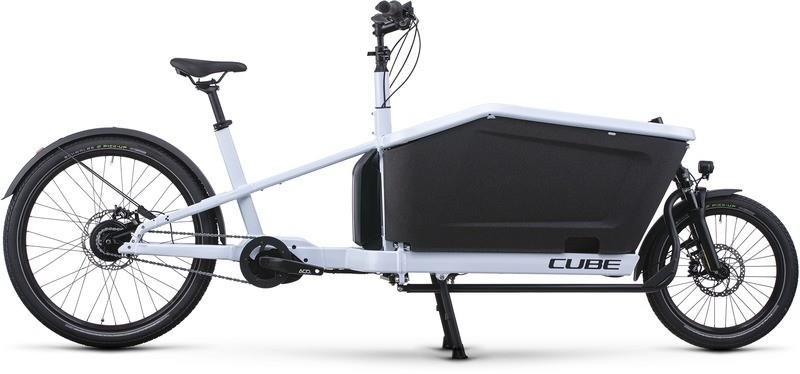

Cube Cargo Hybrid 500 2026 - Electric Cargo Bike
The Cube Cargo Hybrid 500 is purpose-built to carry what matters most, whether that’s children, shopping or heavy loads. With a maximum system weight of 220kg, it has the strength and stability to handle bulky cargo with confidence yet remains easy to manoeuvre through busy city streets.
Key Features
- Aluminium cargo frame, max system weight 220kg
- SR Suntour Mobie Cargo fork, 80mm travel
- Enviolo Cargo hub gearing, stepless manual system
- Magura CMe hydraulic disc brakes, 180/203mm rotors
- 20” front / 27.5” rear wheels, Schwalbe Pick-Up tyres
- Large EPP foam cargo box with optional child seat
- Available with 0% APR finance
Drive Information
- Motor: Bosch Cargo Line Gen 4, 85Nm torque
- Battery: Bosch PowerPack 500Wh
- User Interface: Bosch Intuvia display with remote
The aluminium frame is designed specifically for cargo use, with the Bosch Cargo Line motor positioned low and central for balanced handling. The large EPP foam box at the front provides a safe, adaptable space that can be fitted with optional seating for two children, complete with seatbelts and a rain cover.
Power comes from Bosch’s 4th generation Cargo Line drive unit, delivering up to 85Nm of torque to make light work of hills, even when fully loaded. A 500Wh battery provides ample range for daily tasks, and a second battery mount is included for those who want to extend their riding distance further.
Shifting is taken care of by the Enviolo Cargo hub gear system, which offers smooth, stepless changes that are easy to use under load. Braking confidence comes from Magura hydraulic discs with oversized 180/203mm rotors, ensuring reliable stopping power in all conditions. To improve comfort and control, the bike features a cargo-specific SR Suntour Mobie fork with 80mm travel, while wide Schwalbe Pick-Up tyres add extra stability and grip.
Practical details include a BySchulz Speedlifter handlebar system for quick fit adjustments, integrated front and rear lights, full-length mudguards, and a sturdy kickstand to keep the bike upright when parked.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Frame |
| Fork | SR Suntour MOBIE CARGO, 80mm |
| Headset | Cube H835D3, semi-integrated with sealed bearings and Cane Creek Viscoset |
| Stem | BySchulz Speedlifter Classic |
| Bars | CUBE Comfort Trail Bar, 680mm |
| Front Brake | Magura CMe, Hydr. Disc Brake (180/203) |
| Rear Brake | Magura CMe, Hydr. Disc Brake (180/203) |
| Shifters | Enviolo Cargo manual |
| Speed | 1 |
| Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
| Front Hub | Shimano HB-MT400, 15x100mm , Centerlock |
| Rear Hub | Enviolo Cargo,380%, 10x135mm |
| Front Tyre | Schwalbe Pick-Up, Super Defense, 60-406 |
| Rear Tyre | Schwalbe Pick-Up, Super Defense, 65-584 |
| Seat Post | Newmen Evolution, 30.9mm |
| Saddle | Natural Fit Sequence Comfort |
| Chainset | ACID E-Crank, 170mm, 38T |
| Chain | KMC Z610 |
| Cassette | Enviolo 20T |
| Pedals | CUBE PP MTB |
| Weight | 48.1 |
| Battery Size (WH) | Bosch PowerPack 500 |
| Motor | Bosch Drive Unit Cargo Line Generation 4 (85Nm) Cruise (250Watt) |
| User Interface | Bosch Intuvia |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
