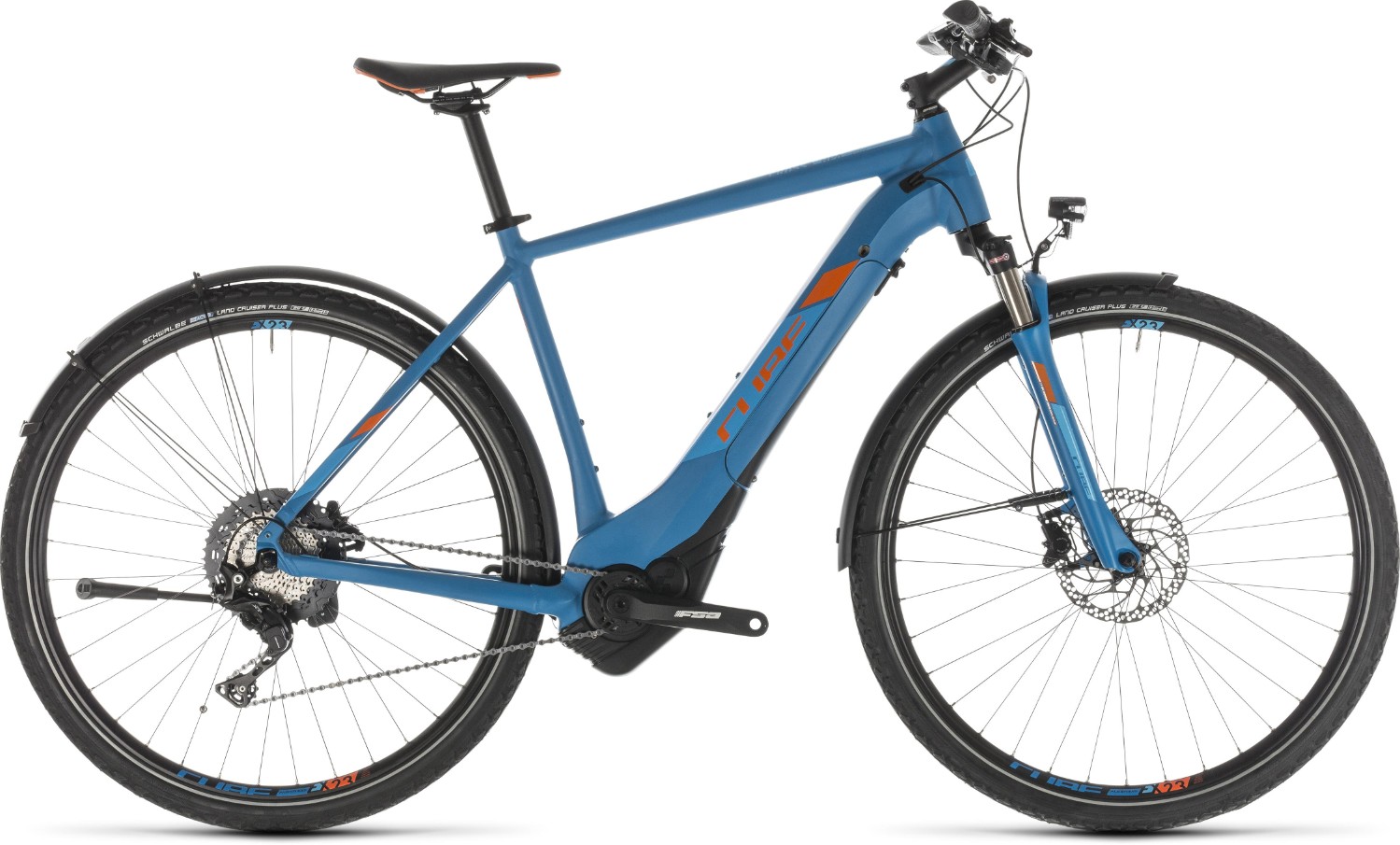

Cube Cross Hybrid Race 500 Allroad 2019 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting, Comfort, Tapered Headtube, Internal Cable Routing, Full Integrated Battery |
| Fork | SR Suntour NCX D LO Air, 63mm, Lockout |
| Headset | FSA Orbit 1.5E ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| Stem | CUBE Performance Stem Pro, 31.8mm |
| Bars | CUBE Rise Trail Bar, 700mm |
| Front Brake | Shimano BR-MT400, Hydr. Disc Brake 180mm |
| Rear Brake | Shimano BR-MT400, Hydr. Disc Brake 180mm |
| Rear Mech | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed |
| Shifters | Shimano SLX SL-M7000 |
| Speed | 11 |
| Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
| Front Hub | Shimano Deore HB-M6000, QR, Centerlock |
| Rear Hub | Shimano Deore FH-M6000, QR, Centerlock |
| Front Tyre | Schwalbe Land Cruiser, Active, 47x622 |
| Rear Tyre | Schwalbe Land Cruiser, Active, 47x622 |
| Seat Post | CUBE Performance Post, 27.2mm |
| Saddle | Natural Fit Active |
| Chainset | FSA CK-745, 16T, 175mm |
| Chain | KMC X11e |
| Cassette | Shimano SLX CS-M7000, 11-46T |
| Pedals | CUBE PP MTB |
| Battery Size (WH) | 500 Wh |
| Motor | Bosch |
| User Interface | Bosch Purion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Cube Cross Hybrid Race 500 Allroad 2019 - Electric Hybrid Bike.
This product is no longer available.
