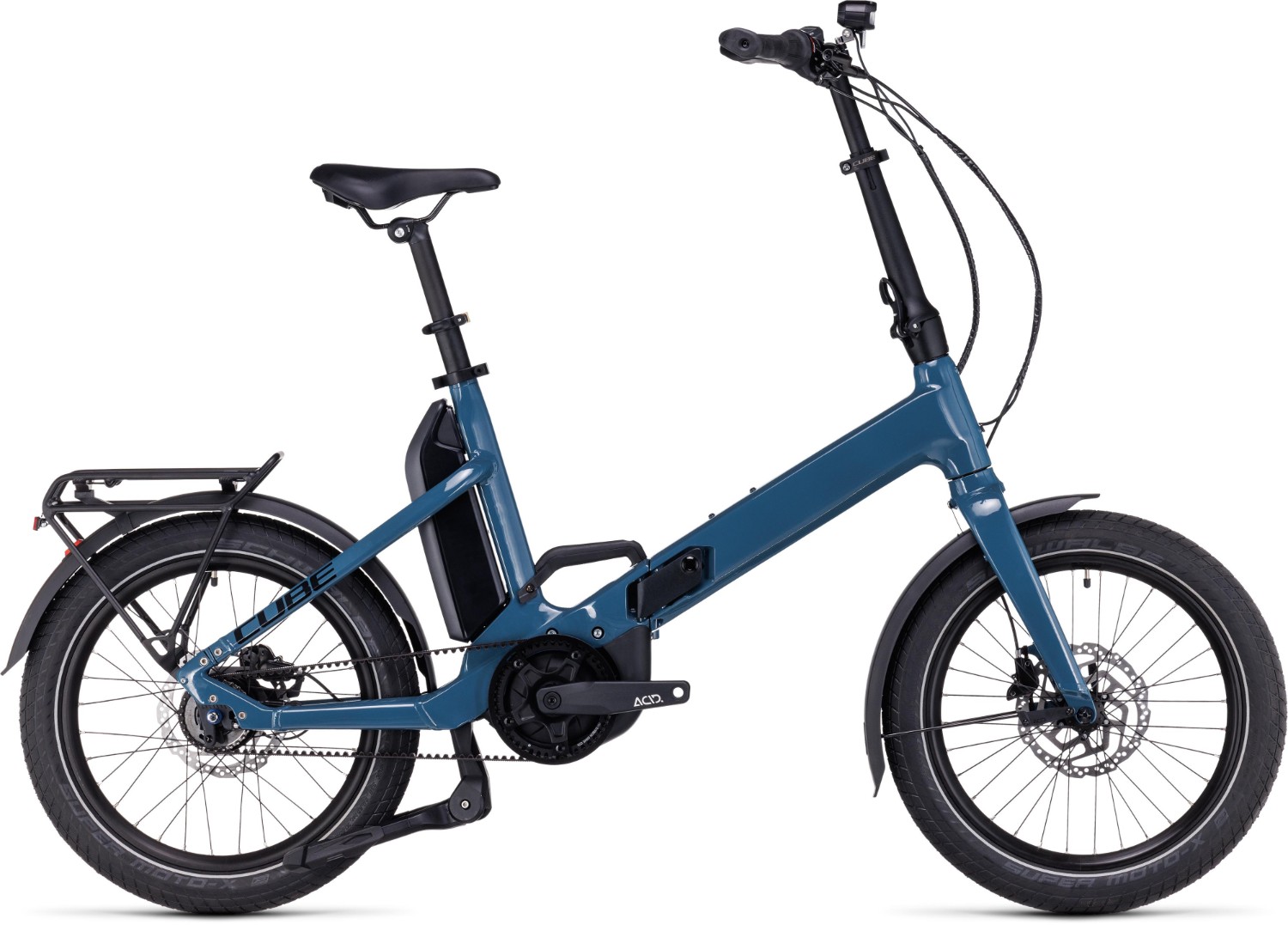

Cube Fold Hybrid 500 2023 - Electric Folding Bike
A great bike should fit easily into your busy life – and that's what Cube had in mind when they developed the brand-new Cube Fold Hybrid 500 electric folding bike. Combining the power of Bosch's Performance motor and a 500Wh battery with the convenience of a sophisticated, easy-to-use folding design, it makes light work of any journey and stows into a compact form for storage or transport. Shimano's simple, tough and almost maintenance-free 5-speed Nexus hub gears have the range you need, and the included rear carrier – and optional front carrier – make it easy to take everything you need with you. With mudguards, a sturdy kickstand and a rugged carrying handle, it has everything you need.
Key features:
- Aluminium Superlite frame
- Aluminium 20" fork is lightweight and rigid
- Shimano Nexus 5-speed hub for maintenance free shifting
- Shimano brakes offer all-weather stopping power
- Schwalbe Super Moto-X tyres give plenty of traction in most conditions
- Sizes: 20”
- Colours: teak/black
- The Cube Fold Hybrid 500 is available with 0% APR finance
Drive Information:
- Motor: Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
- Battery: Bosch PowerPack 500
- User Interface: Bosch Purion
Frame description
When Cube set out to design our new foldable Bosch e-bike, they wanted it to set new standards for flexibility, mobility and functionality. The fact that it also looks great is no coincidence, because form often follows function. With its clever folding mechanism and integrated carry handle, the Fold Hybrid 500 is easy to store or transport in an efficient, space-saving size and shape. Simple saddle and handlebar adjustments mean it's quick to set up for almost any rider height. We included mudguards, a really stable kickstand and a sturdy rear carrier. And an optional front carrier – plus a wide range of bags and baskets that attach quickly and simply via innovative mechanisms – make it simple to carry whatever you need along for the ride. You'll wonder how you ever managed without it.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Front-Carrier Ready, Slider Dropout, Integrated Folding Technology, Carrying Handlebar |
Fork | Aluminium 20" |
Headset | ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | Cube Folding Stem, Adjustable Length, 25,4mm Clamp |
Bars | CUBE Comfort Trail Bar, 680mm, 25,4mm |
Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Shifters | Shimano Nexus SL-C7000-5 |
Speed | 5 |
Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
Front Hub | Shimano HB-TX505, QR, Centerlock |
Rear Hub | Shimano Nexus SG-C7000-5D, 5-Speed |
Front Tyre | Schwalbe Super Moto-X, Double Defense, 62-406 |
Rear Tyre | Schwalbe Super Moto-X, Double Defense, 62-406 |
Seat Post | Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost |
Saddle | Natural Fit Sequence |
Chainset | ACID E-Crank, 165mm, Gates CDX, 46T with Beltguard |
Cassette | Gates CDX Shimano Nexus 28T |
Pedals | ACID PP Trekking |
Battery Size (WH) | Bosch PowerPack 500 |
Motor | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
User Interface | Bosch Purion |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Cube Fold Hybrid 500 2023 - Electric Folding Bike.
This product is no longer available.
