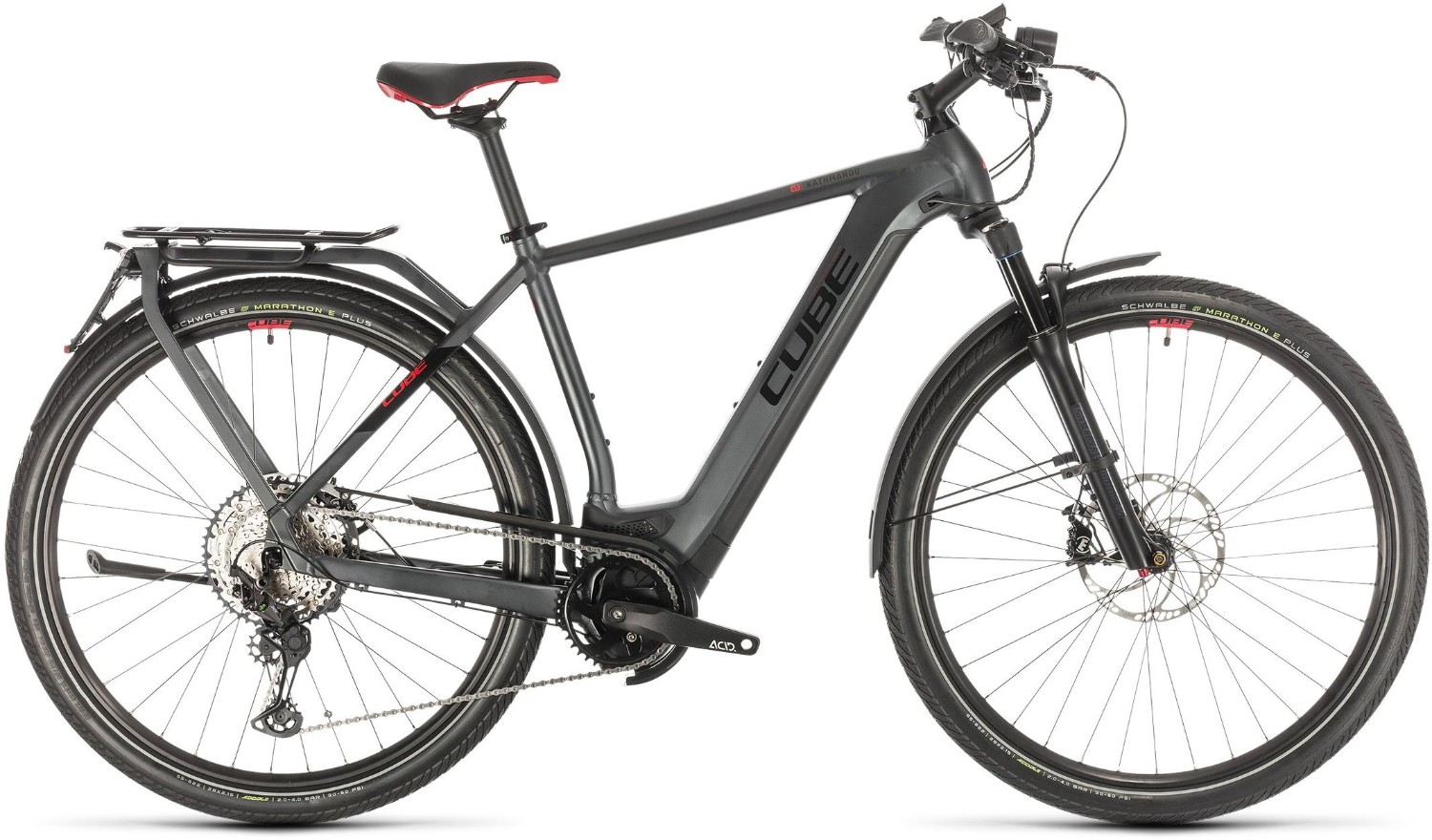

Cube Kathmandu Hybrid 45 625 2021 - Electric Hybrid Bike
The Kathmandu Hybrid carries with it a deserved reputation for versatility, durability and comfort. Completely redesigned around Bosch's superb new fourth-generation CX drive unit for 2020, we've built on this solid foundation with a new frame that's better looking, more practical and easier to live with than ever. The heart of the new frame is the gravity cast down tube with new Modular Battery System. Protected behind an easily accessed cover, the Bosch power unit fits tidily within the Kathmandu Hybrid's sleek frame, leaving plenty of space for bottle cage mounts and the option of a larger capacity battery for extended range. The new Integrated Carrier 2.0 provides the most stable platform possible for carrying your gear, whilst complementing the frame's clean lines and boasting replaceable wear components – so you're assured of a long service life. The tapered head tube assures accurate steering from the 100mm suspension fork, internal cable routing keeps gear shifts clean and precise with no need for regular maintenance, and we even included a neatly integrated kickstand mount. As every keen traveller knows, the secret to success lies in the details.
Speed pedelecs re-write the rules of urban cycling – and the Kathmandu Hybrid 45 re-writes the rules for speed pedelecs. Conceived around our versatile, comfortable and practical Kathmandu Hybrid frame, fourth-generation Bosch power with a powerful 625Wh battery and easy-to-use Intuvia controller puts the world at your feet. Full of neat touches and equipped with the most reliable components we could find, you'll wonder how you ever managed without it. The elegant frame features our sleek, strong and sturdy Integrated Carrier 2.0 – the perfect way to carry your belongings and essentials with you, whether you're just nipping across town or exploring further afield at the weekend. The high-capacity battery is entirely contained within the bike's down tube, thanks to our new Modular Battery System – but you can charge it without removing it. A Shimano 12-speed SLX and XT transmission transfers your pedalling and the Bosch system's power seamlessly and smoothly to the rear wheel, while comfortable and grippy Marathon E-Plus tyres in a 55mm width work with the Suntour Mobie45 air suspension fork to ensure you're comfortable and in full control. Powerful Magura hydraulic disc brakes with oversized rotors offer dependable stopping whatever the weather, full-length mudguards help keep you drier, built-in lights – with a brake light, too – ensure you can always see and be seen... and we even included a convenient kickstand so that you don't need to rely on the nearest wall or lamppost. Fully equipped for any journey, the Kathmandu Hybrid 45 is the eco-friendly way to get around that you've been looking for.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0 |
Fork | SR Suntour Mobie 45 LO-R Air, 100mm |
Headset | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
Stem | CUBE Performance Stem Pro, 31.8mm |
Bars | Cube Rise Trail Bar Pro, 720mm |
Front Brake | Magura MT5e, Hydr. Disc Brake (203mm) |
Rear Brake | Magura MT5e, Hydr. Disc Brake (203mm) |
Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Shifters | Shimano XT SL-M8100 |
Speed | 12 |
Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear Hub | Shimano FH-MT500, QR, Centerlock |
Front Tyre | Schwalbe Marathon E-Plus, 55-622 |
Rear Tyre | Schwalbe Marathon E-Plus, 55-622 |
Seat Post | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence+ Comfort |
Chainset | ACID E-Crank, 38T, 175mm |
Chain | Shimano SLX CN-M7100 |
Cassette | Shimano SLX CS-M7100, 10-51T |
Pedals | CUBE PP Trekking |
Weight | 25.9kg |
Battery Size (WH) | 625wh |
Motor | Bosch Drive Unit Performance CX Generation 4 (75Nm) Speed (350Watt) |
User Interface | Bosch Intuvia |
Cube Kathmandu Hybrid Size Chart
Frame Size |
Height (cm) |
Height (feet) |
46cm |
165 - 170 |
5’5” – 5’7” |
50cm |
170 - 175 |
5’7” – 5’9” |
54cm |
175 – 180 |
5’9” – 5’11” |
58cm |
180 - 190 |
5’11” – 6’3” |
62cm |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
