(1)Product ID: 242724

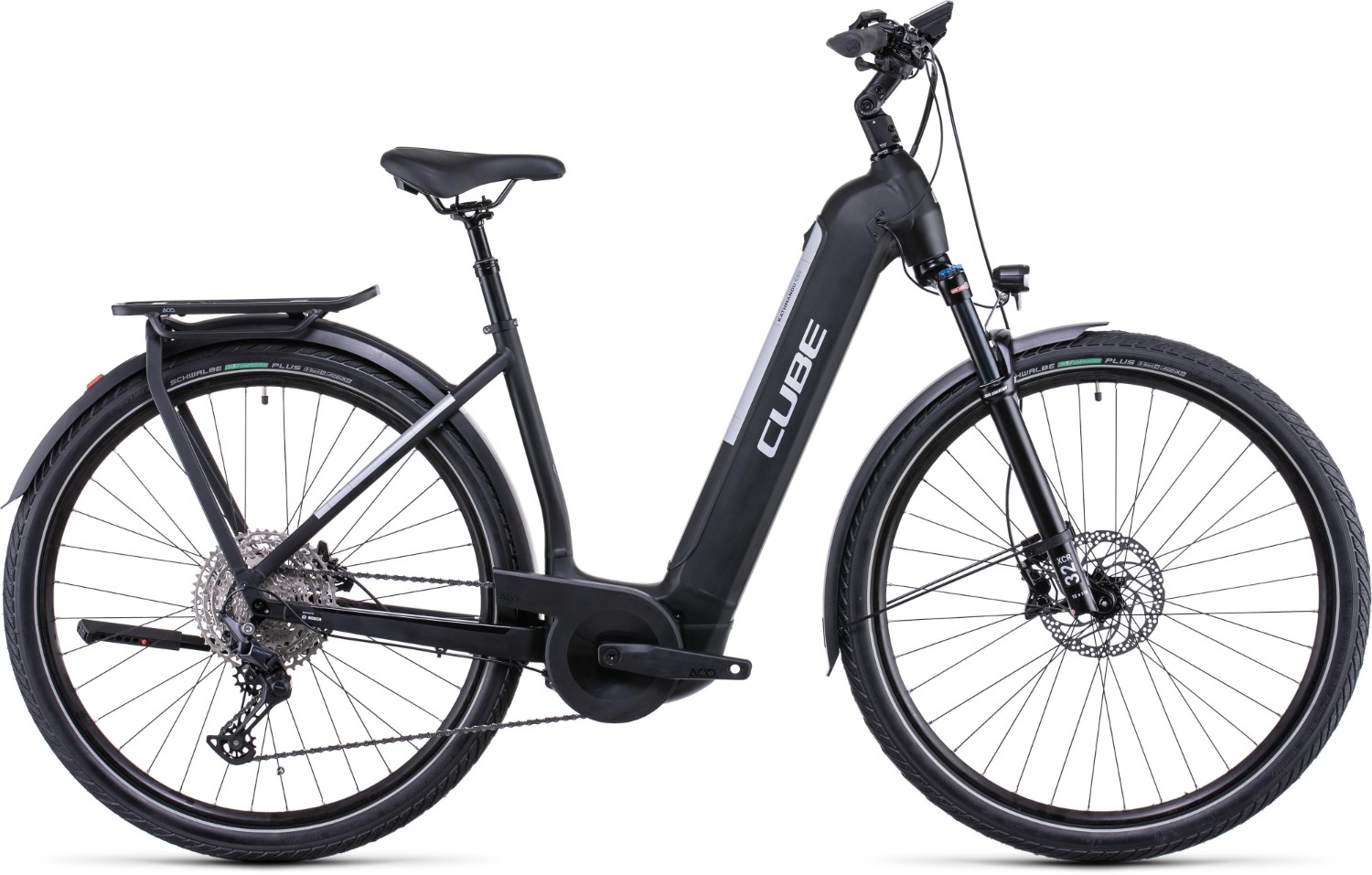

Cube Kathmandu Hybrid EXC Easy Entry 2022 - Electric Hybrid Bike
Drive your adventurous spirit. The all new Kathmandu Hybrid is the fourth generation Bosch-powered tourer tough enough to take on the world. From its integrated luggage carrier to the powerful Bosch drive unit and reliable components, it's got all you need to feed your curiosity.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube) |
| Fork | X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout |
| Headset | M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Bars | CUBE Comfort Trail Bar, 700mm |
| Front Brake | Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180) |
| Rear Brake | Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180) |
| Rear Mech | Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
| Speed | 12 |
| Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
| Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Rear Hub | Shimano FH-MT410-B, 12mm, Boost, Centerlock |
| Front Tyre | Schwalbe Energizer Plus, Performance, Green Guard, 55-622 |
| Rear Tyre | Schwalbe Energizer Plus, Performance, Green Guard, 55-622 |
| Seat Post | CUBE Suspension Seatpost HD, 30.9mm |
| Saddle | Natural Fit Sequence Comfort |
| Chainset | ACID E-Crank, 40T, 175mm (EE: 170mm) |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Pedals | ACID PP Trekking |
| Weight | 26.6kg |
| Battery Size (WH) | Bosch PowerTube 750 |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
| User Interface | Bosch Kiox 300 |
Cube Kathmandu Hybrid 2022 Size Chart
|
Frame Size |
Height (cm) |
Height (feet) |
|
XS (46cm) |
165 - 170 |
5’5” – 5’7” |
|
S (50cm) |
170 - 175 |
5’7” – 5’9” |
|
M (54cm) |
175 – 180 |
5’9” – 5’11” |
|
L (58cm) |
180 - 190 |
5’11” – 6’3” |
|
XL (62cm) |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
