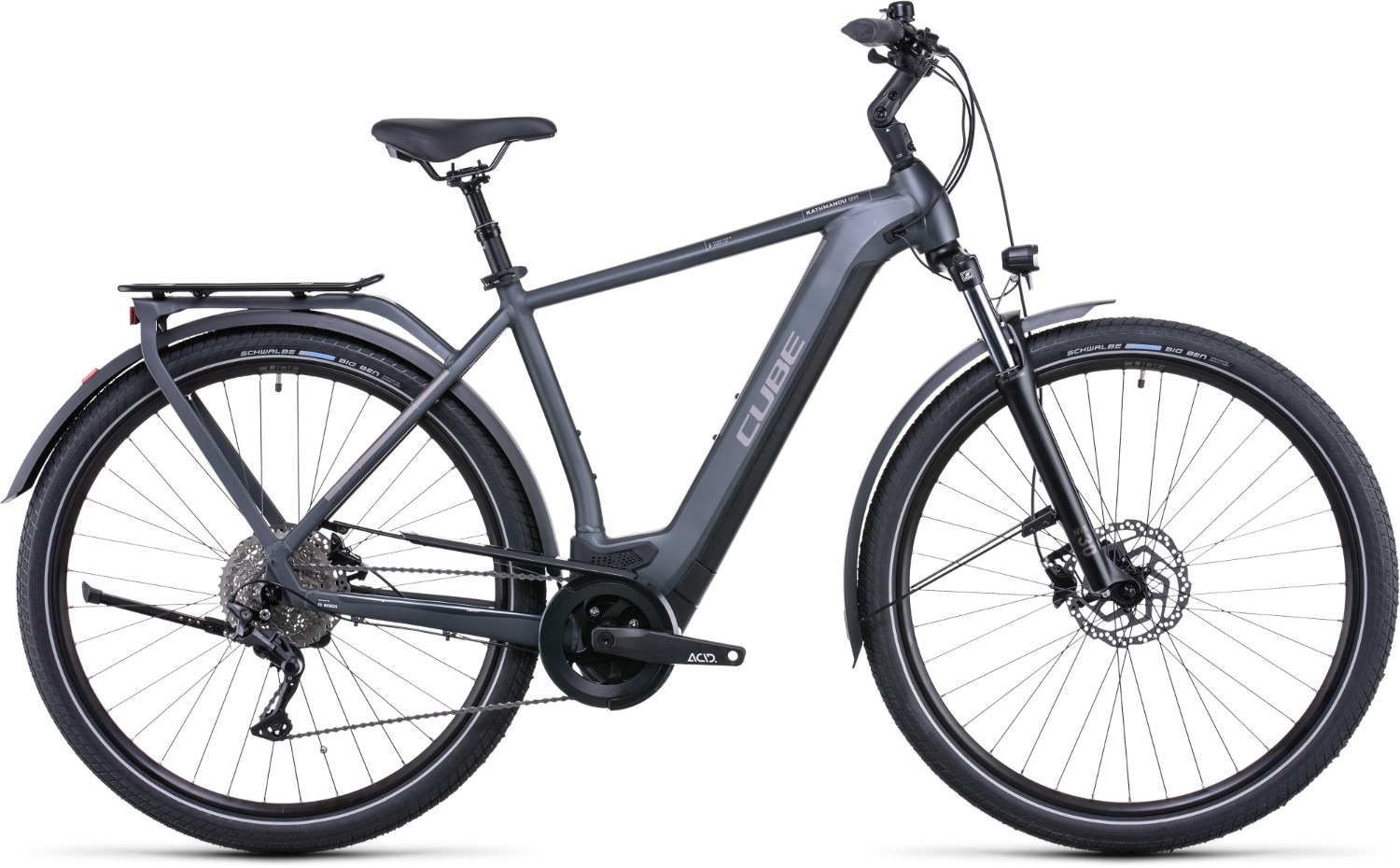

Cube Kathmandu Hybrid One 500 2022 - Electric Hybrid Bike
The Kathmandu Hybrid ONE 625 will help you get to wherever your imagination leads you. Shimano's easy-to-use, legendarily reliable 1x10 gears work seamlessly with Bosch's smooth, fourth-generation drive unit and high-capacity 625Wh battery to make light work of any journey, whether it's across town or across countries. The Suntour suspension fork, suspension seatpost and adjustable stem ensure you're comfortable for the duration. Powerful Shimano hydraulic disc brakes bring you safely to a stop in all weathers. And a full complement of accessories - from lights and mudguards to our neat Integrated Carrier - means you're ready for anything.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0 |
| Fork | SR Suntour NVX30 Coil, 100mm |
| Headset | M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Bars | CUBE Comfort Trail Bar, 700mm |
| Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Rear Mech | Shimano Deore RD-M4120-SGS, 10-Speed |
| Shifters | Shimano Deore SL-M4100, Rapidfire-Plus |
| Speed | 10 |
| Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
| Front Hub | Shimano HB-TX505, QR, Centerlock |
| Rear Hub | Shimano FH-TX505, QR, Centerlock |
| Front Tyre | Schwalbe Big Ben, Performance, 55-622 |
| Rear Tyre | Schwalbe Big Ben, Performance, 55-622 |
| Seat Post | CUBE Suspension Seatpost HD, 30.9mm |
| Saddle | Natural Fit Sequence Comfort |
| Chainset | ACID E-Crank, 38T, 175mm (EE: 170mm) |
| Chain | KMC X10 |
| Cassette | Shimano Deore CS-M4100, 11-42T |
| Pedals | ACID PP Trekking |
| Weight | 26.3kg |
| Battery Size (WH) | Bosch PowerTube 500 |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
| User Interface | Bosch Purion |
Cube Kathmandu Hybrid 2022 Size Chart
|
Frame Size |
Height (cm) |
Height (feet) |
|
XS (46cm) |
165 - 170 |
5’5” – 5’7” |
|
S (50cm) |
170 - 175 |
5’7” – 5’9” |
|
M (54cm) |
175 – 180 |
5’9” – 5’11” |
|
L (58cm) |
180 - 190 |
5’11” – 6’3” |
|
XL (62cm) |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
