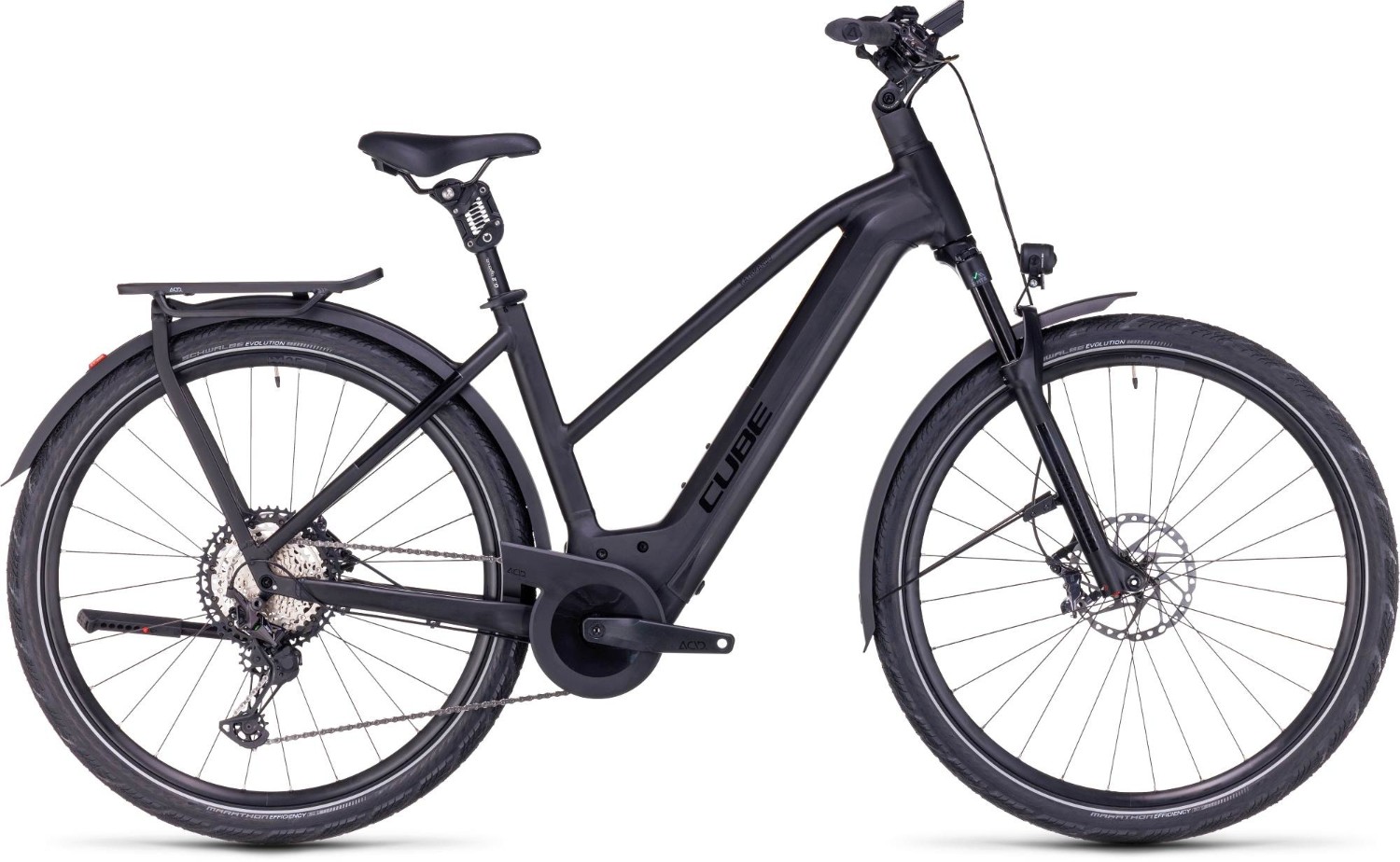

Cube Kathmandu Hybrid SLT 750 Trapeze 2024 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube) |
Fork | RockShox Recon Gold RL Air, Tapered, 15x110mm, 100mm, Lockout |
Headset | M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
Bars | CUBE Comfort Trail Bar, 700mm |
Front Brake | Shimano XT BR-M8120, Hydr. Disc Brake (180/180) |
Rear Brake | Shimano XT BR-M8120, Hydr. Disc Brake (180/180) |
Rear Mech | Shimano XT RD-M8100-SGS ShadowPlus 12-Speed |
Shifters | Shimano Deore SL-M6100-IR, Direct Attach |
Speed | 12 |
Front Tyre | Schwalbe Marathon Efficiency, Super Race, V-Guard, 55-622 |
Rear Tyre | Schwalbe Marathon Efficiency, Super Race, V-Guard, 55-622 |
Seat Post | BySchulz G.2 Parallelogram Suspension Seatpost, 30.9mm |
Saddle | Natural Fit Sequence Comfort |
Chainset | ACID E-Crank, 40T, 175mm (EE: 170mm) |
Chain | Shimano CN-M8100 |
Cassette | Shimano XT CS-M8100, 10-51T |
Pedals | ACID PP Trekking |
Battery Size (WH) | Bosch PowerTube 750 |
Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
User Interface | Bosch Kiox 300 |
Cube Kathmandu Hybrid Size Chart
Frame Size |
Height (cm) |
Height (feet) |
46cm |
165 - 170 |
5’5” – 5’7” |
50cm |
170 - 175 |
5’7” – 5’9” |
54cm |
175 – 180 |
5’9” – 5’11” |
58cm |
180 - 190 |
5’11” – 6’3” |
62cm |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
