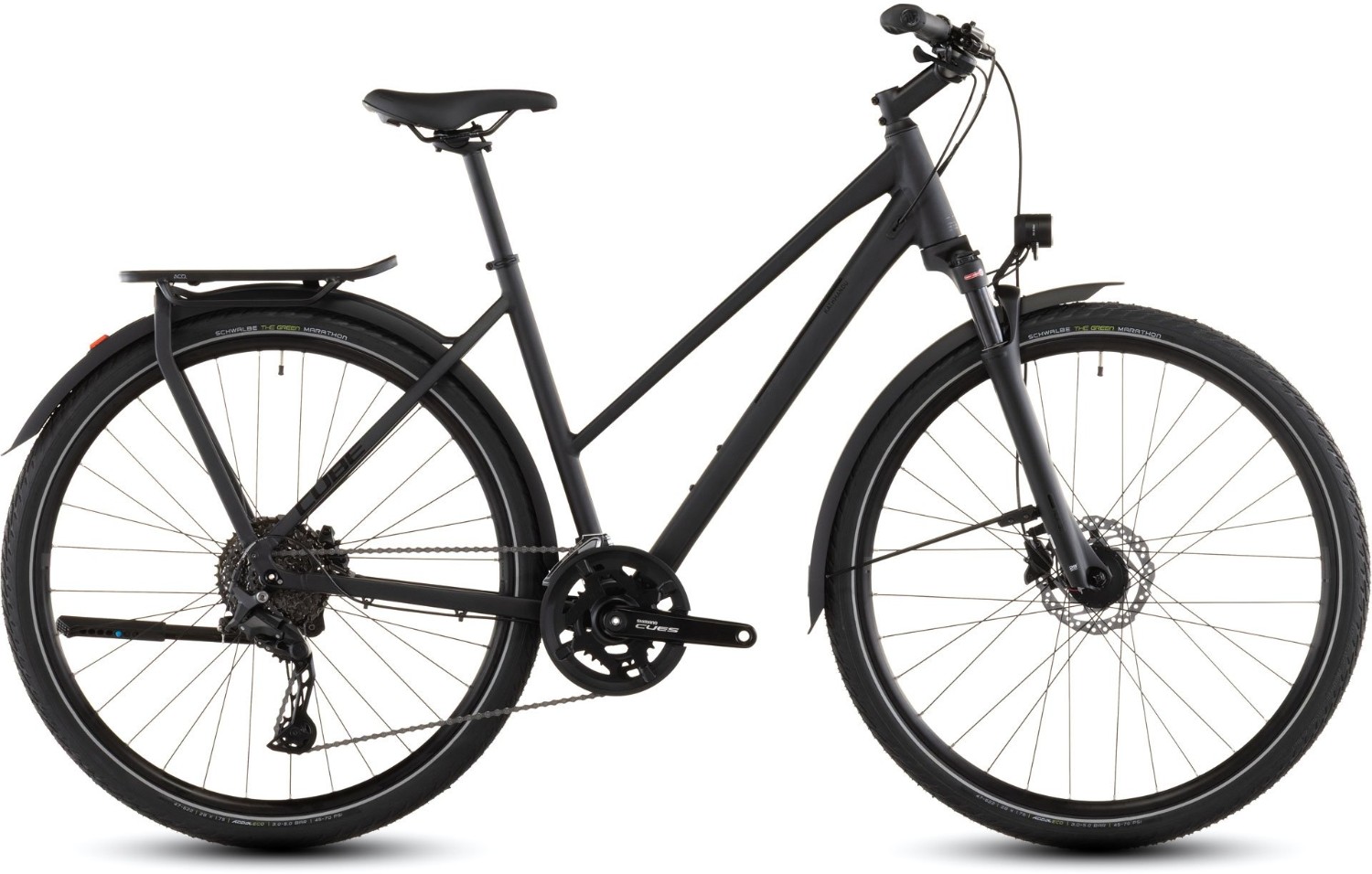

Cube Kathmandu Pro Trapeze 2026 - Hybrid Sports Bike
Frame description
CUBE design expertise is the name of the game for the Kathmandu's Trapeze frame. Its Integrated Carrier 3.0 is designed to work seamlessly with our ACID mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also equipped the rear end with a thru-axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to complement the frame's clean lines, we reckon we've thought of everything. Just don't forget your toothbrush.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted |
| Fork | SR Suntour NCX32 D LO Air, 63mm |
| Headset | VP Integrated, Top 1 1/8", Bottom 1 1/2" |
| Stem | CUBE Performance Stem SLX, 31.8mm |
| Bars | CUBE Comfort Trail Bar, 680mm |
| Front Brake | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160) |
| Rear Brake | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160) |
| Front Mech | Shimano Cues FD-U6010, Top Swing, 31.8mm |
| Rear Mech | Shimano Cues RD-U6020-SGS, 10-Speed |
| Shifters | Shimano Cues SL-U6000, Rapidfire-Plus |
| Speed | 20 |
| Rims | ACID EX25, 32H, Disc, Tubeless Ready |
| Front Hub | Shimano DH-3D37, Hub Dynamo, QR, Centerlock |
| Rear Hub | Shimano FH-TC500-HM, 12mm Through Axle, Centerlock |
| Front Tyre | Schwalbe Marathon Green, Perf, 47-622 |
| Rear Tyre | Schwalbe Marathon Green, Perf, 47-622 |
| Seat Post | CUBE Performance Post, 27.2mm |
| Saddle | ACID Sequence Pro 170 |
| Chainset | Shimano Cues FC-U4010, 46x30T, Chainguard |
| Bottom Bracket | Shimano BB-MT501, 68mm BSA |
| Chain | KMC xGlide |
| Cassette | Shimano Cues CS-LG400, 11-39T |
Typical Hybrid Bike Sizing Chart
Frame Size
XXS - 13"
4'8"
5'1"
XS - 15"
5'1"
5'4"
S - 16"
5'4"
5'7"
M - 18"
5'7"
5'10"
L - 19"
5'10"
6'0"
XL - 20"
6'0"
6'3"
XXL - 21"
6'3"
6'5"
XXXL - 22"
6'5"
6'9"
Hybrid Bike Sizing Chart
|
Height |
Bike size (cm) |
bike size (Inch) |
|
4’8” – 5’1” 143 – 155 cm |
44 – XXS |
13” – XXS |
|
5’1” – 5’4” 155 – 163 cm |
48 – XS |
15” – XS |
|
5’4” – 5’7” 163 – 170 cm |
51 – S |
16” – S |
|
5’7” – 5’10” 170 – 178 cm |
54 – M |
18” – M |
|
5’10” – 6’0” 178 – 183 cm |
56 – L |
19” – L |
|
6’0” – 6’3” 183 – 191 cm |
58 – XL |
20” – XL |
|
6’3” – 6’5” 191 – 196 cm |
60 – XXL |
21” – XXL |
|
6’5” – 6’9” 196 – 205 cm |
62 - XXXL |
22” – XXXL |
