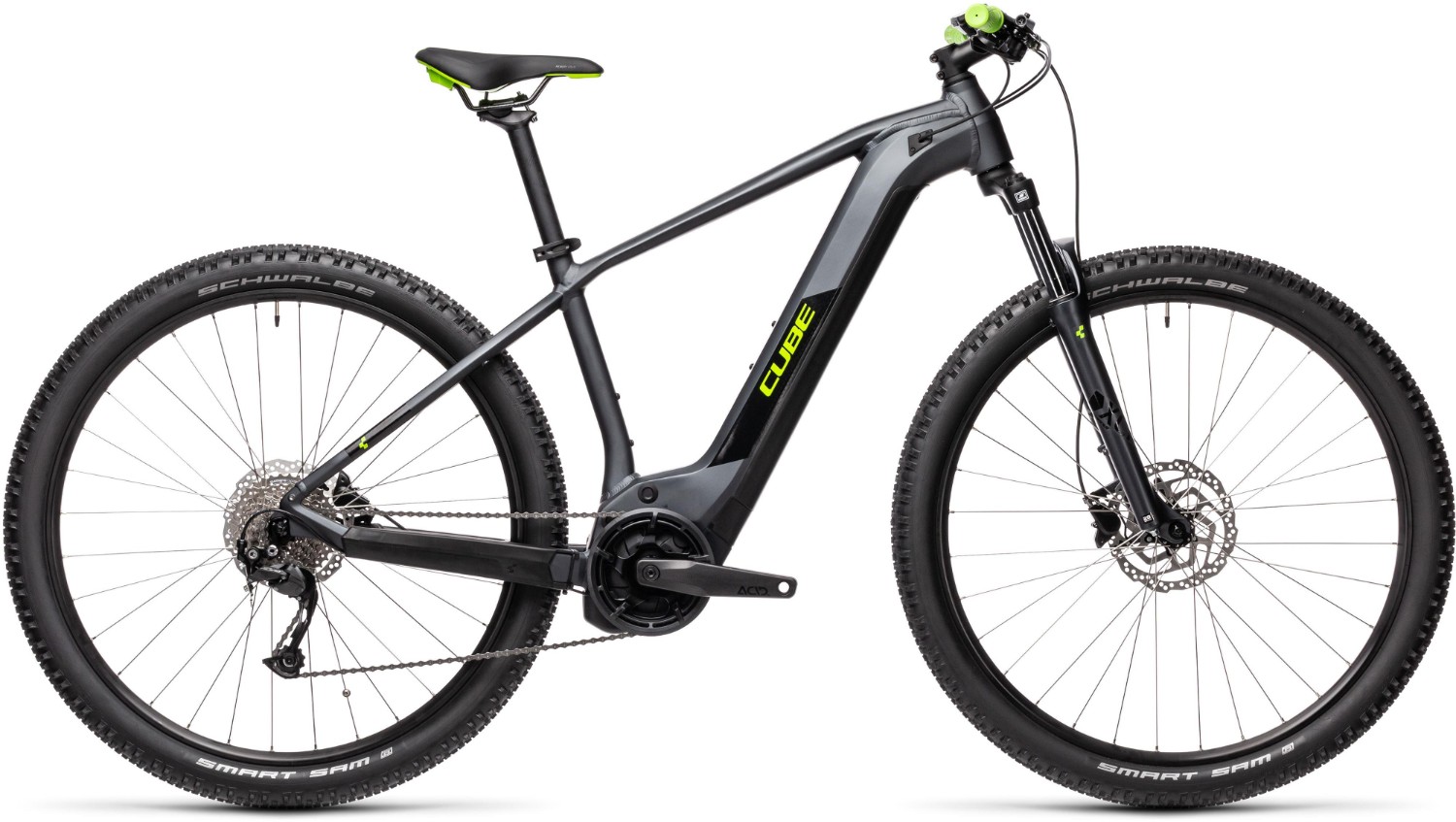

Cube Reaction Hybrid Performance 500 2021 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
Fork | SR Suntour XCM ATB Coil, 100mm |
Headset | 27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" |
Stem | CUBE Performance Stem Pro, 31.8mm |
Bars | CUBE Rise Trail Bar, 720mm |
Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Mech | Shimano RD-M3100-SGS, 9-Speed |
Shifters | Shimano SL-M3100-R, Rapidfire-Plus |
Speed | 9 |
Rims | CUBE EX23, 32H, Disc, Tubeless Ready |
Front Hub | Shimano HB-TX505, QR, Centerlock |
Rear Hub | Shimano FH-TX505, QR, Centerlock |
Front Tyre | Schwalbe Smart Sam, K-Guard, 2.35 |
Rear Tyre | Schwalbe Smart Sam, K-Guard, 2.35 |
Seat Post | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence |
Chainset | ACID E-Crank, 38T, 175mm |
Chain | KMC X9 |
Cassette | Shimano CS-HG201, 11-36T |
Pedals | CUBE PP MTB |
Weight | 23.1 |
Battery Size (WH) | PowerTube 500 |
Motor | Bosch Drive Unit Performance GEN3 (65Nm)Bosch Drive Unit Performance GEN3 (65Nm) |
User Interface | Purion |
Cube Reaction Hybrid 2021 Size Chart
Size |
Height (cm) |
Height (in) |
S - 15" |
160 - 170 |
5'5" - 5'7" |
M - 17" |
168 - 175 |
5'6" - 5'9" |
L - 19" |
175 - 185 |
5'9" - 6'1" |
XL - 21" |
185 - 190 |
6'1" - 6'3" |
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid 2021 Geometry Chart
|
S - 15" |
M- 17" |
L-19" |
XL-21" |
XXL-23" |
SEAT TUBE |
375 |
405 |
450 |
495 |
545 |
SEAT TUBE CENTER-CENTER |
316 |
347 |
393 |
439 |
490 |
TOP TUBE HORIZONTAL |
580 |
580 |
600 |
620 |
640 |
SEAT TUBE ANGLE |
74 |
74 |
74 |
74 |
74 |
HEAD TUBE ANGLE |
67 |
68 |
69 |
69 |
69 |
CHAIN STAYS |
460 |
460 |
460 |
460 |
460 |
HEAD TUBE |
110 |
115 |
120 |
131 |
146 |
WHEELBASE |
1097 |
1141 |
1150 |
1170 |
1191 |
STANDOVER HEIGHT |
743 |
765 |
799 |
832 |
870 |
REACH |
406 |
403 |
420 |
437 |
452 |
STACK |
618 |
628 |
638 |
648 |
662 |
WHEELSIZE |
29 |
29 |
29 |
29 |
29 |
BB-HEIGHT TO HUB |
-65 |
-65 |
-65 |
-65 |
-65 |
