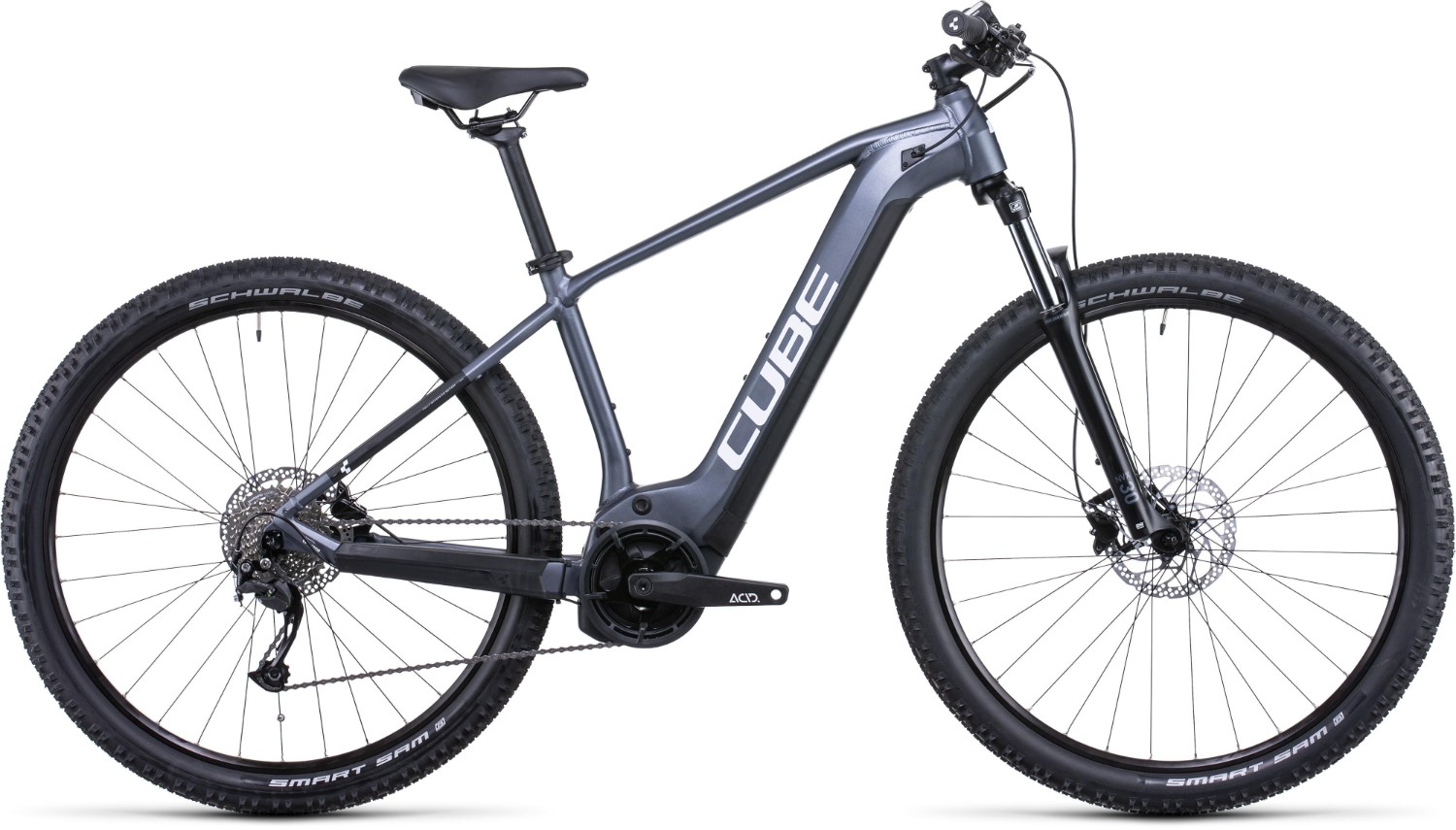

Cube Reaction Hybrid Performance 500 2022 - Electric Mountain Bike
Take the road less travelled and see where it takes you. The Cube Reaction Hybrid Performance electric MTB takes the power of Bosch's third-generation drive system and adds sophisticated PowerTube design and easy-to-use Shimano 9-speed gears. A wider saddle and lock-on grips with a 100m Suntour suspension fork ensure you're comfortable for the long haul. And we fitted Shimano hydraulic disc brakes for safe, all-weather control. Follow your curiosity...
Key Features:
- Shimano brakes for effortless braking no matter the weather
- Shimano gears gives you precise shifting every time
- 100mm Suntour Suspension forks to smooth out the ride
- Sizes: S, M, L, XL, XXL
- Colours: Polarsilver/Blue and Metallicgrey/White
It's not for nothing that 1980s cycle couriers in the city adopted the mountain bike for the urban jungle. With the Cube Reaction Hybrid Performance Allroad we've channelled that spirit of versatility into a Bosch-equipped e-bike that's equally at home commuting during the week or exploring at the weekend. Bosch third-generation power and Shimano 9-speed gears are all you need for easy pedalling. The 100mm suspension fork makes light work of rooty trails and potholes alike, while a comfortable saddle and grips ensure day-long comfort. Shimano hydraulic disc brakes add weather-proof practicality. It's all set for any adventure - anywhere, anytime.
Form follows function. The Cube Reaction Hybrid Performance Allroad Ebike’s elegant PowerTube frame conceals a large-capacity Bosch battery inside the down tube for sleek looks and better protection from the elements. Internally routed cables match the clean design aesthetic, offering long-lasting, low-maintenance gear-shifting accuracy. A Trapeze frame option gives riders who are more comfortable with a lower top tube an easy access option, without compromising performance. And, with Size Split, you can be assured of finding the perfect fit.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
Fork | SR Suntour NVX30 Coil, 100mm |
Headset | 27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Performance Stem Pro, 31.8mm |
Bars | CUBE Rise Trail Bar, 720mm |
Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Mech | Shimano RD-M3100-SGS, 9-Speed |
Shifters | Shimano SL-M3100-R, Rapidfire-Plus |
Speed | 9 |
Rims | Rodi Blackrock 23, 32H, Disc, Tubeless Ready |
Front Hub | Shimano HB-TX505, QR, Centerlock |
Rear Hub | Shimano FH-TX505, QR, Centerlock |
Front Tyre | Schwalbe Smart Sam, Active, 2.35 |
Rear Tyre | Schwalbe Smart Sam, Active, 2.35 |
Seat Post | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence |
Chainset | ACID E-Crank, 175mm, 38T |
Chain | KMC X9 |
Cassette | Shimano CS-HG201, 11-36T |
Pedals | CUBE PP MTB |
Weight | 23.2kg |
Battery Size (WH) | Bosch PowerTube 500 |
Motor | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
User Interface | Bosch Purion |
Cube Reaction Hybrid Size Chart
Size |
Height (cm) |
Height (in) |
S - 15" |
160 - 170 |
5'5" - 5'7" |
M - 17" |
168 - 175 |
5'6" - 5'9" |
L - 19" |
175 - 185 |
5'9" - 6'1" |
XL - 21" |
185 - 190 |
6'1" - 6'3" |
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid Geometry Chart
|
S - 15" |
M- 17" |
L-19" |
XL-21" |
XXL-23" |
SEAT TUBE |
375 |
405 |
450 |
495 |
545 |
SEAT TUBE CENTER-CENTER |
316 |
347 |
393 |
439 |
490 |
TOP TUBE HORIZONTAL |
580 |
580 |
600 |
620 |
640 |
SEAT TUBE ANGLE |
74 |
74 |
74 |
74 |
74 |
HEAD TUBE ANGLE |
67 |
68 |
69 |
69 |
69 |
CHAIN STAYS |
460 |
460 |
460 |
460 |
460 |
HEAD TUBE |
110 |
115 |
120 |
131 |
146 |
WHEELBASE |
1097 |
1141 |
1150 |
1170 |
1191 |
STANDOVER HEIGHT |
743 |
765 |
799 |
832 |
870 |
REACH |
406 |
403 |
420 |
437 |
452 |
STACK |
618 |
628 |
638 |
648 |
662 |
WHEELSIZE |
29 |
29 |
29 |
29 |
29 |
BB-HEIGHT TO HUB |
-65 |
-65 |
-65 |
-65 |
-65 |
