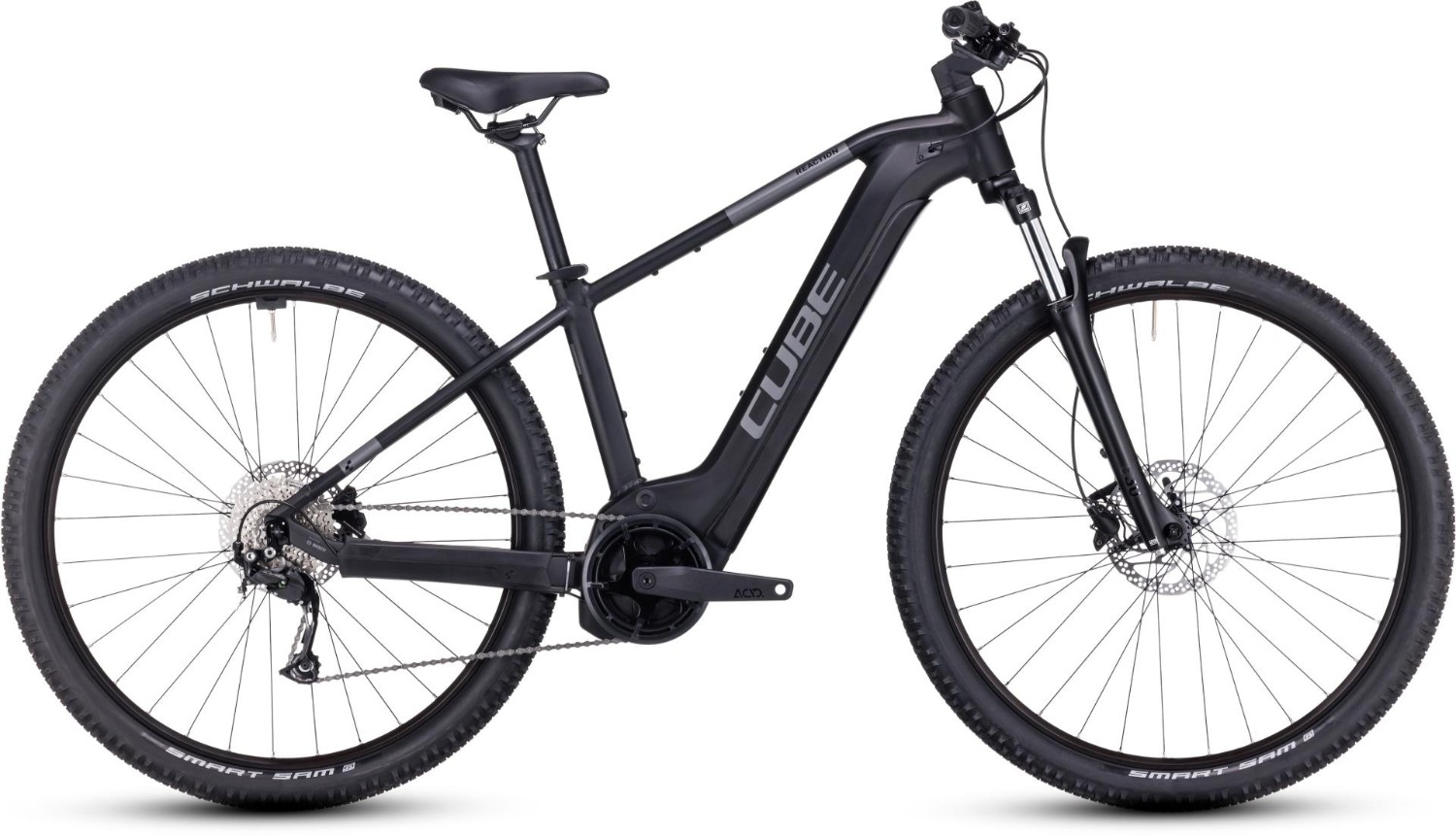

Cube Reaction Hybrid Performance 500 2024 - Electric Mountain Bike
The Cube Reaction Hybrid Performance 500 calls for trail enthuasiasts with Bosch's Performance Line motor, offering 75Nm torque for an effortless ride. The aluminum superlite frame, with integrated cable routing, accommodates a 625Wh Bosch Powertube battery, ensuring worry-free extended journeys. A 100mm suspension fork, Shimano 9-speed drivetrain, and Shimano hydraulic disc brakes deliver a comfortable and reliable riding experience. The Trapeze frame option and SizeSplit ensure a perfect fit for every rider.
Key Features:
- Frame: Aluminium superlite, Gravity casting, Agile Ride Geometry, Integrated Battery, Kickstand/Fender/Carrier Mounting Parts.
- Front Suspension: Sr Suntour NVX30 Coil, 100mm Travel.
- Drivetrain: Shimano 9-speed, Shimano SL-M3100-R Rapidfire-Plus Shifters.
- Brakes: Shimano BR-MT200/UR300 Hydraulic Disc Brake (180/180).
- Wheels: Rodi Blackrock 23, 32h, Tubeless Ready, Schwalbe Smart Sam 2.35 Tyres.
- Standout Feature: Bosch Performance Line Motor, 0% APR Finance Available.
Drive Information:
- Motor: Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System.
- Battery: Bosch Powertube 500 (Wh).
- User Interface: Bosch LED Remote.
Equipped with Shimano 9-speed gears and rapid-shifting SL-M3100-R shifters, this e-bike guarantees precise control. The Shimano hydraulic disc brakes, with 180mm rotors, provide reliable stopping power in any condition. The 100mm suspension fork enhances comfort on diverse terrains.
The innovative Bosch LED remote and Bosch Powertube 500 battery, integrated within the frame, deliver a smart and enduring power system.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Full Integrated Battery, Internal Cable Routing, Kickstand/Fender/Carrier Mounting Parts |
| Fork | SR Suntour NVX30 Coil, 100mm |
| Headset | ACROS AZF-1031, 1 1/8" straight, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem E-MTB, 31.8mm |
| Bars | CUBE Rise Trail Bar Pro, 740mm |
| Front Brake | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180/180) |
| Rear Brake | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180/180) |
| Brake Lever | Shimano BR-MT200 |
| Rear Mech | Shimano RD-M3100-SGS, 9-Speed |
| Shifters | Shimano SL-M3100-R, Rapidfire-Plus |
| Speed | 9 |
| Rims | Rodi Blackrock 23, 32H, Disc, Tubeless Ready |
| Front Hub | Shimano HB-TX505, QR, Centerlock |
| Rear Hub | Shimano FH-TX505, QR, Centerlock |
| Front Tyre | Schwalbe Smart Sam, Active, 2.35 |
| Rear Tyre | Schwalbe Smart Sam, Active, 2.35 |
| Seat Post | CUBE Performance Post, 30.9mm |
| Saddle | Natural Fit Sequence |
| Chainset | ACID E-Crank, 38T, 175mm |
| Bottom Bracket | Integrated |
| Chain | KMC X9 |
| Cassette | Shimano CS-HG201, 11-36T |
| Pedals | ACID PP MTB |
| Weight | 23.2kg |
| Battery Size (WH) | Bosch PowerTube 500 |
| Motor | Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System |
| User Interface | Bosch LED Remote |
Cube Reaction Hybrid Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S - 15" |
160 - 170 |
5'5" - 5'7" |
|
M - 17" |
168 - 175 |
5'6" - 5'9" |
|
L - 19" |
175 - 185 |
5'9" - 6'1" |
|
XL - 21" |
185 - 190 |
6'1" - 6'3" |
|
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
