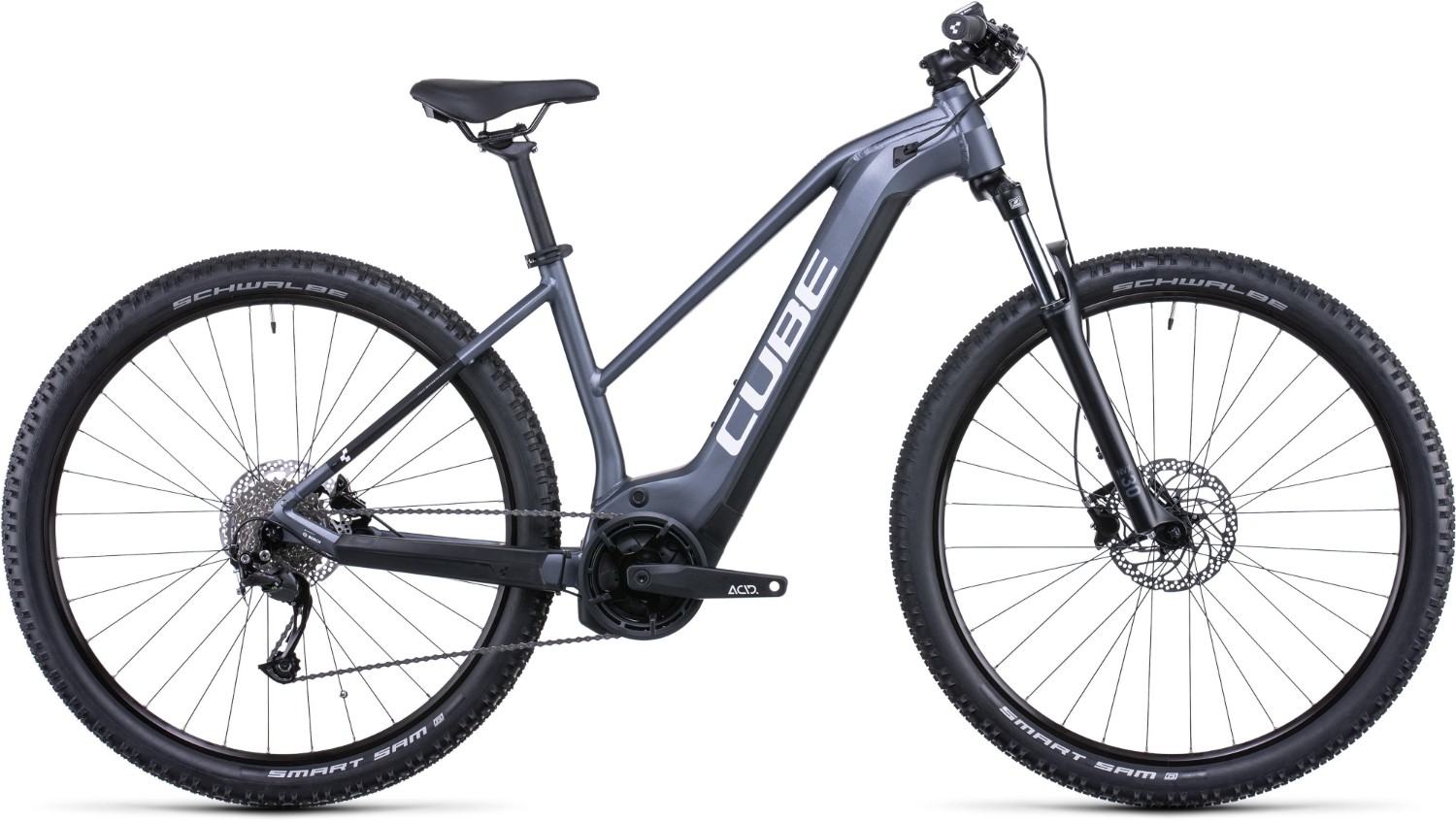

Cube Reaction Hybrid Performance 625 Trapeze 2022 - Electric Mountain Bike
Take the road less travelled and see where it takes you. The Cube Reaction Hybrid Performance Electric MTB takes the power of Bosch's third-generation drive system and adds sophisticated PowerTube design and easy-to-use Shimano 9-speed gears. A wider saddle and lock-on grips with a 100mm Suntour suspension fork ensure you're comfortable for the long haul. And we fitted Shimano hydraulic disc brakes for safe, all-weather control. Follow your curiosity...
Key Features:
- Shimano brakes give you the confidence to stop in any conditions
- Shimano drivetrain gives you smooth and consistent gear changes when you need it the most
- A large 625wh Bosch PowerTube battery will keep you going, even on the longest rides
- Schwalbe Smart Sam Tyres give you low rolling resistance, making it easier to maintain your speed
- Sizes: S, L
- Colours: Metallicgrey/White and Polarsilver/Blue
- The Cube Reaction Hybrid Performance 625 is available with 0% APR Finance.
Form follows function. The Cube Reaction Hybrid Performance Electric Mountain bike’s elegant PowerTube frame conceals a large-capacity Bosch battery inside the down tube for sleek looks and better protection from the elements. Internally routed cables match the clean design aesthetic, offering long-lasting, low-maintenance gear-shifting accuracy. A Trapeze frame option gives riders who are more comfortable with a lower top tube an easy access option, without compromising performance. And, with Size Split, you can be assured of finding the perfect fit.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
Fork | SR Suntour NVX30 Coil, 100mm |
Headset | 27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Performance Stem Pro, 31.8mm |
Bars | CUBE Rise Trail Bar, 720mm |
Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Mech | Shimano RD-M3100-SGS, 9-Speed |
Shifters | Shimano SL-M3100-R, Rapidfire-Plus |
Speed | 9 |
Rims | Rodi Blackrock 23, 32H, Disc, Tubeless Ready |
Front Hub | Shimano HB-TX505, QR, Centerlock |
Rear Hub | Shimano FH-TX505, QR, Centerlock |
Front Tyre | Schwalbe Smart Sam, Active, 2.35 |
Rear Tyre | Schwalbe Smart Sam, Active, 2.35 |
Seat Post | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence |
Chainset | ACID E-Crank, 175mm, 38T |
Chain | KMC X9 |
Cassette | Shimano CS-HG201, 11-36T |
Pedals | CUBE PP MTB |
Weight | 23.7kg |
Battery Size (WH) | Bosch PowerTube 625 |
Motor | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
User Interface | Bosch Purion |
Cube Reaction Hybrid Size Chart
Size |
Height (cm) |
Height (in) |
S - 15" |
160 - 170 |
5'5" - 5'7" |
M - 17" |
168 - 175 |
5'6" - 5'9" |
L - 19" |
175 - 185 |
5'9" - 6'1" |
XL - 21" |
185 - 190 |
6'1" - 6'3" |
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid Geometry Chart
|
S - 15" |
M- 17" |
L-19" |
XL-21" |
XXL-23" |
SEAT TUBE |
375 |
405 |
450 |
495 |
545 |
SEAT TUBE CENTER-CENTER |
316 |
347 |
393 |
439 |
490 |
TOP TUBE HORIZONTAL |
580 |
580 |
600 |
620 |
640 |
SEAT TUBE ANGLE |
74 |
74 |
74 |
74 |
74 |
HEAD TUBE ANGLE |
67 |
68 |
69 |
69 |
69 |
CHAIN STAYS |
460 |
460 |
460 |
460 |
460 |
HEAD TUBE |
110 |
115 |
120 |
131 |
146 |
WHEELBASE |
1097 |
1141 |
1150 |
1170 |
1191 |
STANDOVER HEIGHT |
743 |
765 |
799 |
832 |
870 |
REACH |
406 |
403 |
420 |
437 |
452 |
STACK |
618 |
628 |
638 |
648 |
662 |
WHEELSIZE |
29 |
29 |
29 |
29 |
29 |
BB-HEIGHT TO HUB |
-65 |
-65 |
-65 |
-65 |
-65 |
